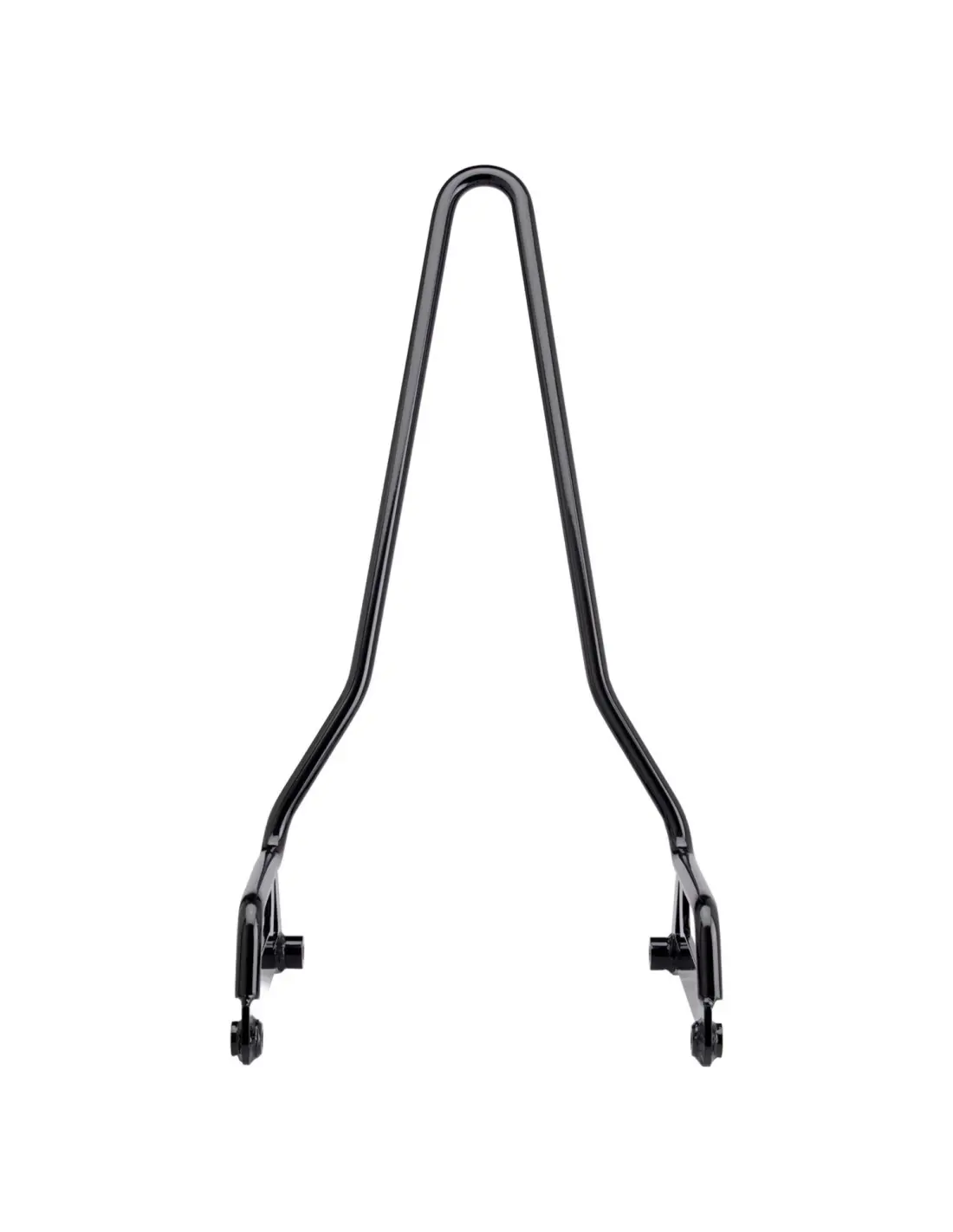

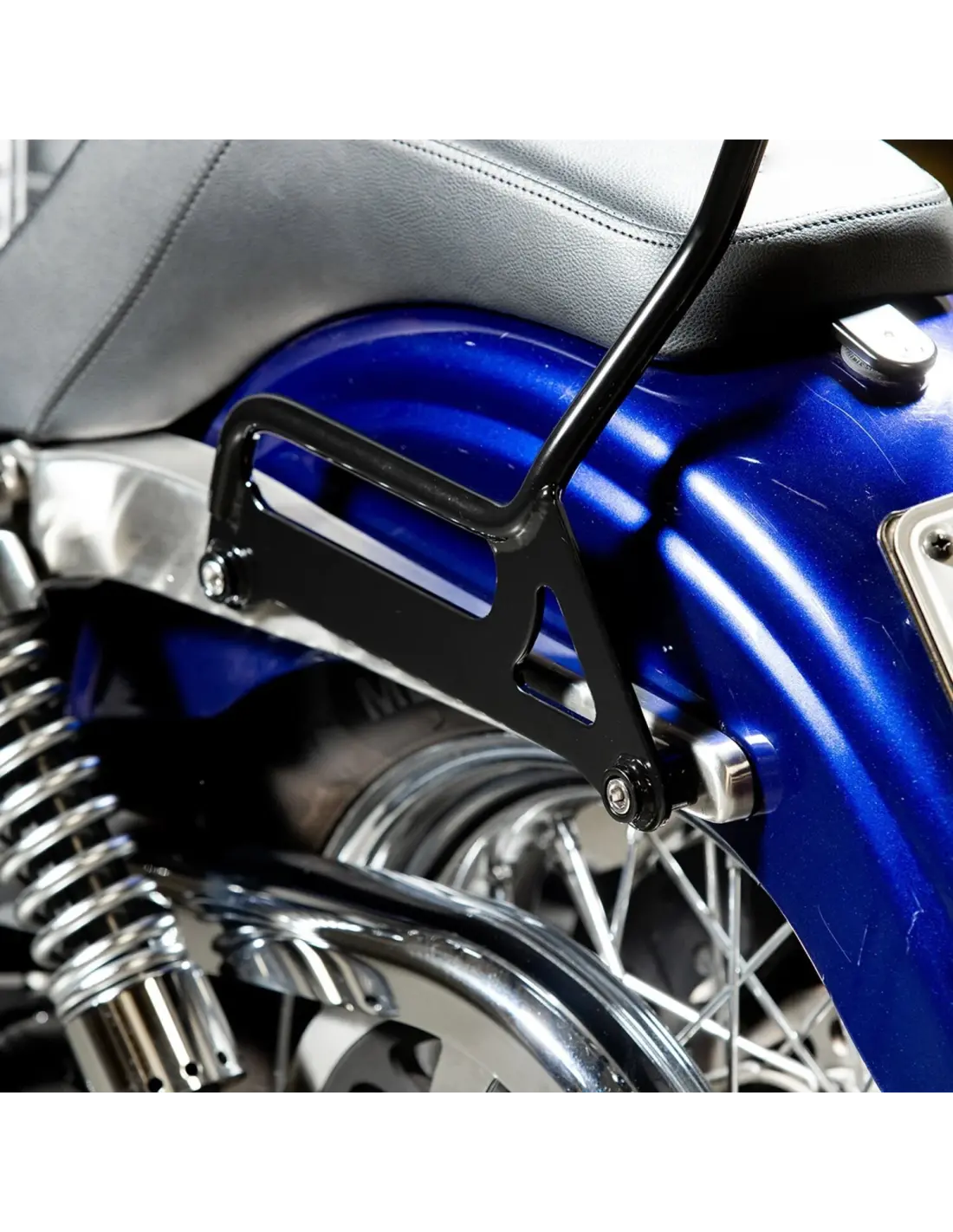

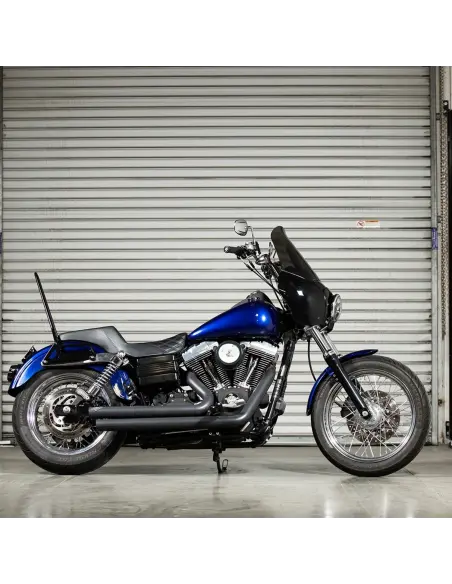

Biltwell EXFIL black sissy bar for Harley-Davidson Dyna
Expand the cargo possibilities of your Harley-Davidson Dyna and enhance its custom look with the Biltwell EXFIL black sissy bar. Its tall and robust design provides practical attachment points for bags, duffels, and luggage, making it an especially useful accessory for rides, trips, and chopper or bobber style builds.
It is made of 16 mm diameter solid cold-rolled steel bar and 5 mm laser-cut steel side plates. The structure is TIG welded and finished with a glossy black powder coat that gives it a clean and bold appearance.
Main features
- Biltwell sissy bar EXFIL model.
- Glossy black finish with powder coating.
- Compatible with Harley-Davidson Dyna 2006-2017.
- 16 mm outer diameter solid cold-rolled steel bar.
- 5 mm laser-cut steel side plates.
- TIG welded construction.

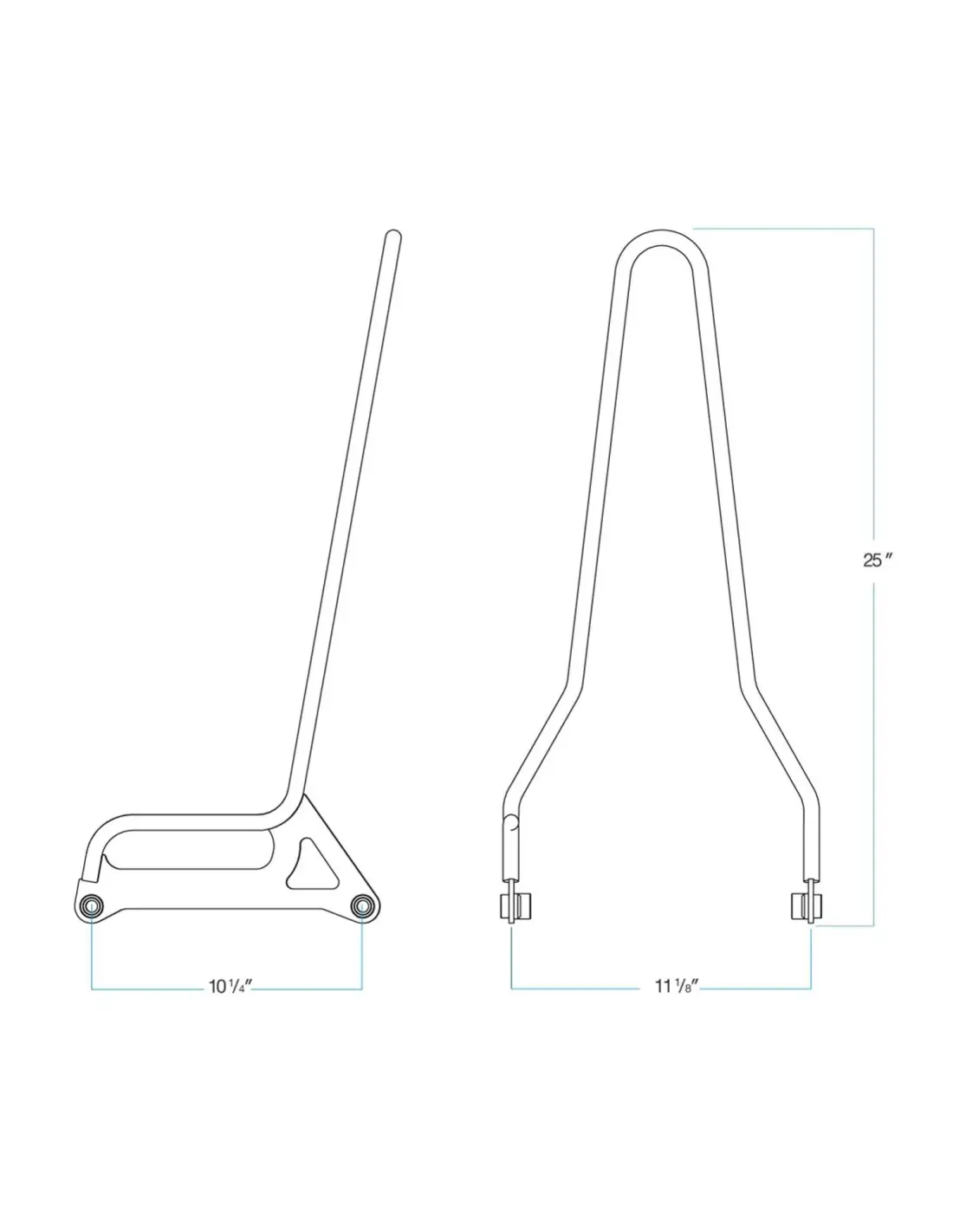

- Height of 64 cm from the mounting points to the top.
- Integrated tie-down points on both sides.
- Horizontal bars usable as attachment points for straps or hooks.
- Mounting bushings machined by CNC lathe.
- Design prepared to accommodate recessed hardware.
- Includes stainless steel Allen bolts.
Technical data
| Product |
Sissy bar |
| Brand |
Biltwell |
| Model |
EXFIL |
| Color |
Black |
| Finish |
Glossy black powder coat |
| Main material |
Steel |
| Main bar |
16 mm outer diameter solid cold-rolled steel |
| Side plates |
5 mm thick laser-cut steel |
| Welding |
TIG |
| Height |
64 cm from the mounting points to the top |
| Tie-down points |
Integrated on both sides and horizontal bars |
| Mounting bushings |
Machined by CNC lathe |
| Included hardware |
Stainless steel Allen bolts |
| Compatible brand |
Harley-Davidson |
| Compatible family |
Dyna |
| Compatible years |
2006-2017 |
Ready to carry luggage
The Biltwell EXFIL features integrated tie-down points on both sides to facilitate the attachment of bags, duffels, and other items using straps, belts, or hooks.
The horizontal bars also serve as additional attachment points, allowing you to adapt the placement of the load according to its size and shape.

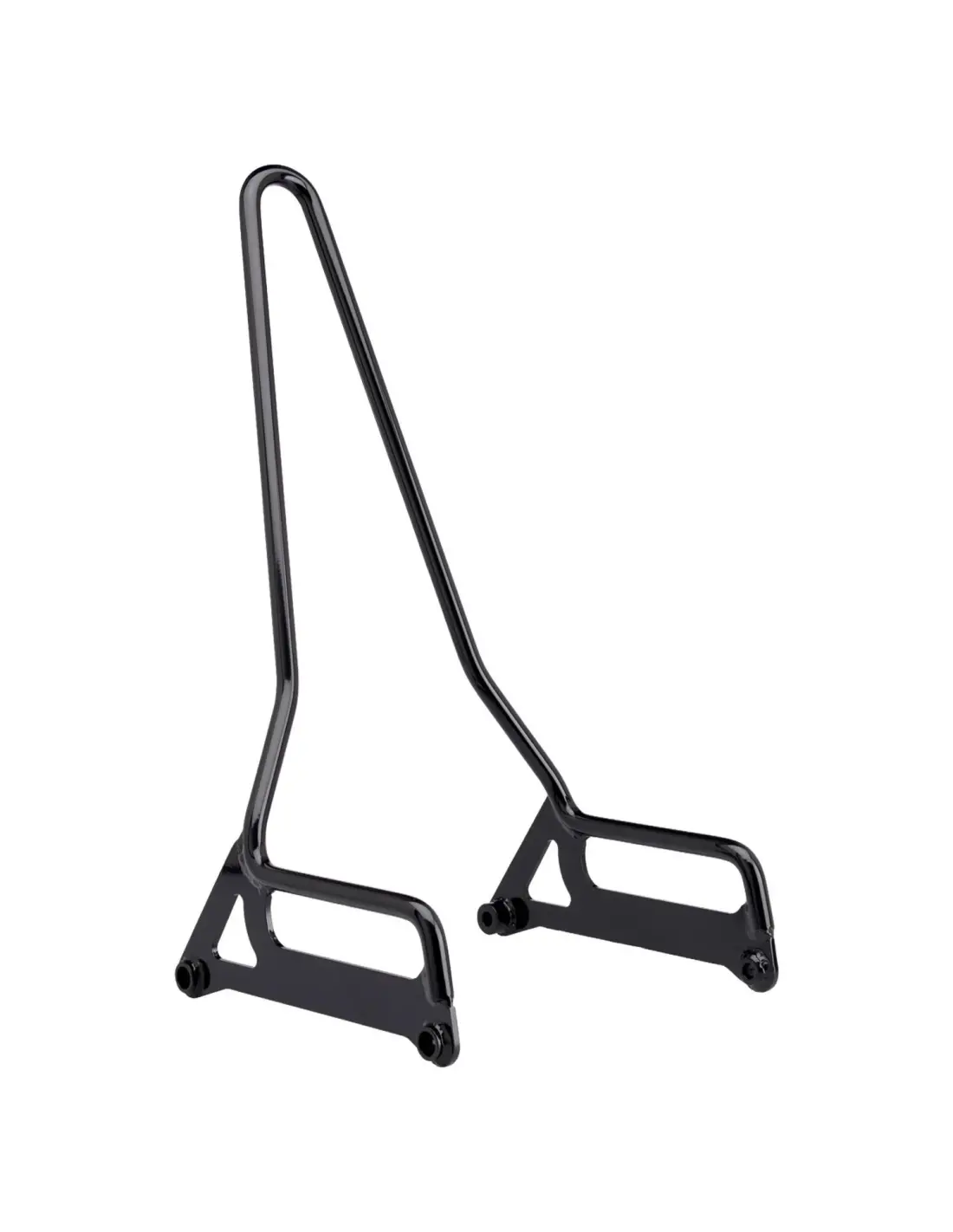

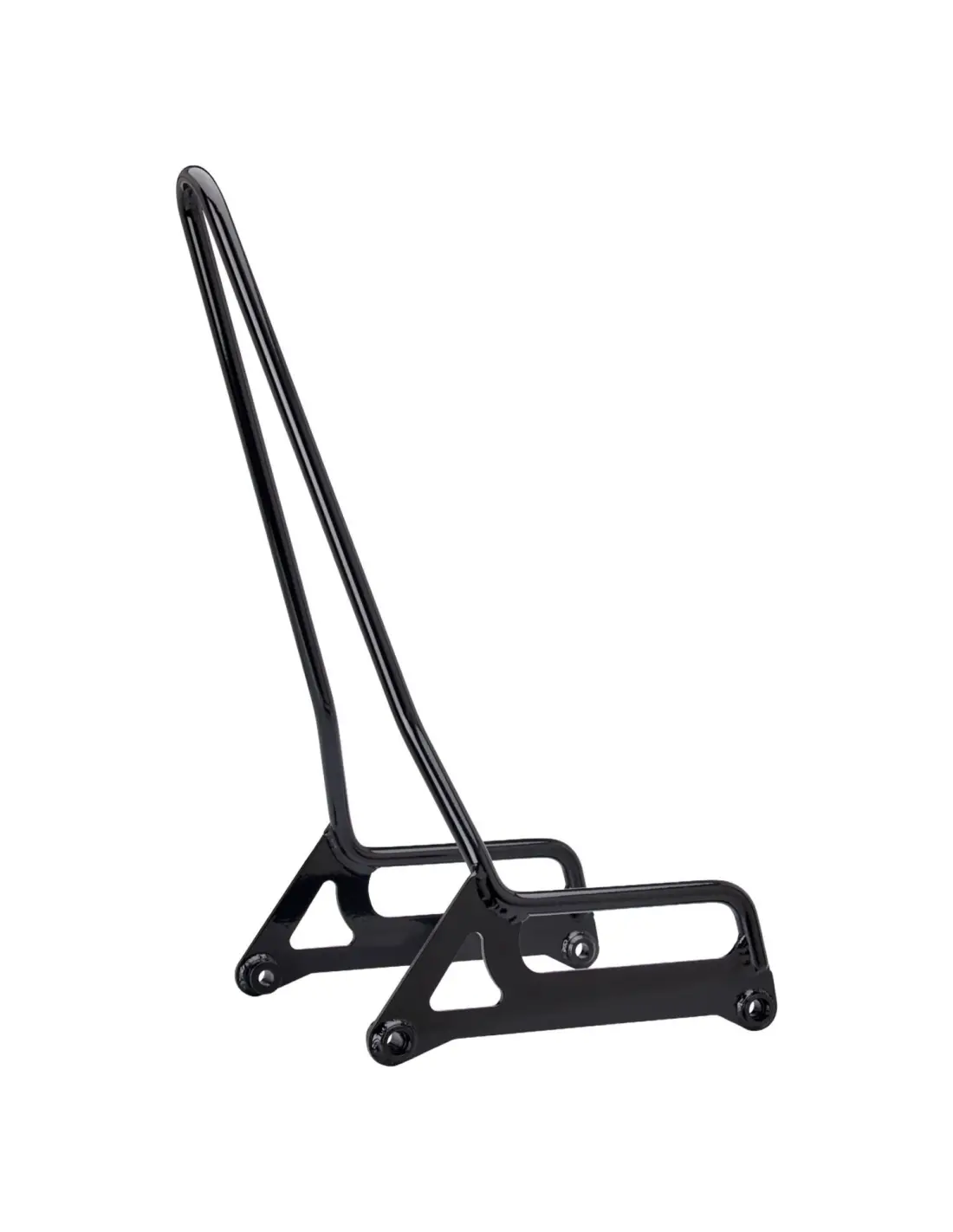

Robust steel construction
The main structure uses 16 mm diameter solid steel bar combined with 5 mm side plates. The TIG welded joints offer a solid construction and a clean finish.
The mounting bushings are CNC machined and designed to accommodate recessed hardware, maintaining a visually neat installation.
Glossy black finish

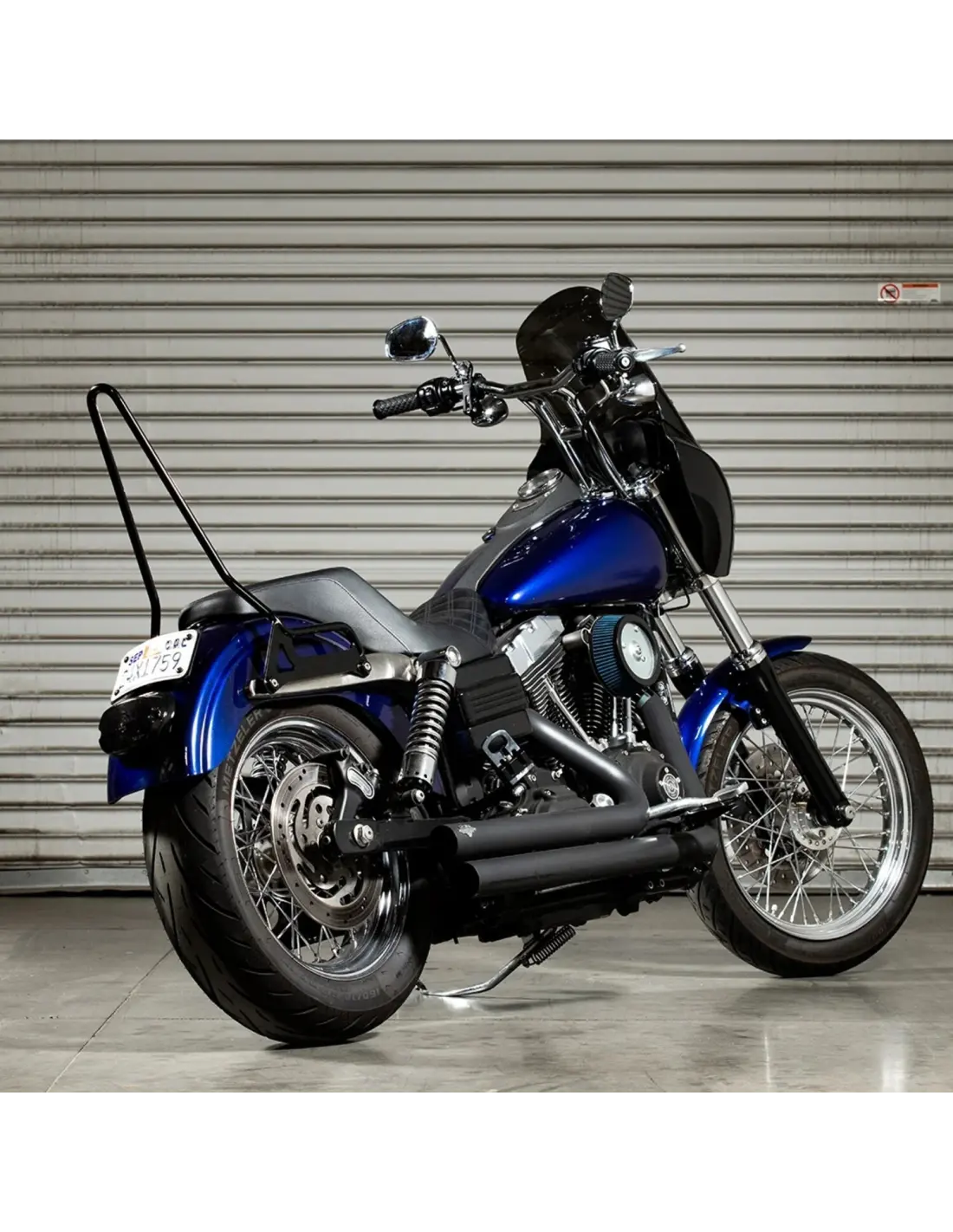

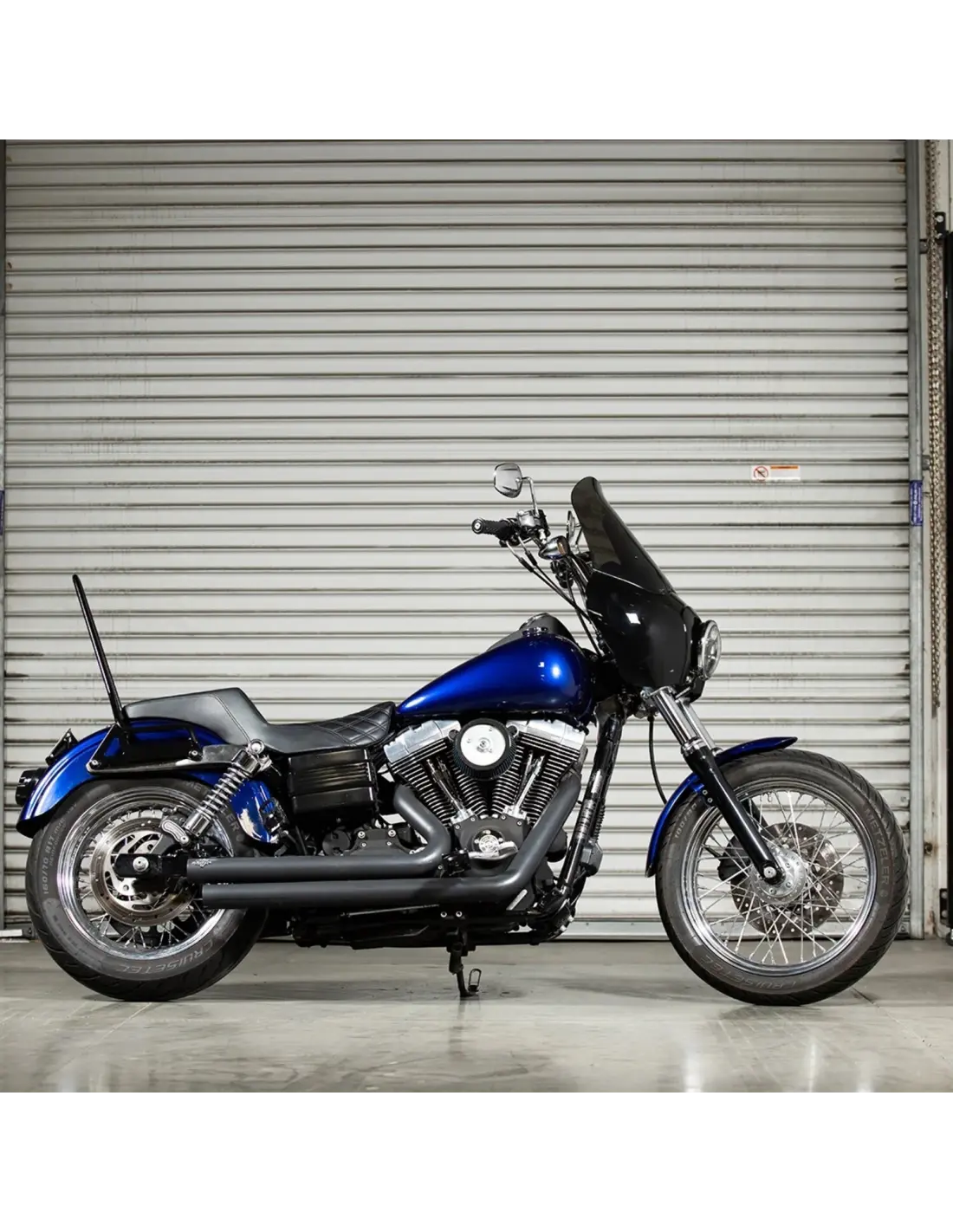

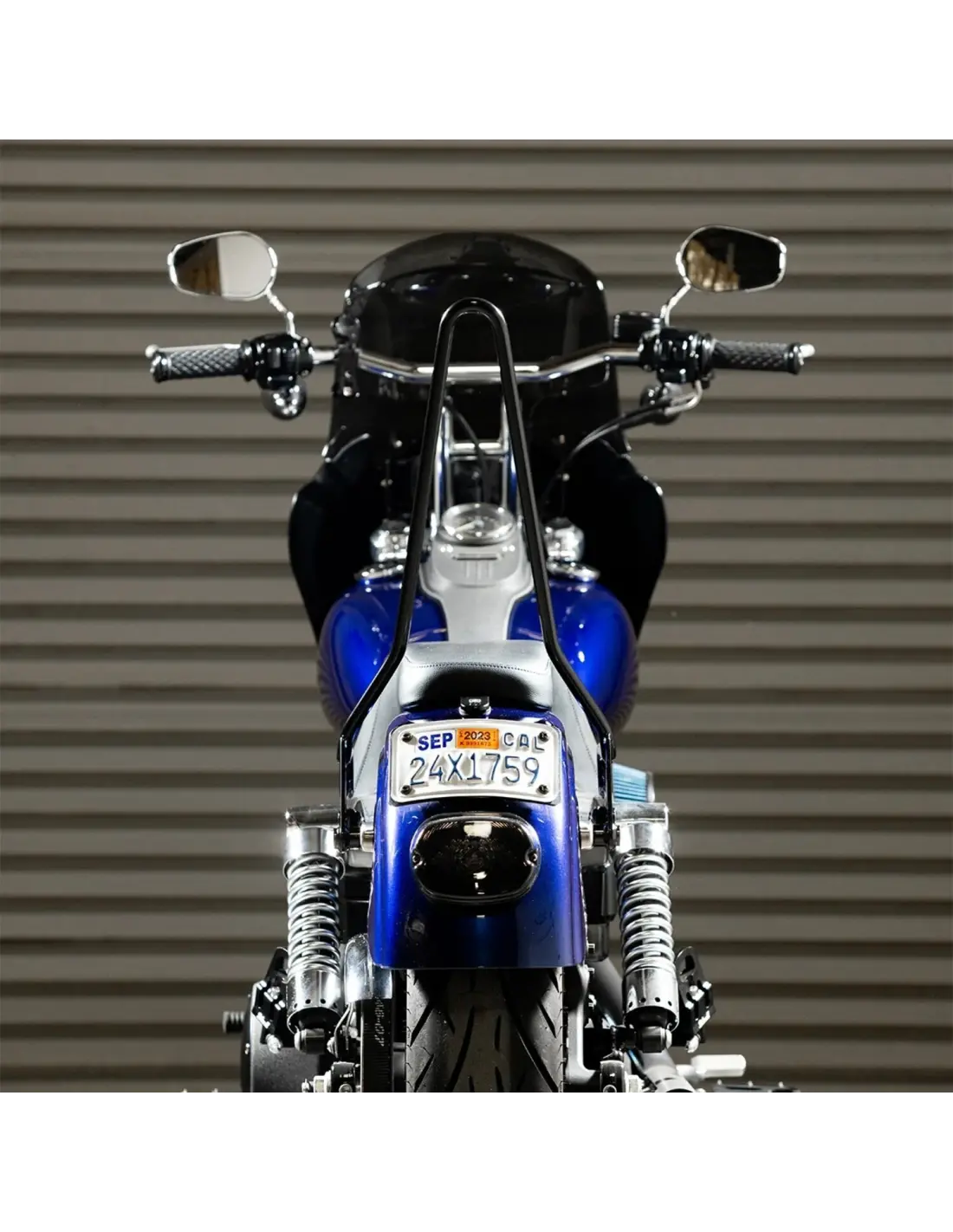

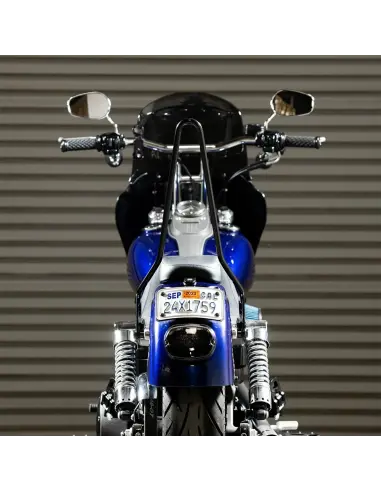

The glossy black powder coat provides a sober and aggressive look, especially suitable for Harley-Davidson Dyna with blacked-out, bobber, chopper, or custom builds.
Harley-Davidson Dyna compatibility
Compatible with Harley-Davidson Dyna manufactured between 2006 and 2017, according to the application indicated by the manufacturer.
Before ordering, check the exact year and the configuration of the rear of the motorcycle. Fenders, brackets, turn signals, or other modified or aftermarket accessories may affect installation.
Installation and load recommendations
Install the sissy bar using the supplied hardware and periodically check the tightness of the mounts. Distribute the luggage evenly and use suitable straps to prevent movement while riding.
Before riding, make sure the sissy bar and the load are properly secured and that no strap or luggage item can come into contact with the wheel, transmission, exhaust, or other moving or hot parts.
