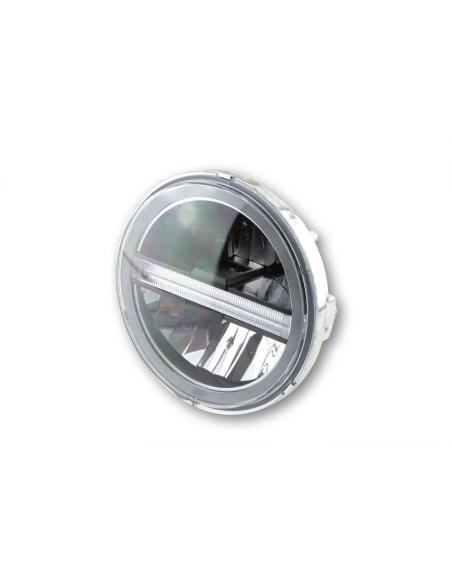

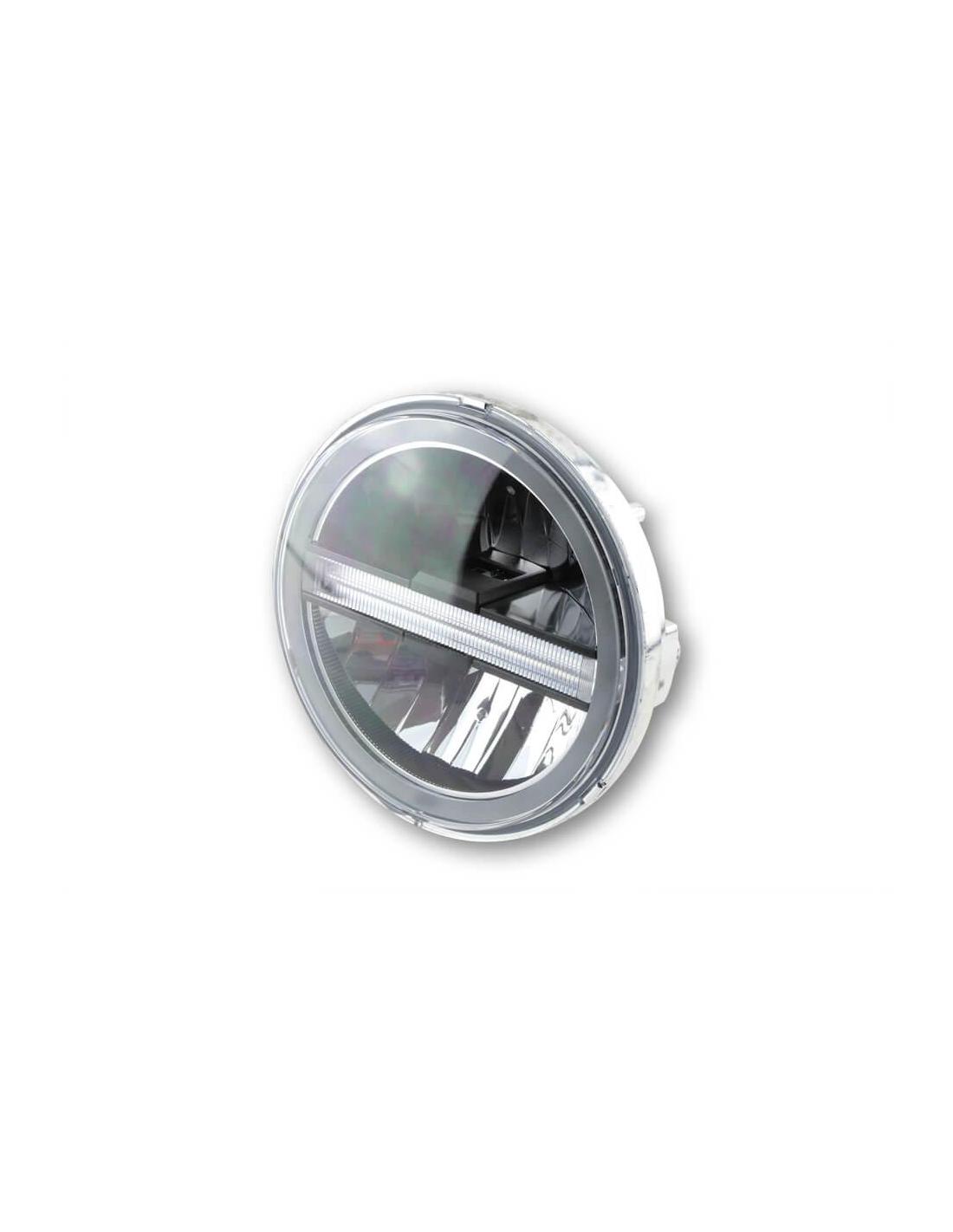

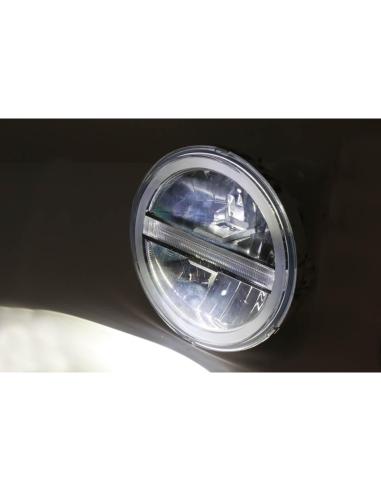

LED LENS TYPE 6 TFL 5 3/4" INCH TYPE 6 TYPE 6 TFL APPROVED LENS

HIGHSIDER 5 3/4-inch LED main headlight unit TYPE 6, type E approval

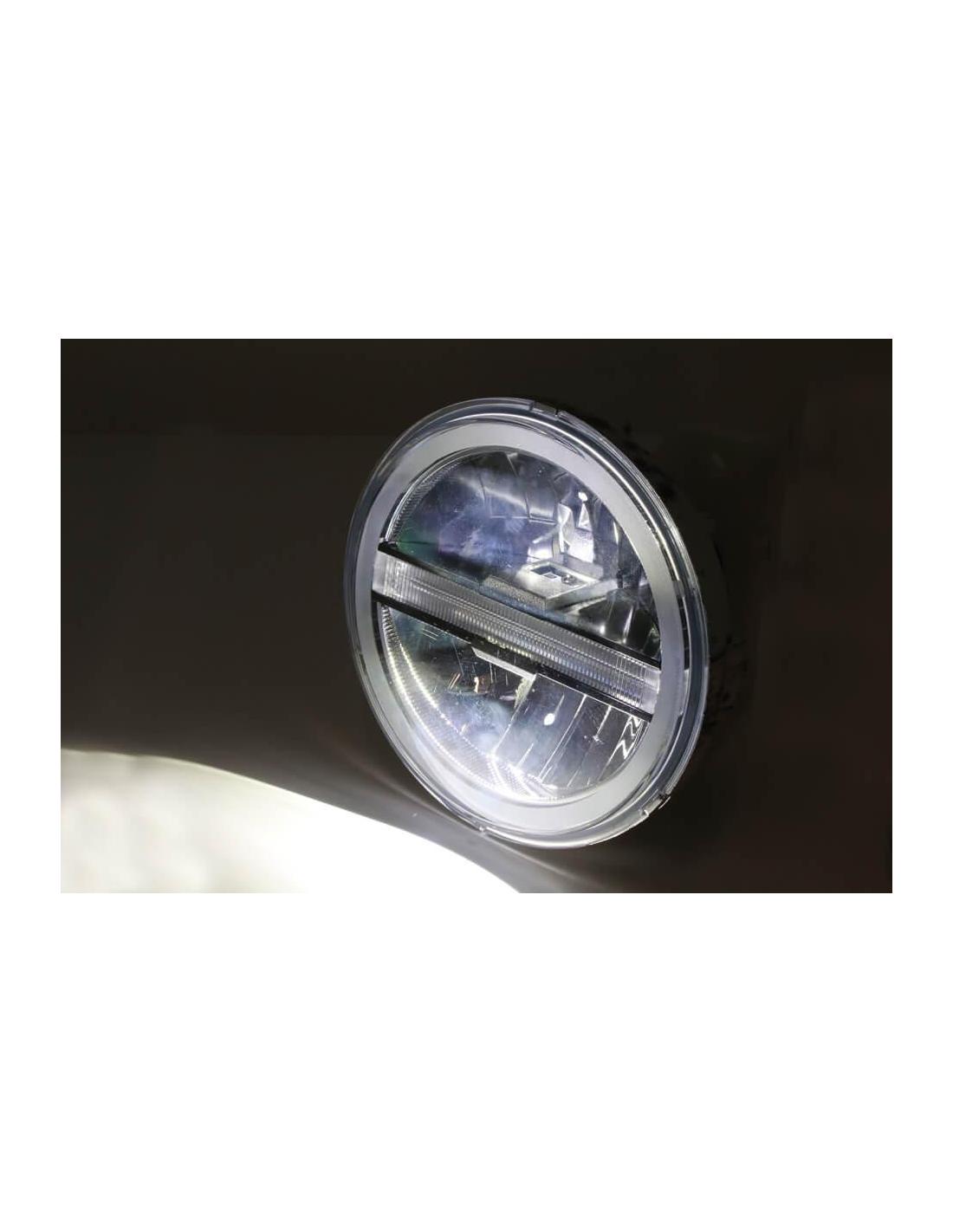

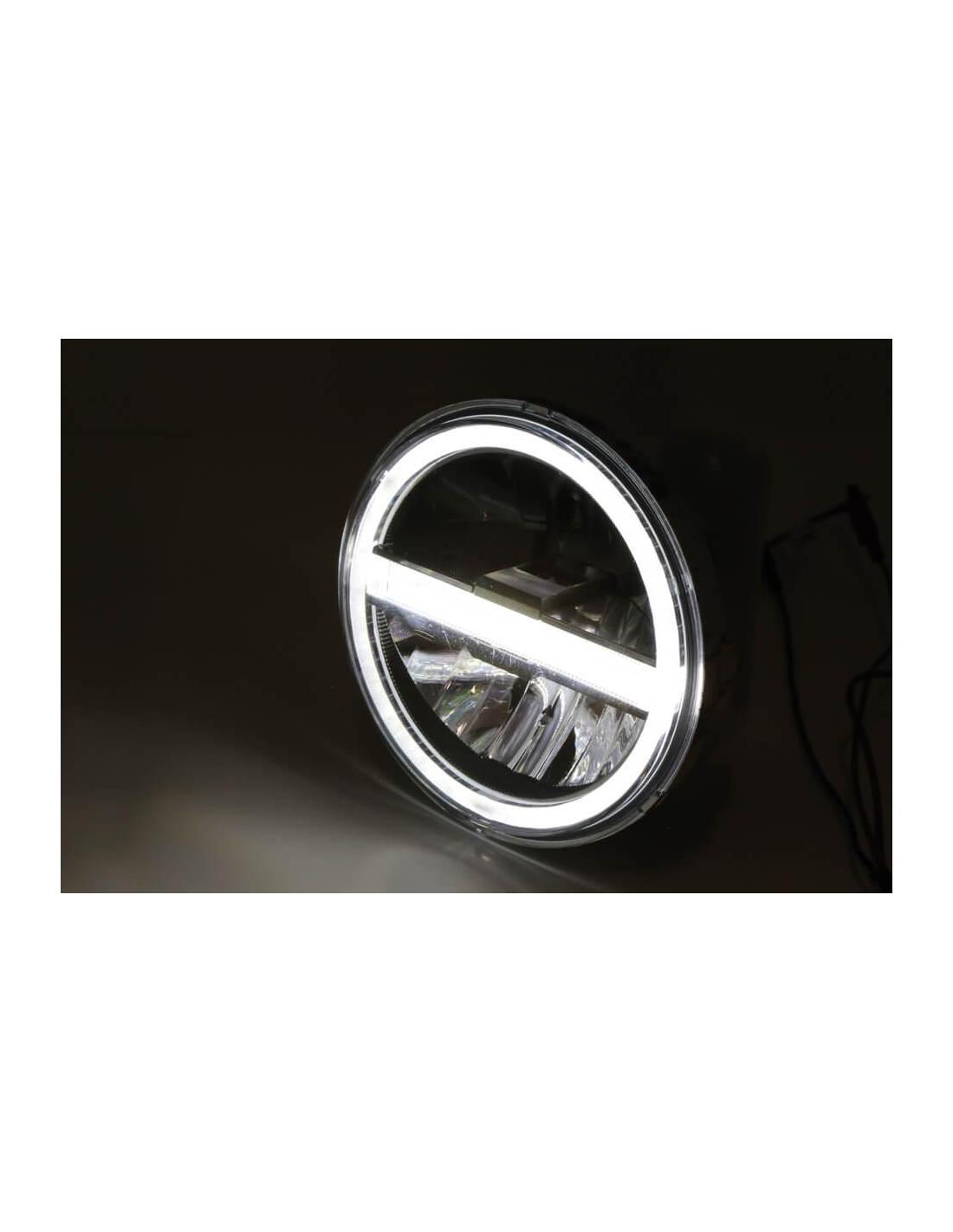

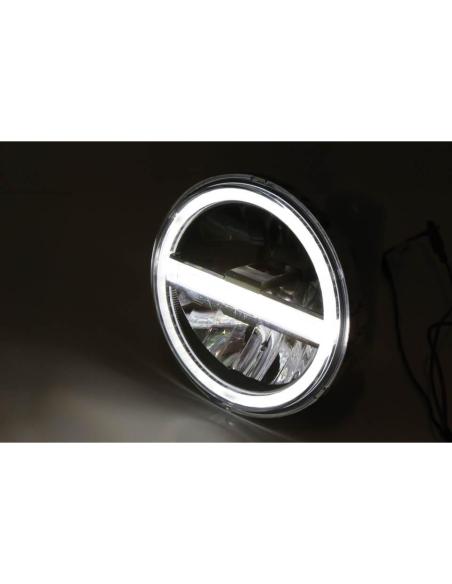

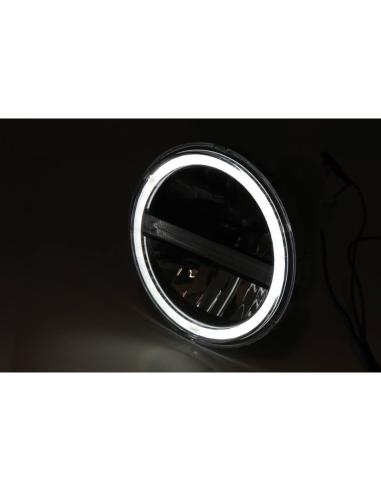

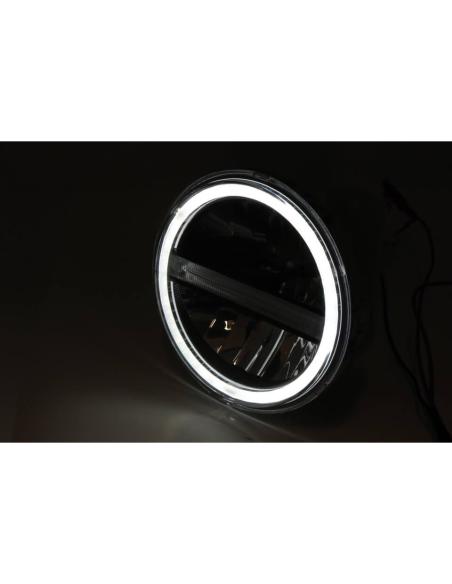

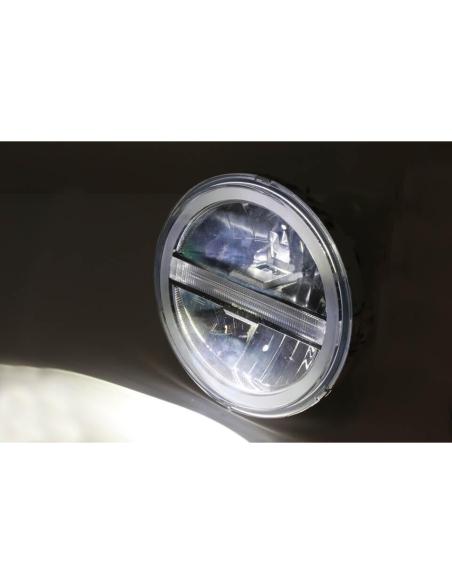

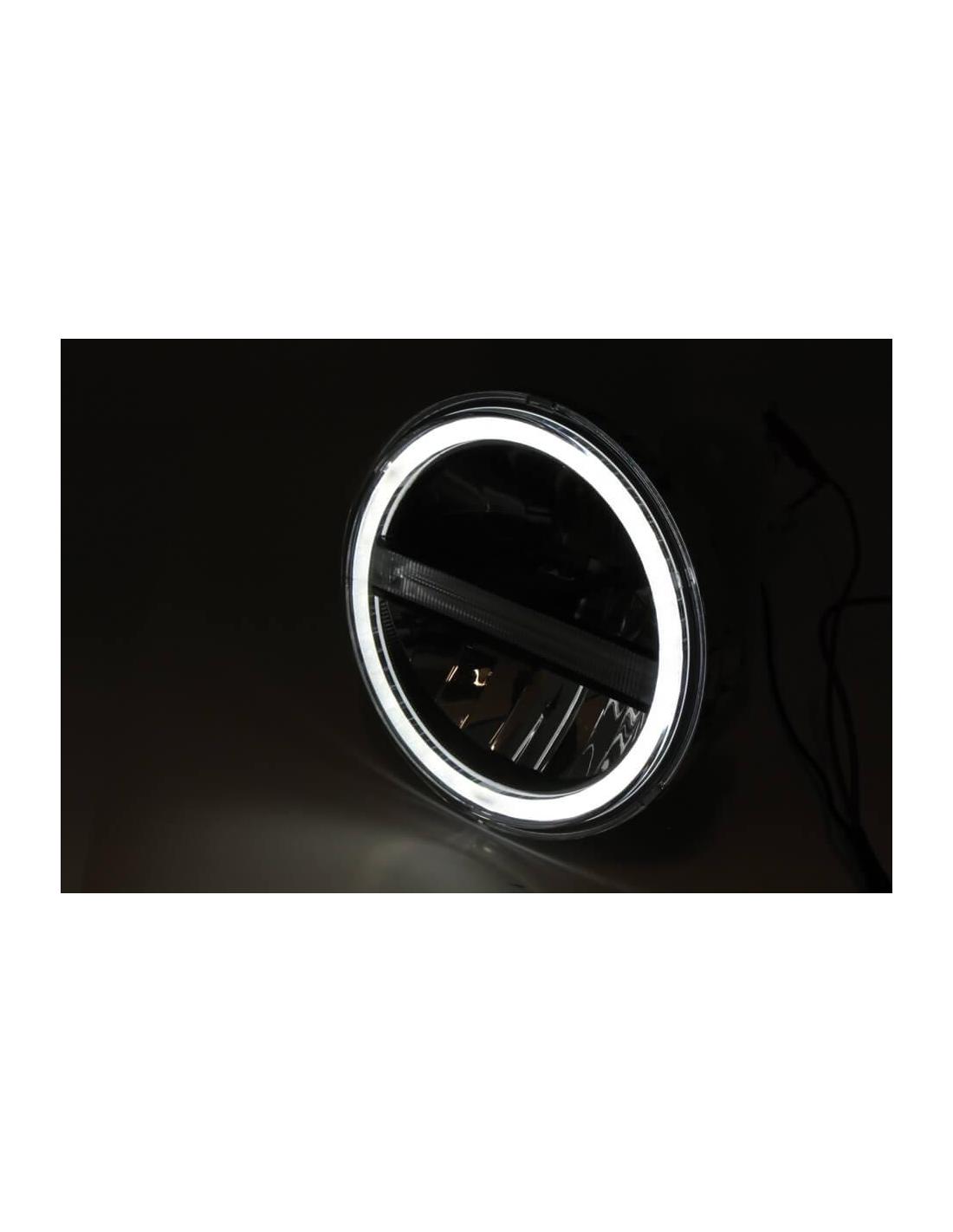

This round chrome reflector has high beam, low beam, daytime running light and parking light ring. The daytime running light is located in the center of the strip and the low beam in the upper half of the insert. When the high beam is on, both halves are illuminated.

Our highlights: give your bike your distinctive style! The unusual design and perfect technology of the HIGHSIDER headlight series make your bike a highlight in any case!

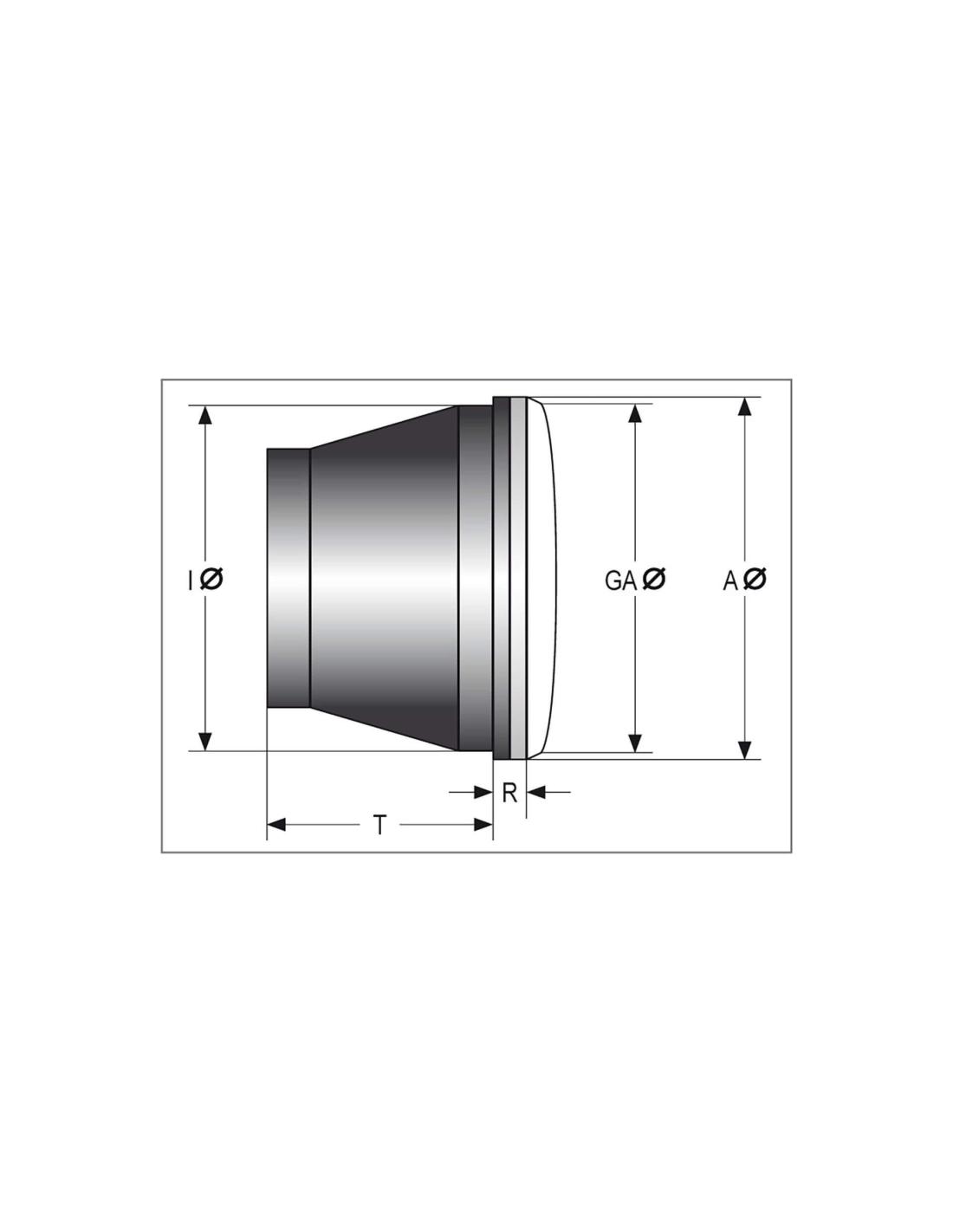

Dimensions:
Diameter A = 143 mm
Diameter GA = 133 mm
Diameter I = 131 mm, T = 70 mm, R = 13 mm
Cable length: 400 mm

Power consumption: (3-pin connector)

Connections:
White = low beam (+)
Blue = high beam (+)
Green = ground (-)
Red = TFL/DRL (+) at ignition plus
Brown = position light (+)

Supplied: 1 piece incl. 1x plug housing
