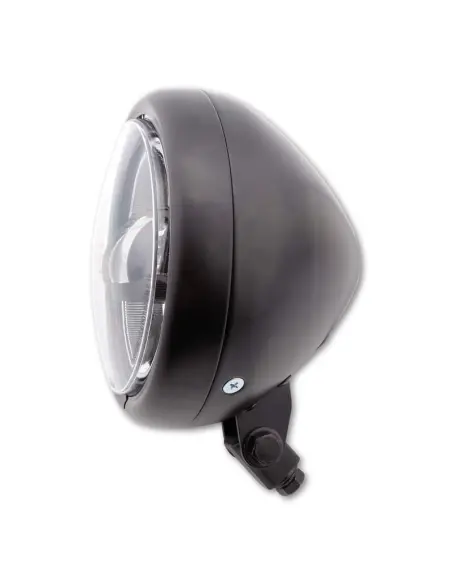

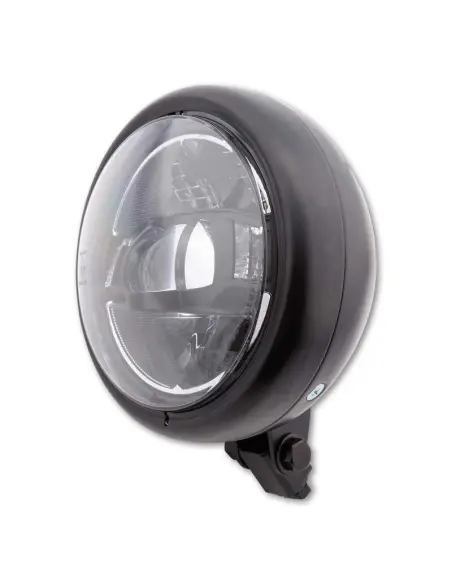

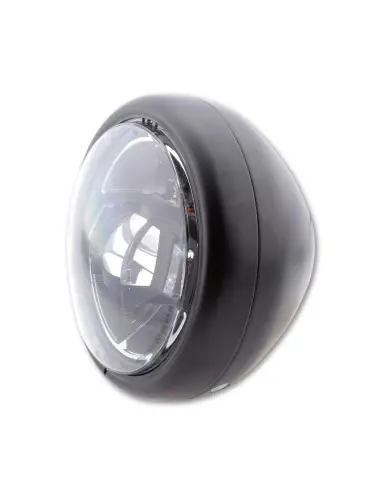

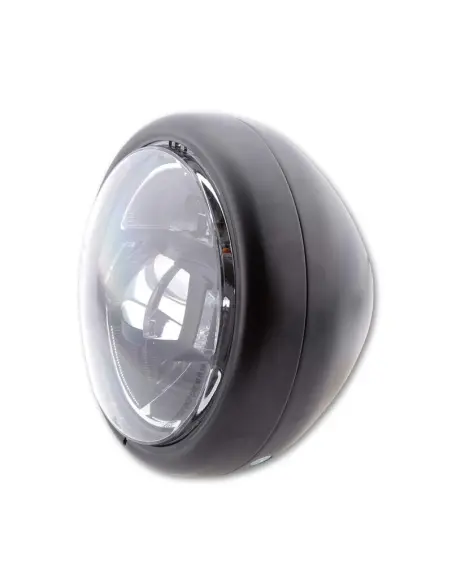

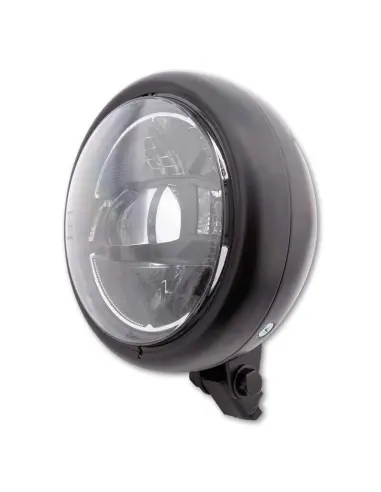

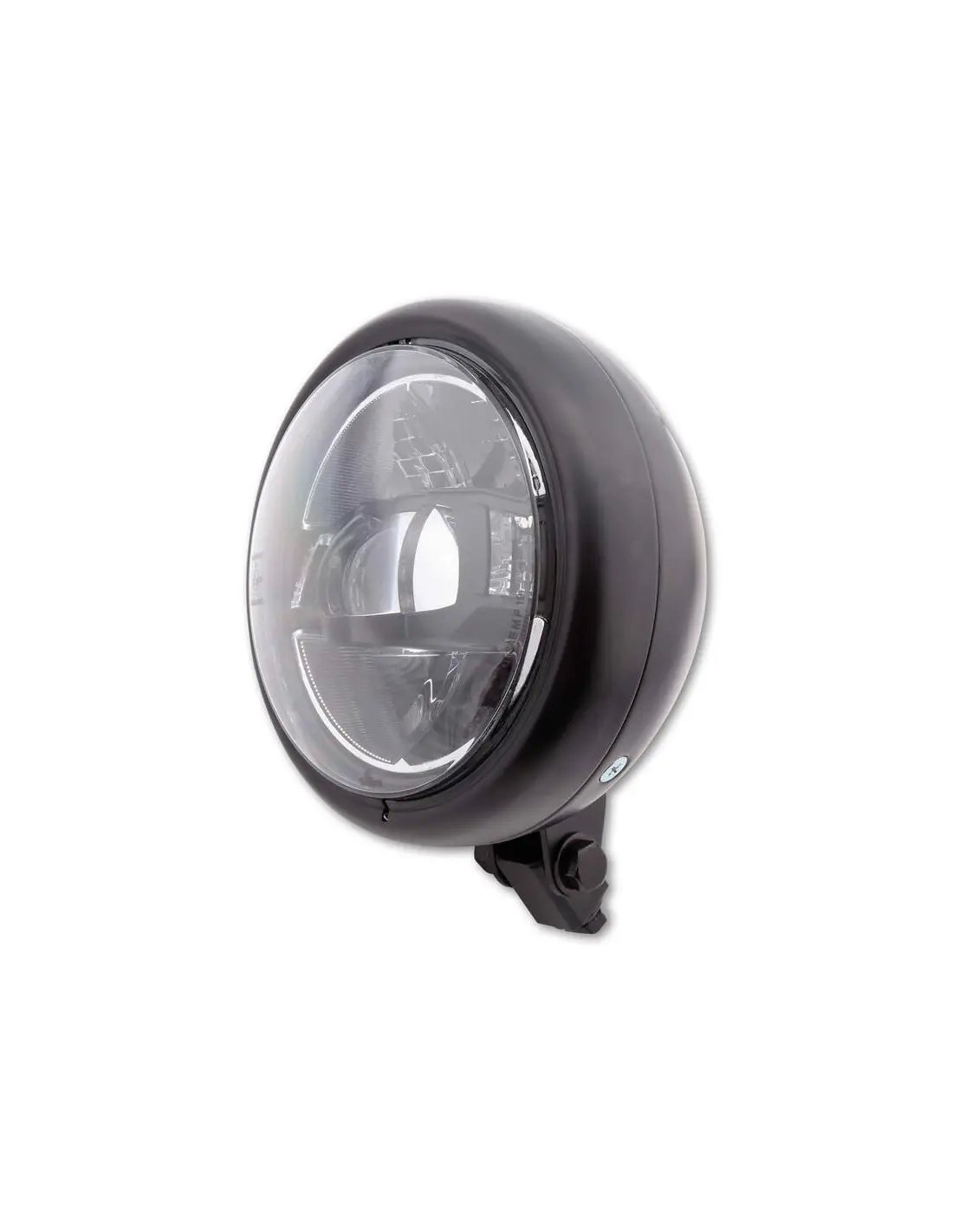

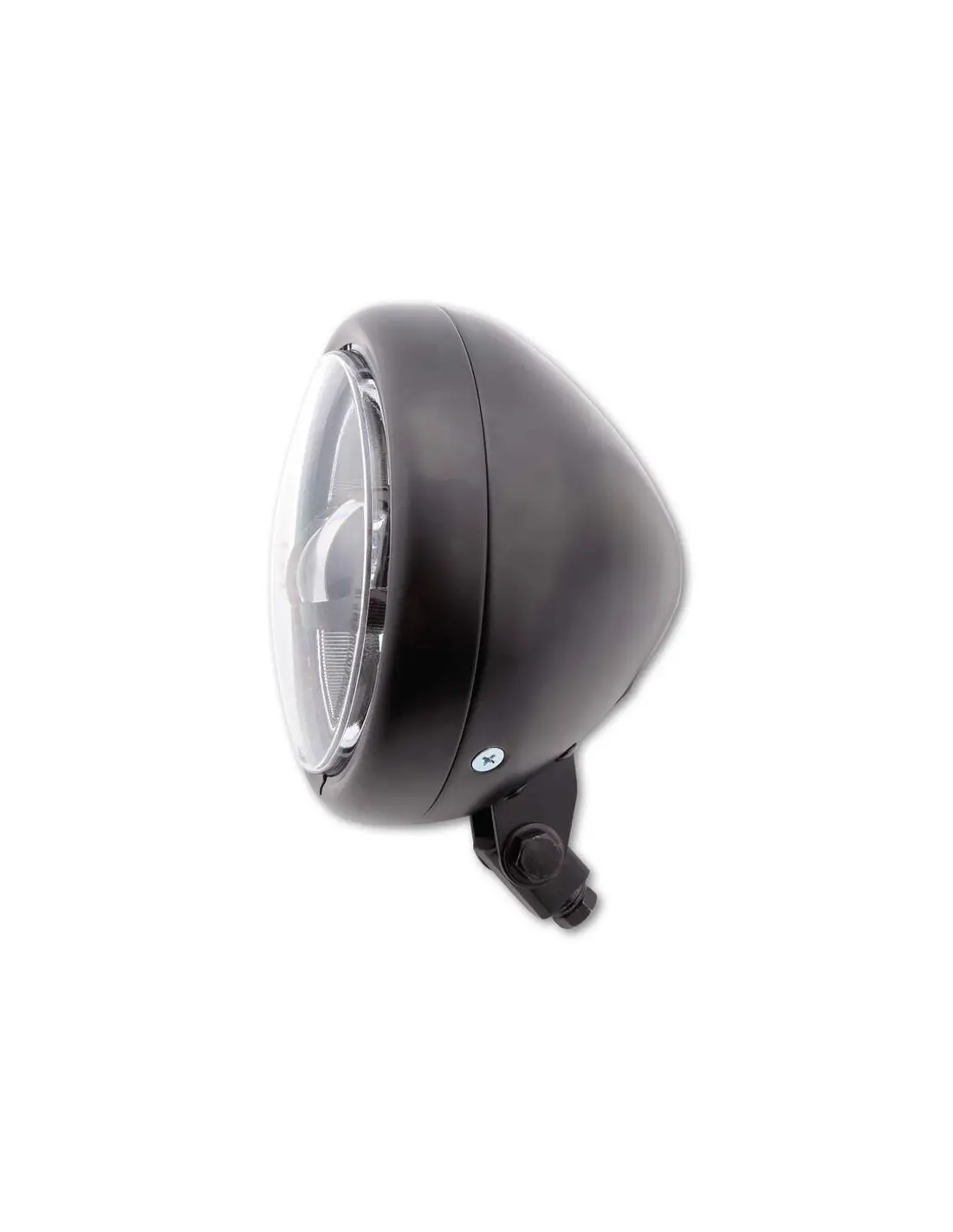

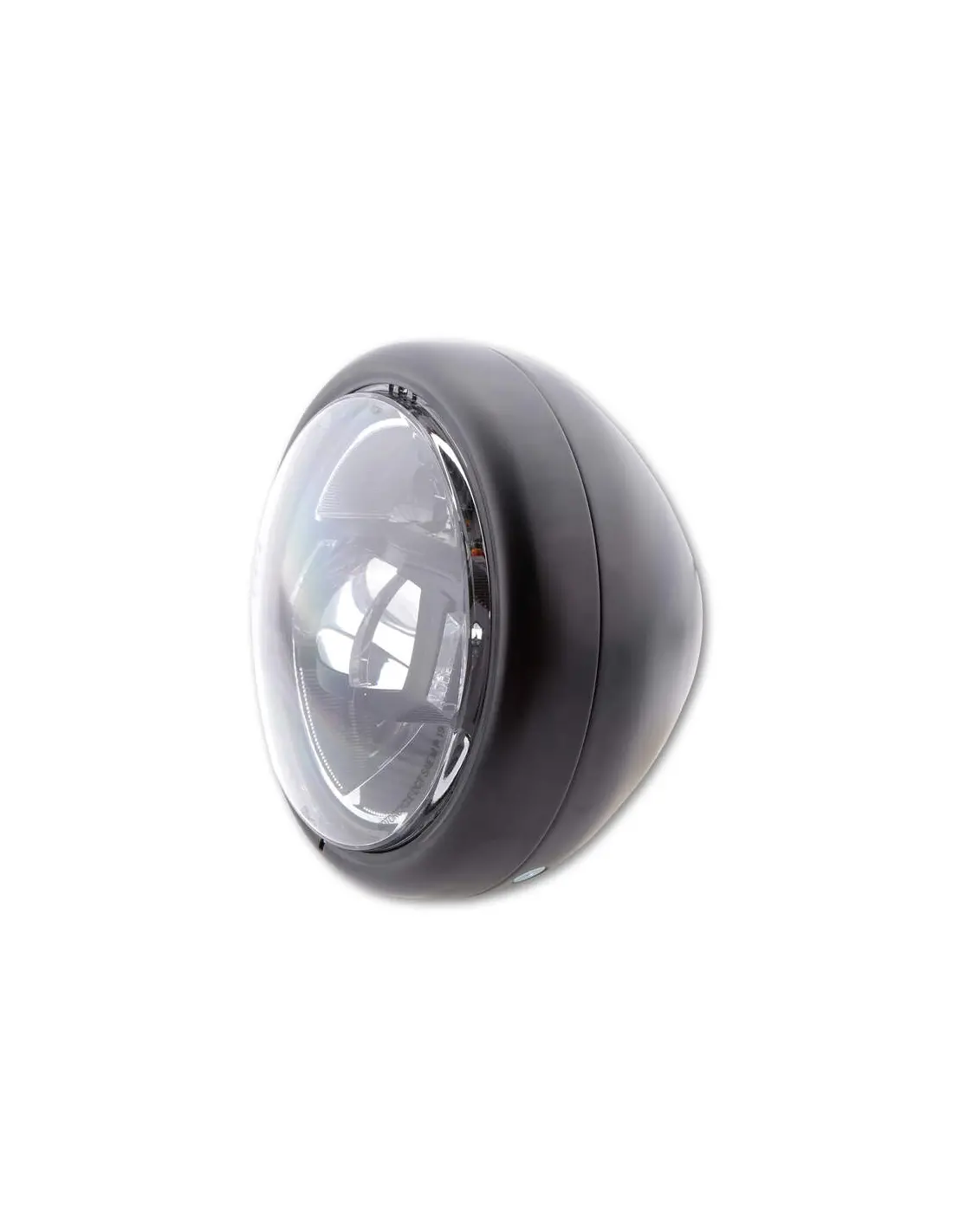

HIGHSIDER PRO PECOS TYPE 10 BLACK LED HEADLIGHT 5-3/4 INCH APPROVED

The HIGHSIDER pro PECOS Type 10 LED headlight adds a modern, bold custom look to your motorcycle’s front end. Its 5-3/4-inch round design, matte black metal housing and clear LED insert combine classic style with functional lighting for daytime or nighttime riding.

Main features

• Brand: HIGHSIDER
• Range: HIGHSIDER pro
• Type: PECOS Type 10 round LED headlight
• Lighting functions: low beam, high beam and position light
• Approval: approved
• Housing: matte black steel metal housing
• Lens colour: clear
• Outer housing diameter: 160 mm
• Inner housing diameter: 155 mm
• Headlight insert diameter: 145 mm
• Specified size: 5-3/4 inches, 146 mm
• Mounting: bottom
• Connection: 3-pin connector

Use and design

• The low beam is located in the central area of the insert.
• The high beam is positioned at the top.
• The position light corresponds to the left and right areas.
• Specified electrical installation: red for positive low beam, yellow for positive high beam, brown for negative ground and white for positive position light.
• Scope of delivery: 1 headlight.

Compatibility / recommended use

• Universal product: Check the available space, bottom mounting system and your motorcycle’s connections before installation.
• Suitable for custom projects looking for a compact, clean front end with LED technology.

Renew your motorcycle’s character with a HIGHSIDER pro headlight that makes an unmistakable statement. At Iguana Custom, you will find selected accessories to give your build a distinctive finish.
