CENTRAL LED HEADLAMP BATE STYLE BLACK 5-3/4" TYP 5- HOMOLOGATED

BATES STILE 5 3/4 inches central LED headlight

APPROVED

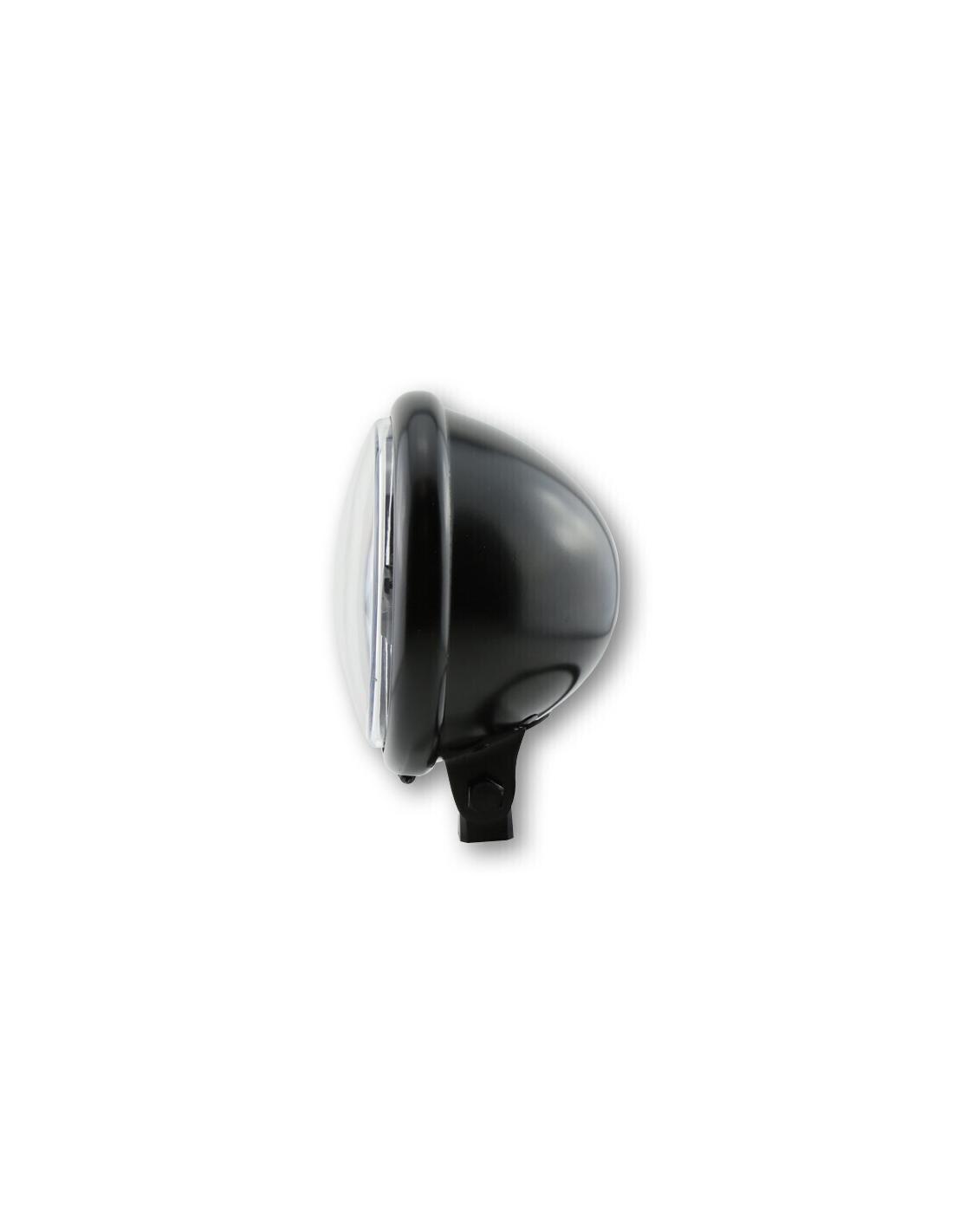

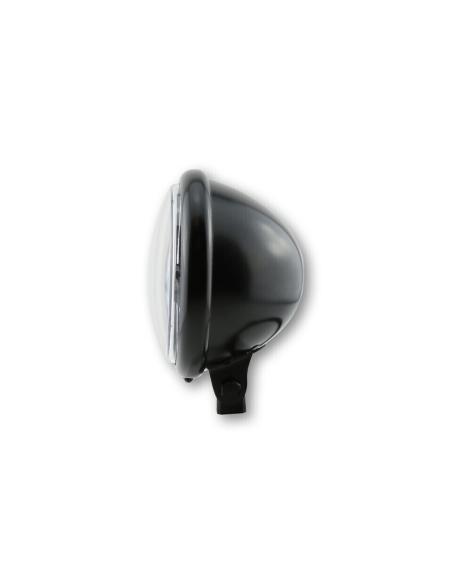

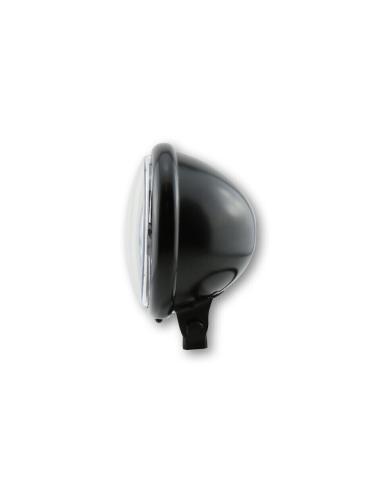

Stylish LED headlight with a black metal housing in the BATES STYLE design.

The chrome-plated round reflector with black bezel and clear glass has a high beam, low beam and position light function.

On low beam the upper half is illuminated and when you switch to high beam, both halves of the headlight are illuminated.

The headlight is sturdy and easy to install.

Dimensions:

- Case diameter: 155 mm.

- Diameter headlight insert: 145 mm.

- Depth without glass: 110 mm.

connections:

(3-pin plug)

red = low beam (+)

white = high beam (+)

black = ground (-)

brown = position light (+)

black = ground (-):
