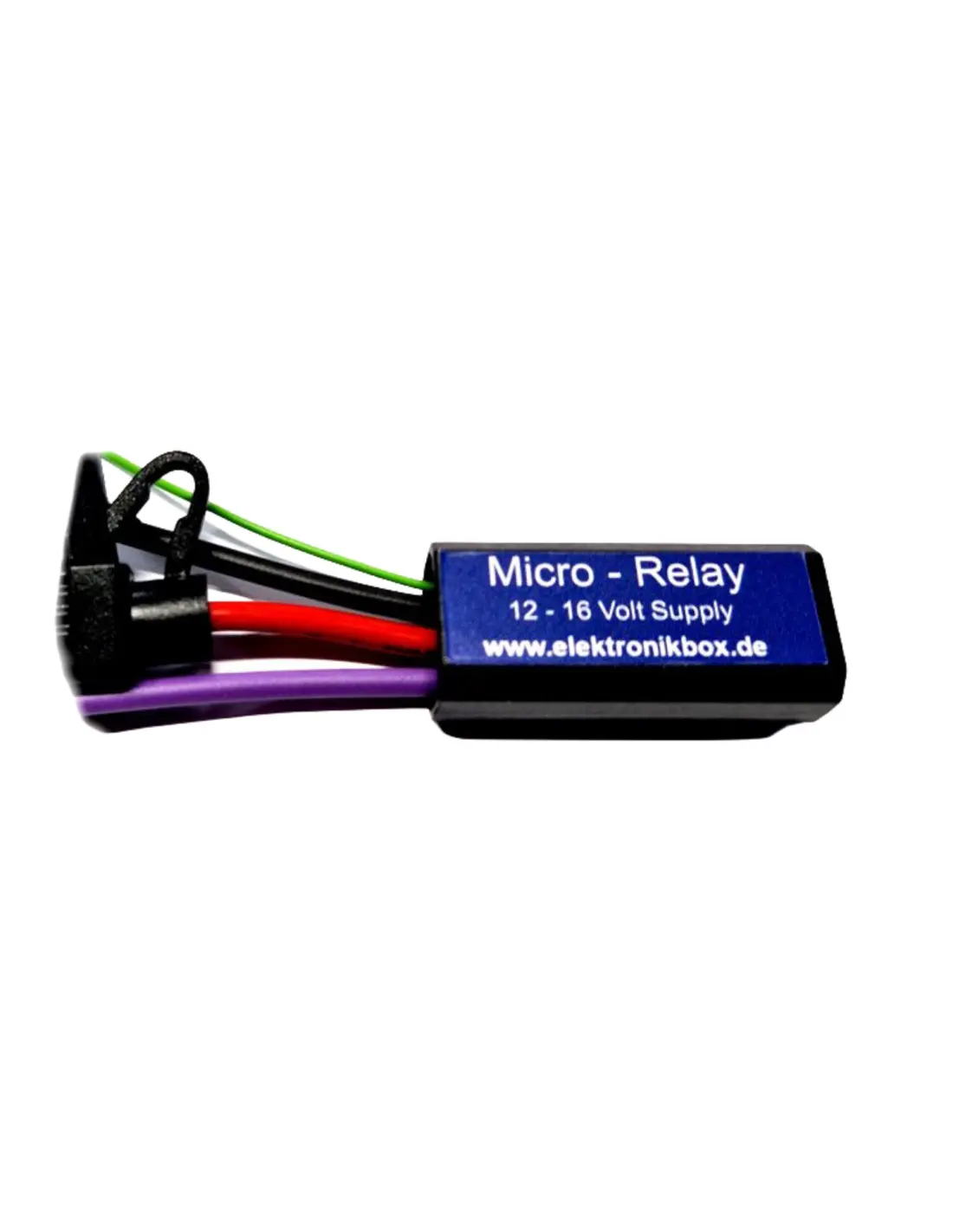

ELEKTRONIKBOX 12-16V 20A 240W UNIVERSAL SOLID STATE MICRO RELAY

Optimise your motorcycle's electrical installation with the Elektronikbox solid state micro relay. Designed to replace a conventional load relay, it offers an especially compact solution without mechanical contacts that can wear out or burn. A reliable alternative for wiring projects, custom builds and electrical replacements in 12 V systems.

Main features

• Brand: Elektronikbox.
• Type: solid state micro relay.
• Input voltage: 12 to 16 V.
• Maximum capacity: 20 A / 240 W.
• Activation: switches when 12 V is applied to the green wire.
• Indicator: output status LED.
• Dimensions: 38 x 16 x 11 mm.
• Construction: ABS housing encapsulated with two-component epoxy resin.
• Connections: 0.14 mm² inputs and 1.5 mm² output.
• Maximum ambient temperature: 80 °C.

Use and purpose

• Suitable for replacing conventional load relays within its power and current limits.
• Its compact size saves space in compact electrical installations.
• Solid state technology eliminates conventional contacts, aiming for greater long-term reliability.
• The LED makes it easy to visually check the output operating status.

Compatibility / recommended use

• Compatibility: universal.
• Recommended for motorcycles and electrical projects operating between 12 and 16 V and not exceeding 20 A or 240 W.
• Check the wiring cross-section, circuit consumption and correct installation before fitting.
