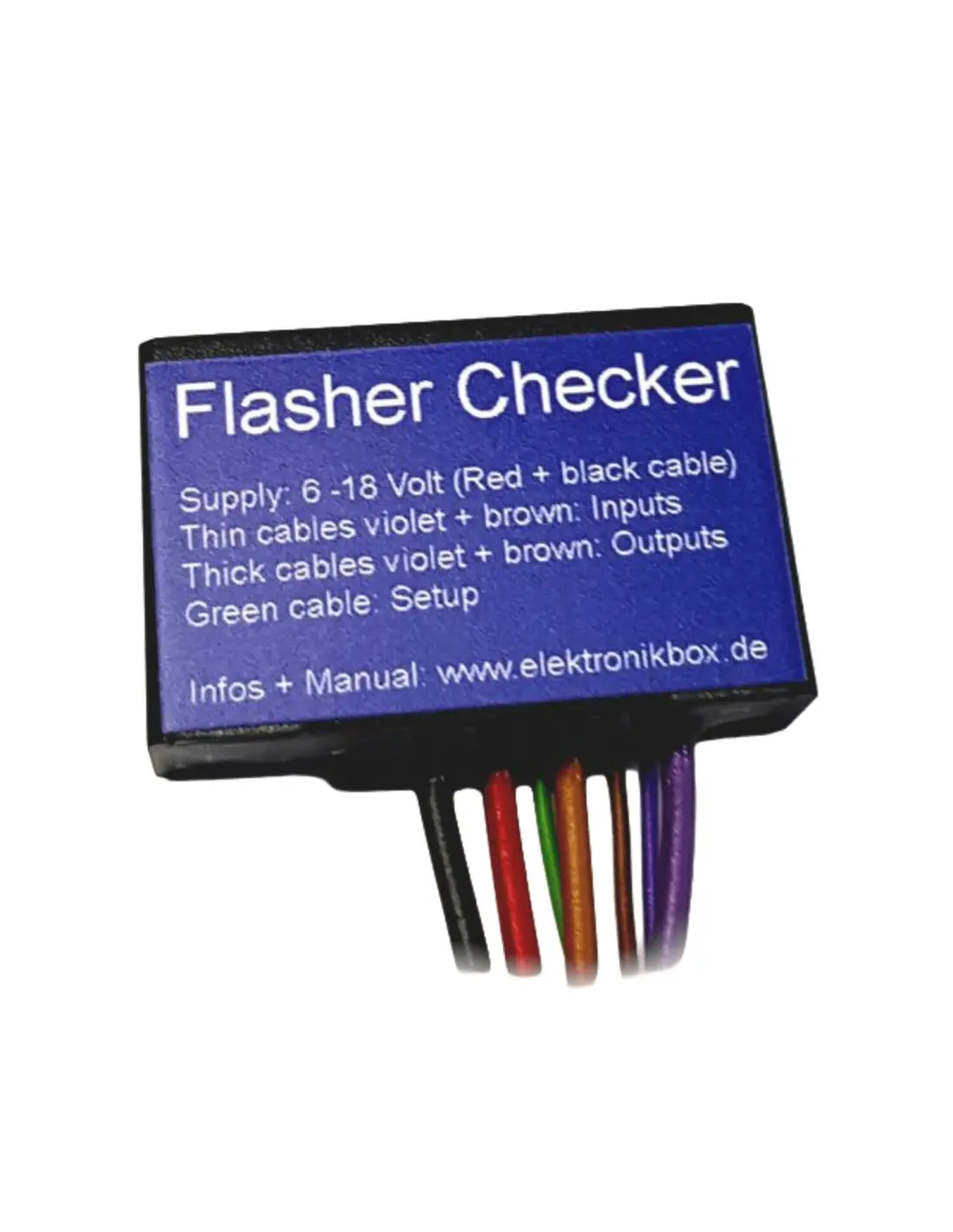

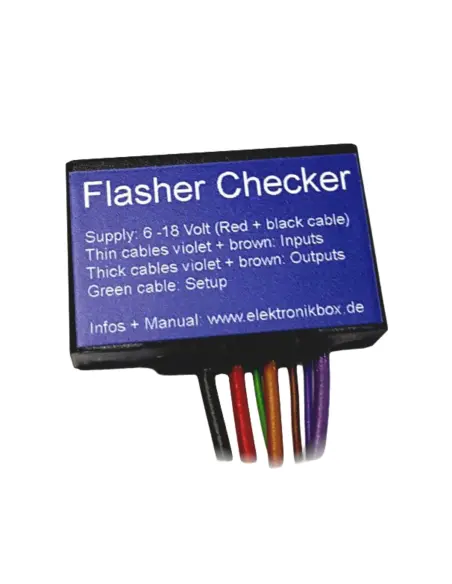

FLASHER CHECKER TURN SIGNAL TESTER FOR INDEPENDENT RELAYS

Elektronikbox's Flasher Checker is an electronic module designed to help you detect a turn signal that has stopped working while riding. On motorcycles equipped with independent load relays or load equalizers, the flashing rate may not change even if a signal lamp fails. This device adds a visual warning by increasing the flash frequency when it detects a drop in current consumption.

Main features

• Function: monitors turn signal operation while riding.
• Failure warning: increases the flashing frequency when electrical consumption drops by 20% or more.
• Installation: connects between the turn signal relay and the turn signals.
• Compatible power: from 1 W up to a maximum of 40 W per side.
• Input voltage range: 7 to 18 V.
• Maximum current: 5 A per output.
• Connections: 0.14 mm² inputs and 0.75 mm² outputs.
• Maximum ambient temperature: 80 °C.
• Dimensions: 40 x 25 x 12.5 mm.

Use and purpose

• Improves fault detection in the motorcycle's signalling system.
• Especially useful when the turn signal system maintains the same flashing rate despite a failed signal.
• Its compact format makes it easy to integrate into motorcycle electrical systems.

Compatibility / recommended use

• Recommended for motorcycles with turn signals using independent load relays or load equalizers.
• Check turn signal power, voltage and wire cross-sections before installation.
