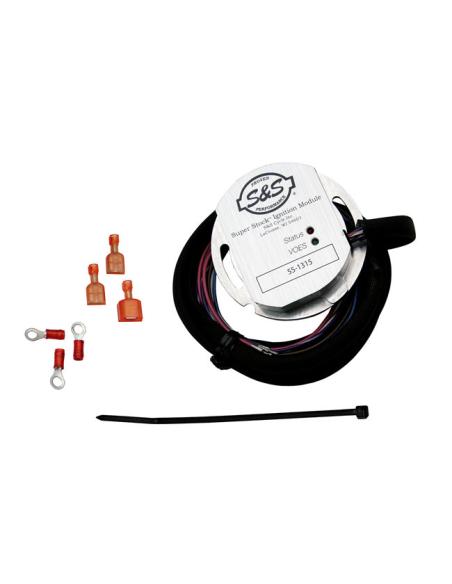

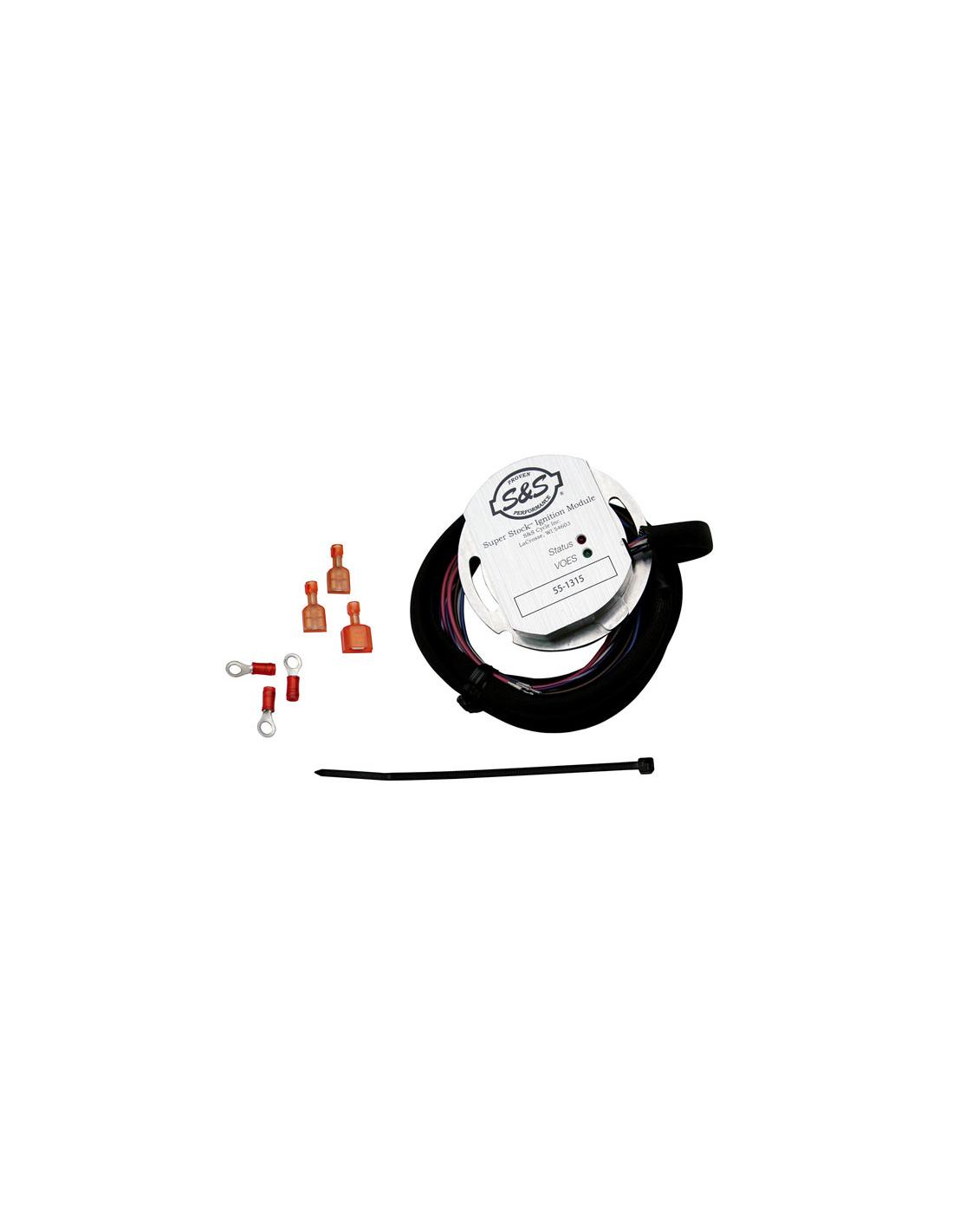

SUPERSTOCK IGNITION MODULE FOR 96" S&S EVO ENGINES

SUPERSTOCK IGNITION MODULE FOR 96" S&S EVO ENGINES

A single ignition.

 For electric start.

Module only with instructions.

Modules are pre-programmed with ignition curves for use with specific S&S engines. Just set the basic sync, no further setting is needed. Configuration for electric start, where the engine will turn 3 revolutions before the ignition spark jumps. This is done to prevent kickback which can damage electric starter components. Note: All modules can be configured for electric or kick start by a certified S&S dealer equipped with Super Stock diagnostic cable and software. Then it is also possible to see: Time at wide open throttle (WOT); the amount of time the engine was running at various temperatures; number of engine starts; total execution time; time spent in various RPM ranges; max. RPM and amount of time spent in rev. limit. It also allows the dealer to activate the 24 hour 'break-in' rev. limiter function If set, it will protect a new engine by limiting engine revolutions. Only after 24 hours of operation will the motor be able to reach the maximum of 6300 RPM. Only modules on new S&S engines sold with the Super Stock ignition system will have the 'break-in' rating. limiter activated.

Compatible with: > FOR 96" S&S EVO ENGINES
