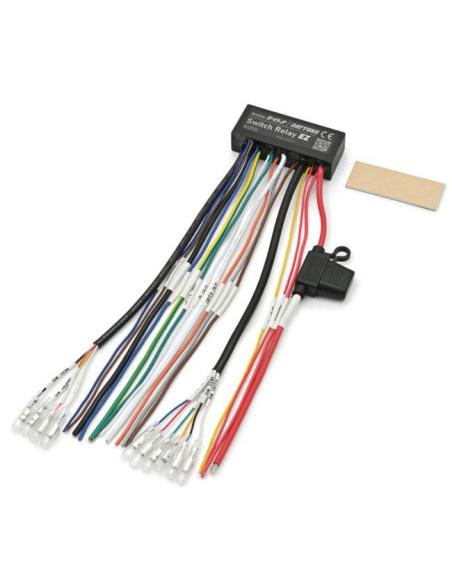

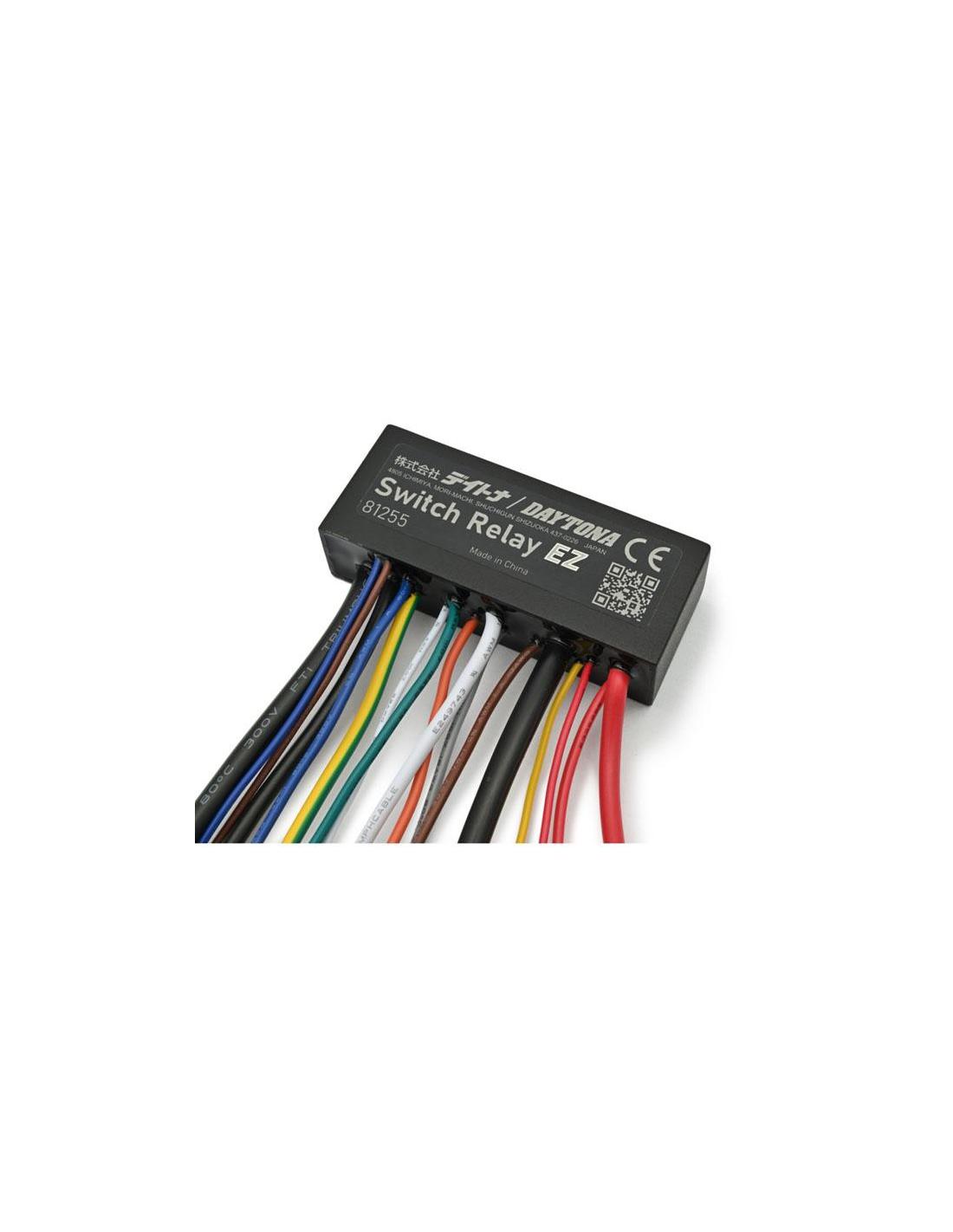

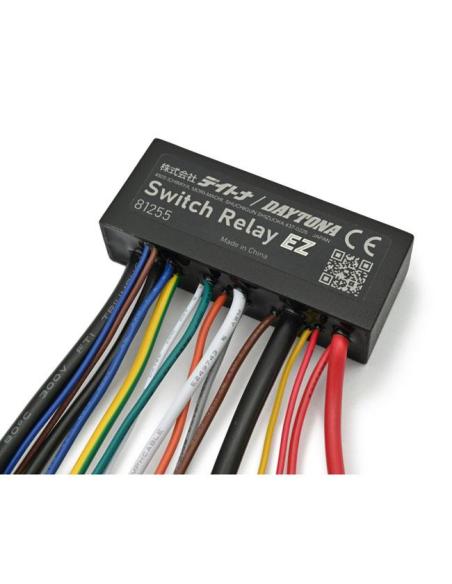

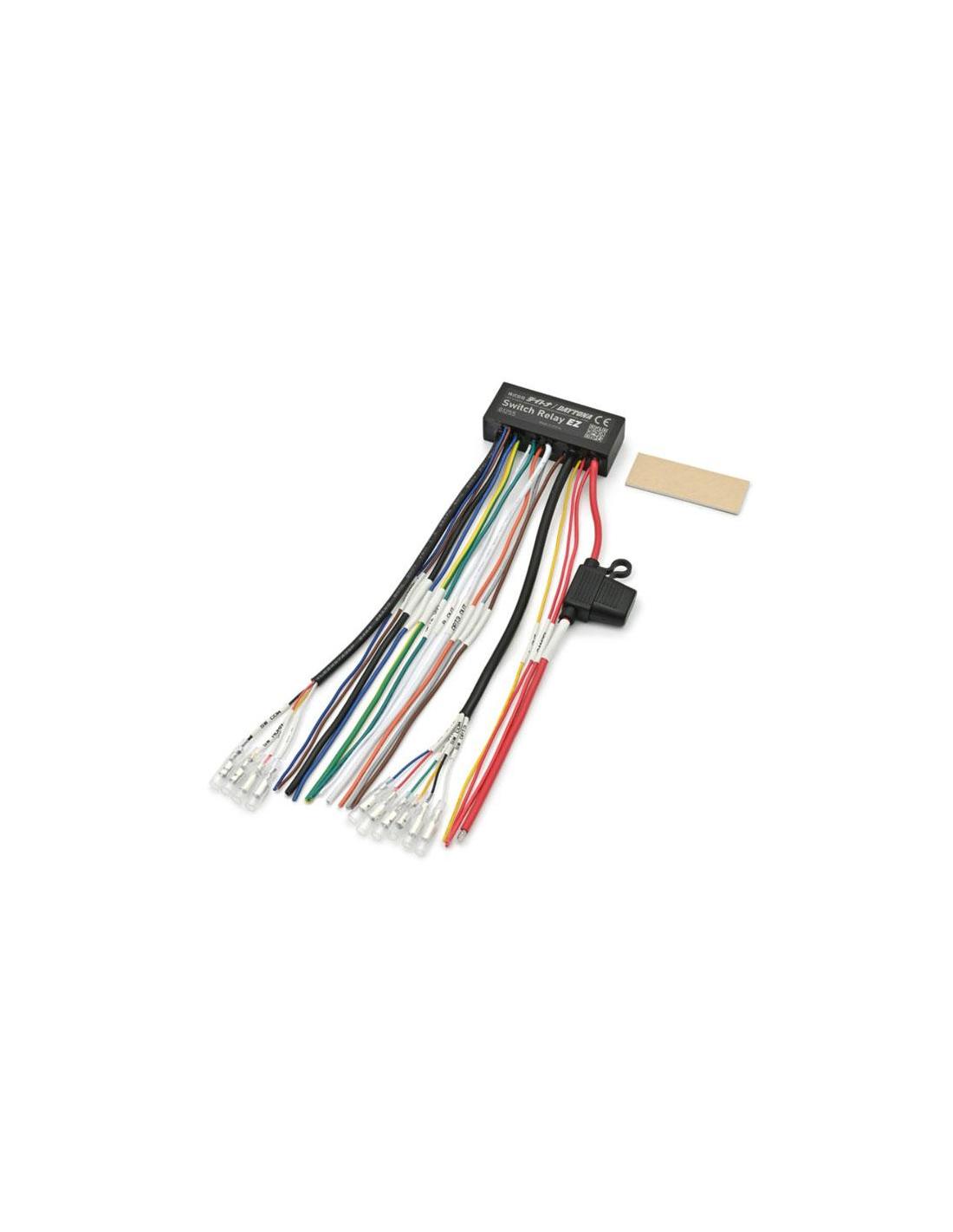

DAYTONA MULTIFUNCTION HANDLEBAR RELAY EZ

DAYTONA EZ MULTIFUNCTION HANDLEBAR RELAY

The Daytona EZ multifunction relay is the perfect solution for centralizing the electrical control of your motorcycle. It allows you to manage multiple functions like lights, indicators, horn, or ignition from one or two Daytona 3-button switches, simplifying wiring and reducing components.

• Supports input current up to 12V/20A with an integrated protection fuse.
• CE approved, with individual short-circuit protection per channel.
• Includes specific wiring for high/low beams, horn, ignition, left/right indicators, and hazard lights.
• Features 4 additional configurable connections.

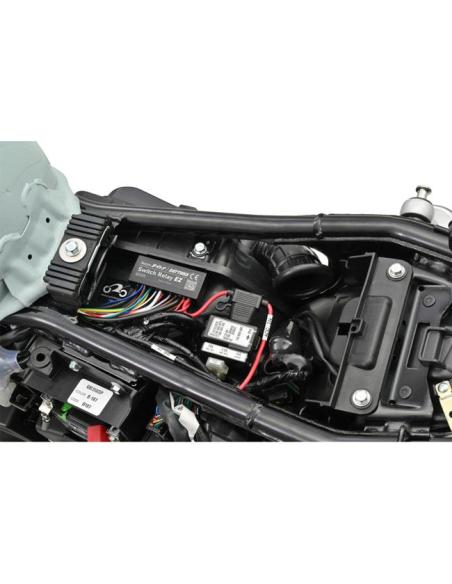

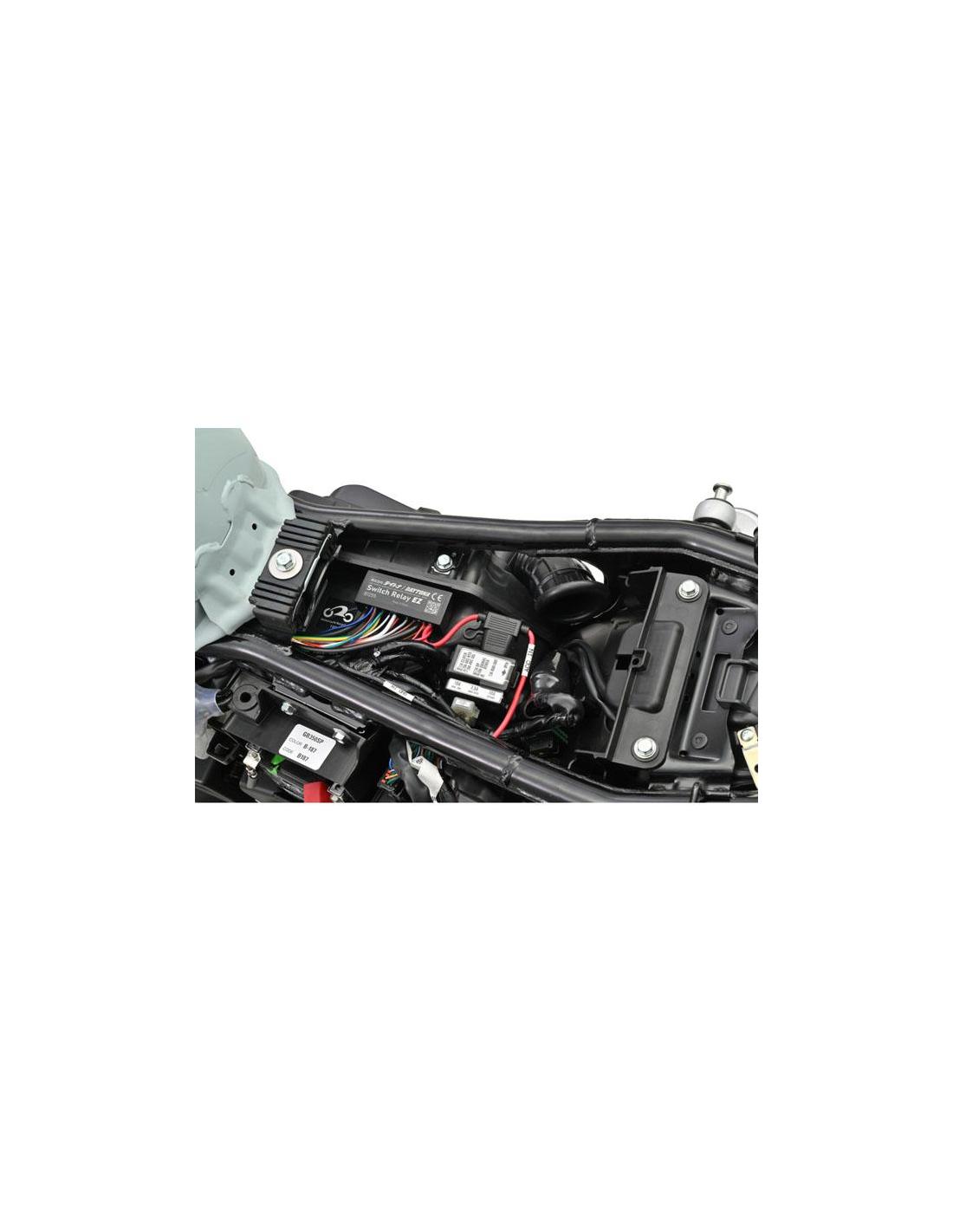

• Compact dimensions: 75 x 30 x 20 mm, ideal for fitting under the seat or tank.
• Compatible with Daytona switches 701154 and 701156.

Transform your electrical setup into a clean, efficient, and modular system with the reliability of Daytona's Japanese engineering.

Compatibility: Universal, suitable for any 12V motorcycle.

Perfect for custom transformations, café racers, or street trackers where reducing wiring and maintaining a minimalist look is desired.
