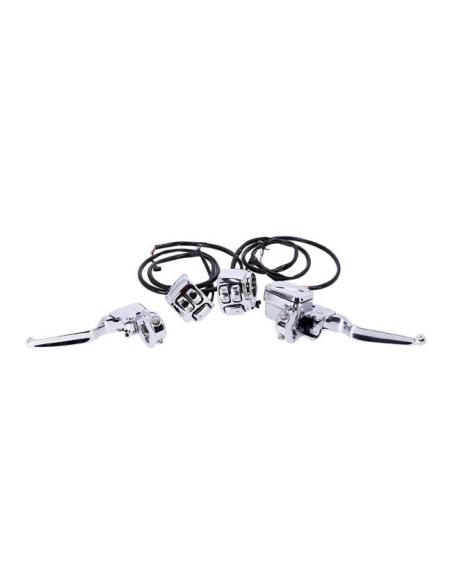

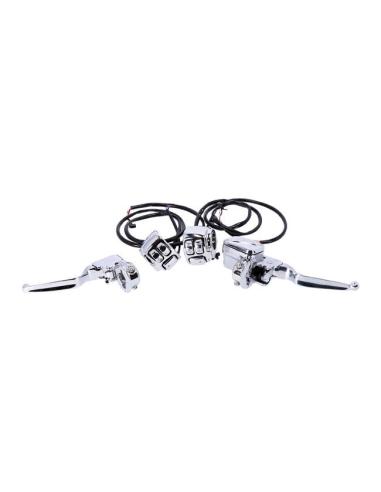

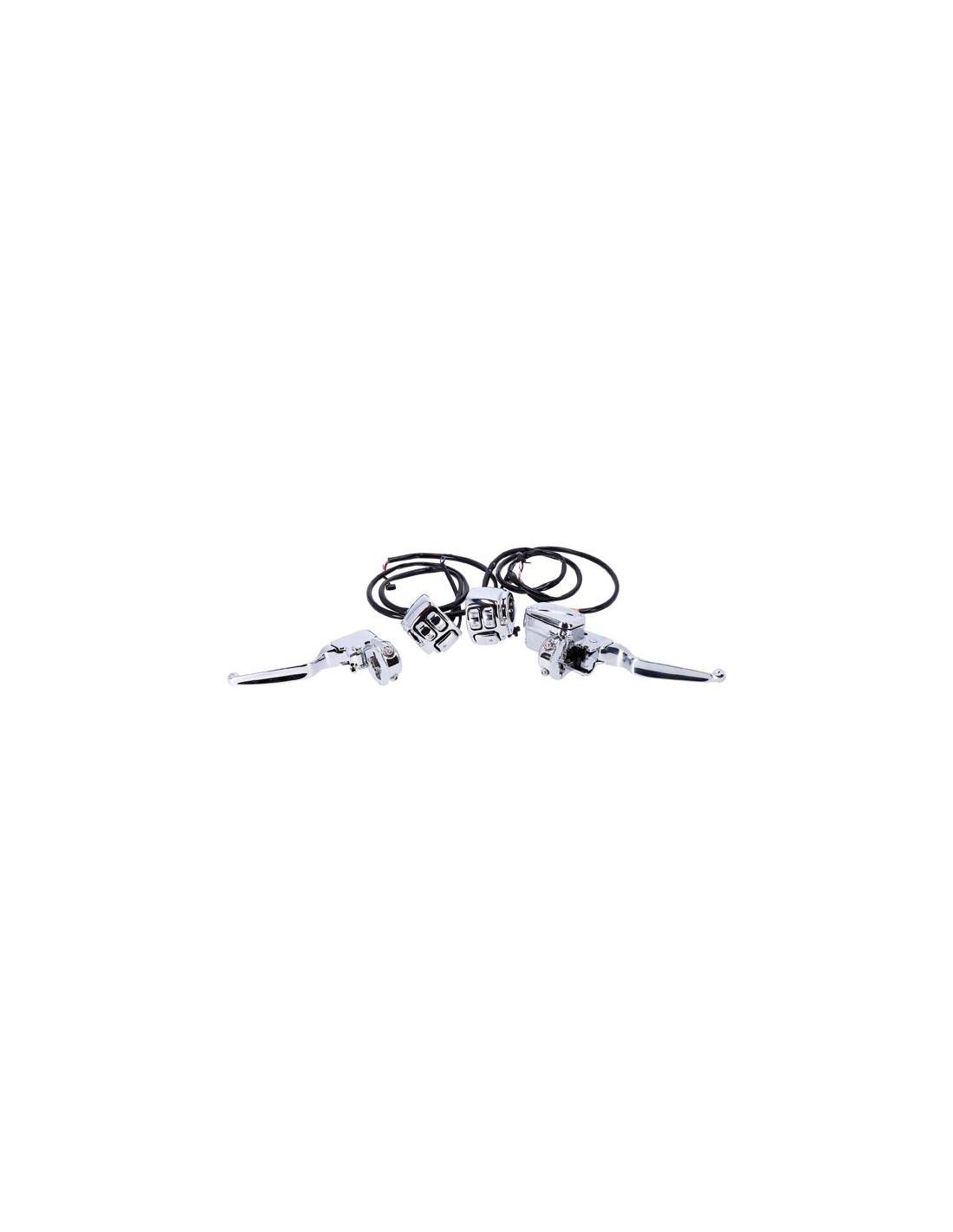

HANDLEBAR LEVERS AND SWITCH HOUSINGS CROMED HD CAN-BUS

Handlebar Levers, Switch Housings, and Wiring Kit, Can-Bus Control, Chrome

This Handlebar Levers, Switch Housings, and Wiring Kit for Handlebar is designed for H-D models with Can-Bus wiring. It includes the mechanical clutch lever assembly for the left side and the hydraulic brake pump assembly for the right side.

Complete with factory-style switch housings and right and left side switch modules with chrome switches.

The right side kit includes the front brake switch, and the left side includes the clutch switch. Both come with a 48" long wiring harness for compatibility with all handlebars, from standard to extra tall or wide.

Note: Two styles of Can-Bus are used on H-D models.

A) Models prior to 2016: Turn signal switch is connected directly to the turn signal. B) Models from 2016 onwards: Turn signal is connected directly to the BCM (Body Control Module) and the turn signal switch to the ECU (Electronic Control Unit).

This handlebar switch and wiring kit fits models A and B. An additional wire for the turn signal is installed on both sides for compatibility with pre-2016 Can-Bus models.

Note: Will not fit models with cruise control.

Compatible with:

• Softail (> 2011-2023, excluding models with cruise control and 2016-2017 FLSS, FLSTFBS)
• Dyna (> 2012-2017)
• Sportster (> 2014-2022)

Get ready for an enhanced riding experience with the Chrome Can-Bus Control Handlebar Switches and Wiring Kit, providing functionality and style to your motorcycle!
