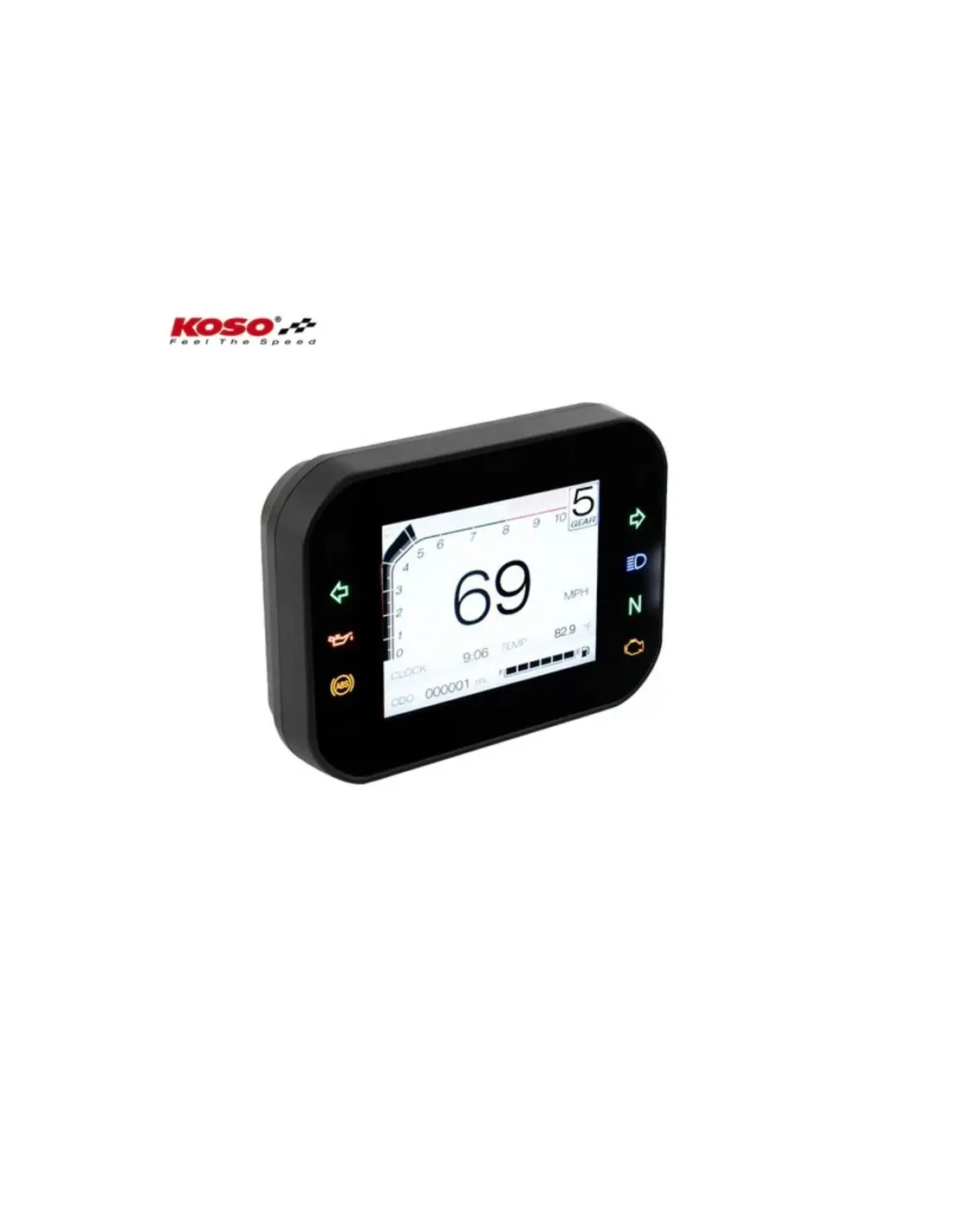

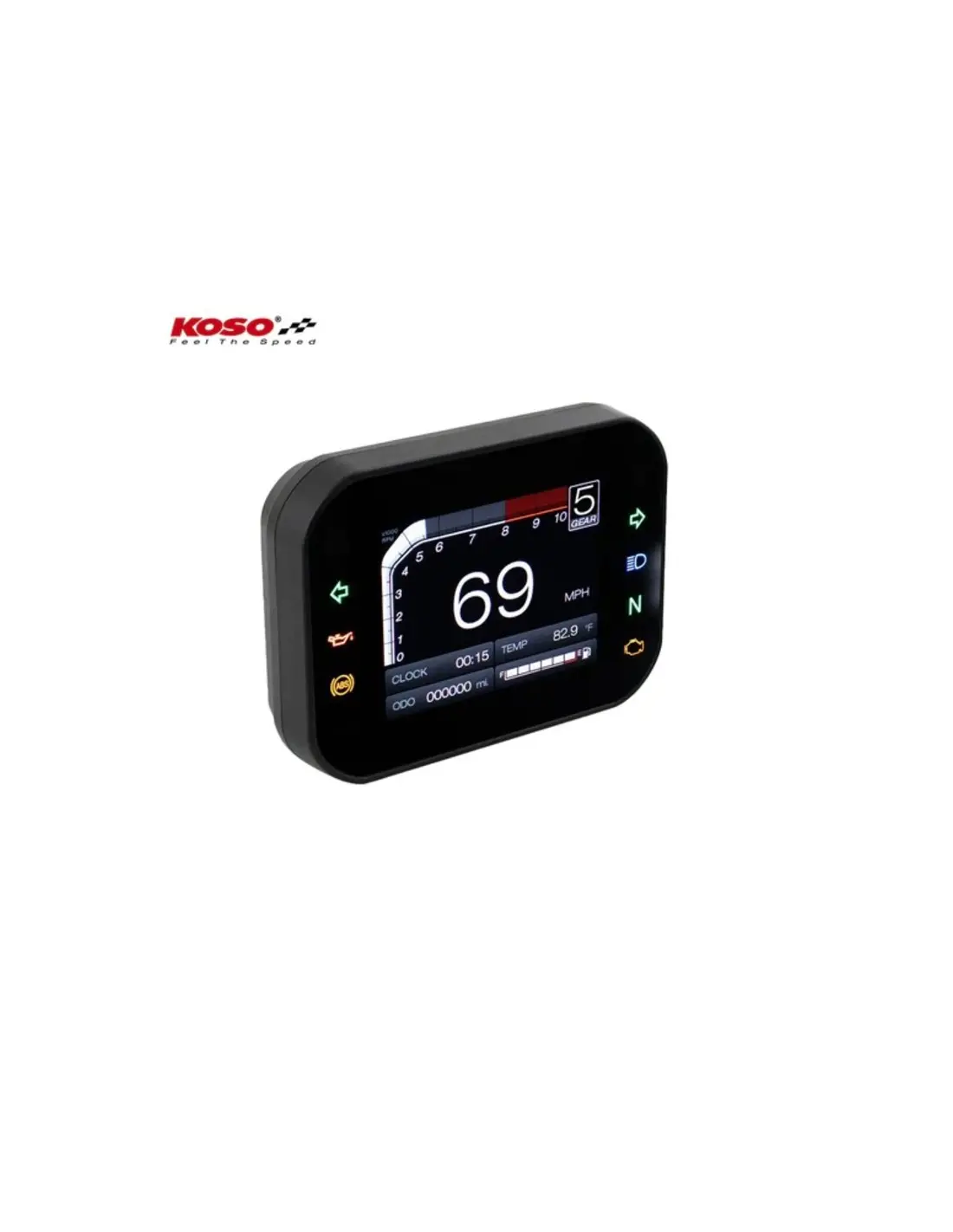

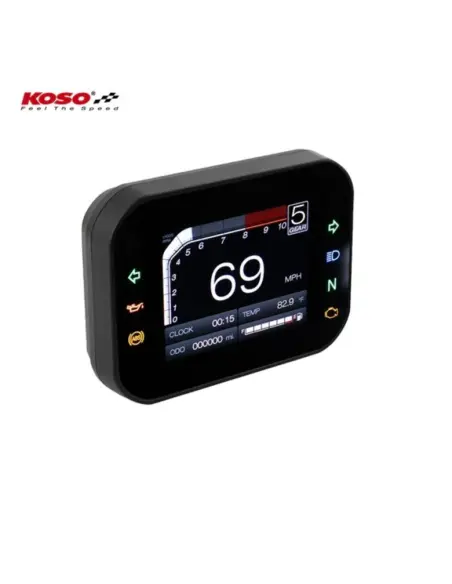

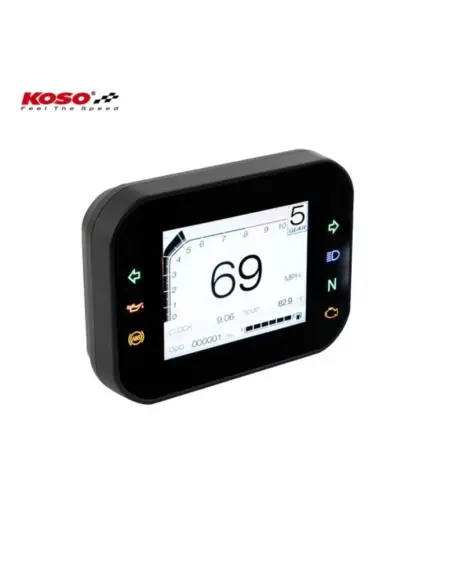

KOSO RX-3S MULTIFUNCTION TFT GAUGE 15,000 RPM WITH 3.5-INCH COLOR DISPLAY

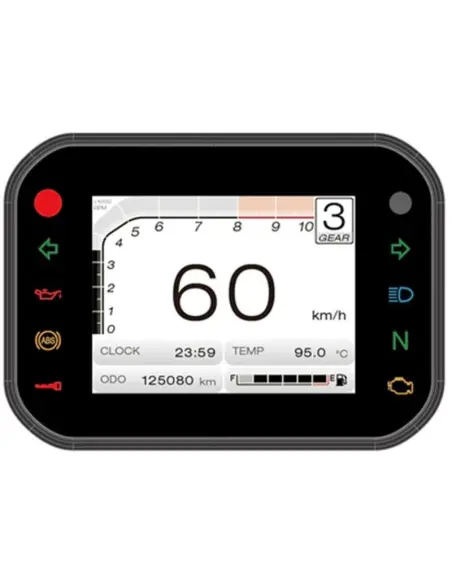

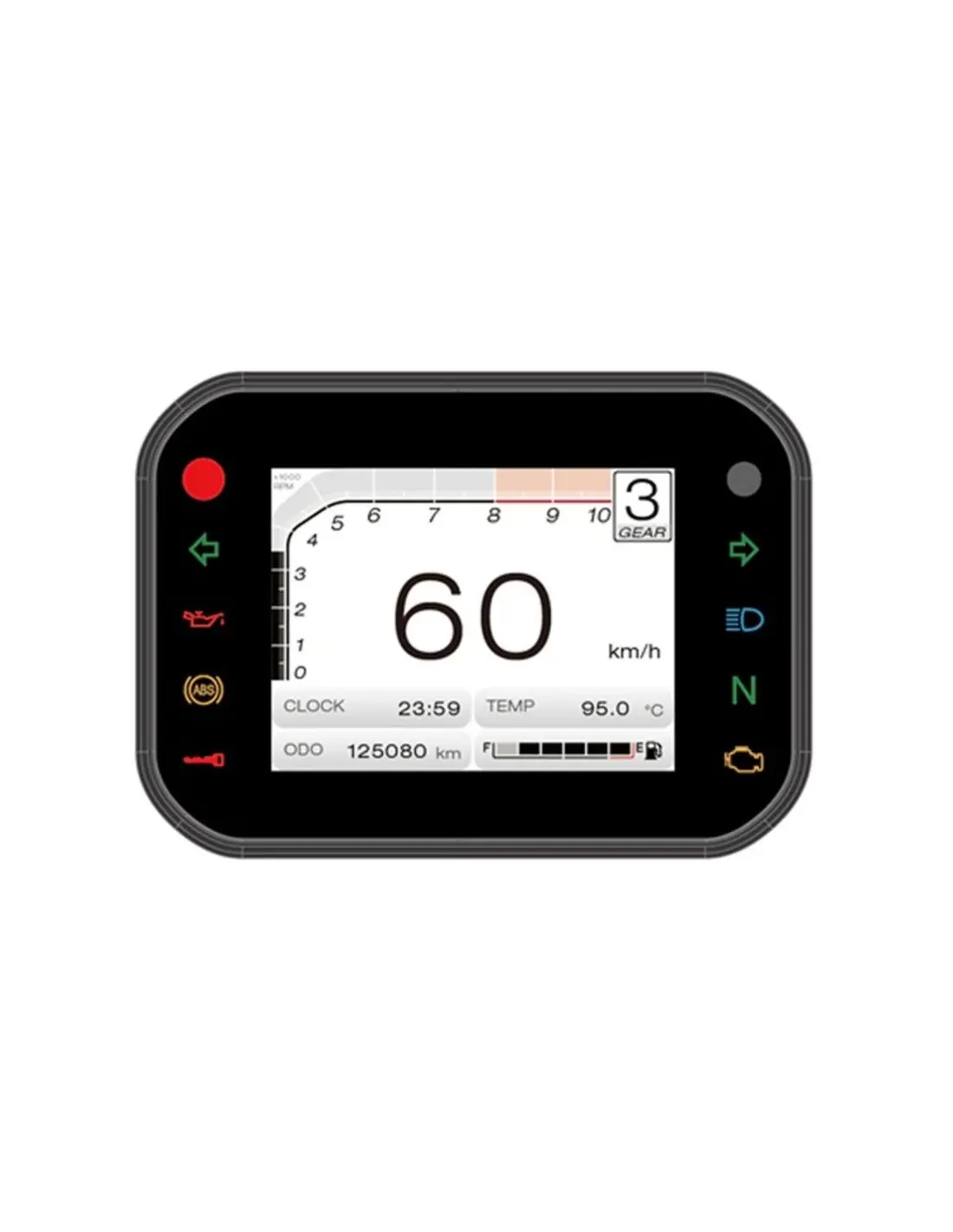

Upgrade your motorcycle, trike or scooter instrumentation with the Koso RX-3S multifunction gauge. Its 3.5-inch color TFT-LCD display combines essential riding information in a compact format, from speed and RPM to temperature, voltage, fuel level and selected gear. A complete digital instrument cluster designed to monitor all key data at a glance.

Main features

• Display: 3.5-inch color TFT-LCD with automatic day/night mode and 5 brightness levels.
• Speedometer: from 0 to 225 MPH or 0 to 360 km/h, with interchangeable units.
• Tachometer: up to 15,000 RPM, with shift light configurable in 100 RPM increments.
• Odometer: up to 99,999 miles or km; A/B trip odometers up to 9,999.9 miles or km.
• Temperature: reading from 0 to 250 °C with overheating warning.
• Voltmeter: from 8.0 to 18.0 V with low- and over-voltage alerts.
• Indicators: adjustable 6-level fuel gauge, air/fuel ratio from 12.1 to 17.5, adaptive gear indicator with automatic calibration and warning lights.

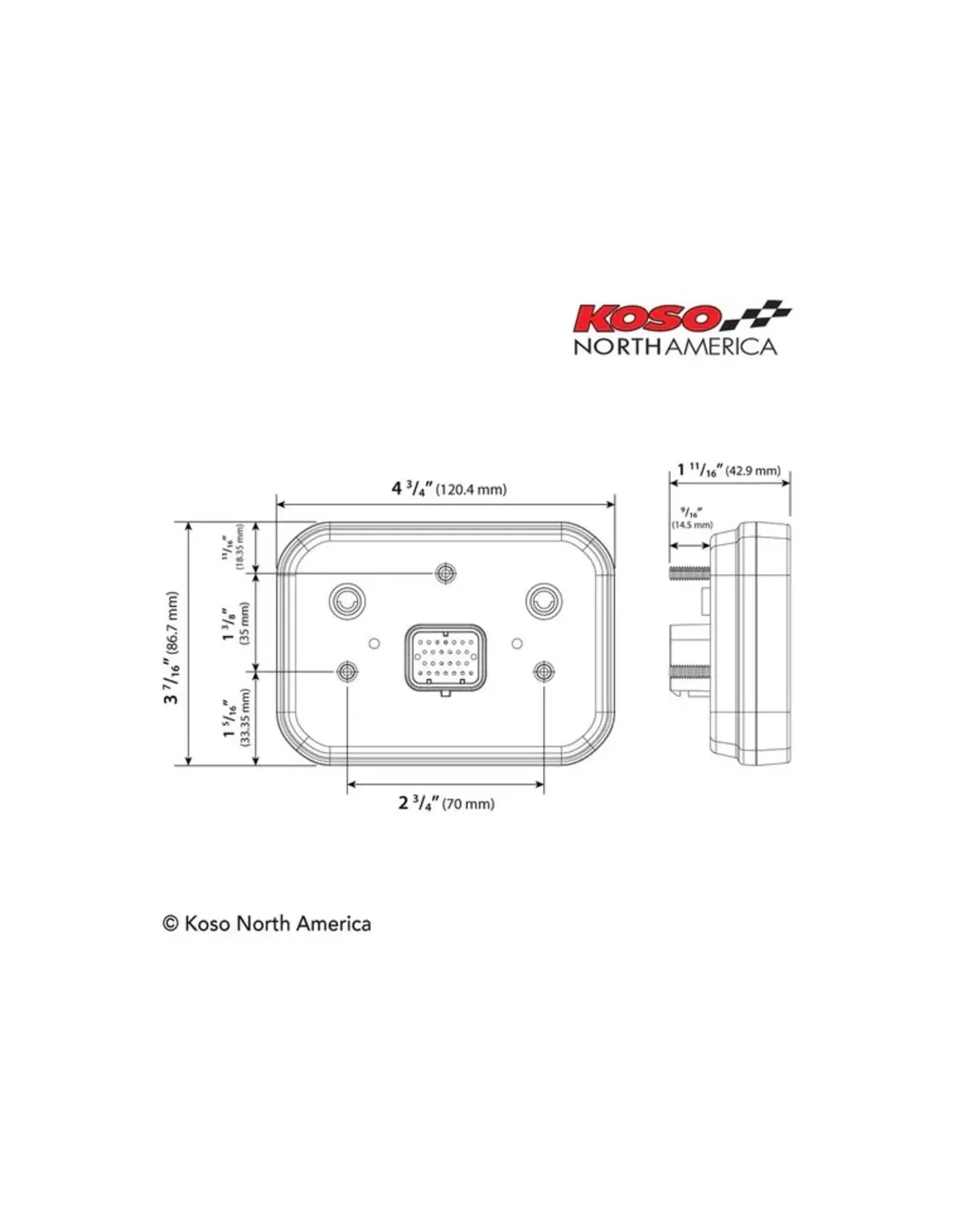

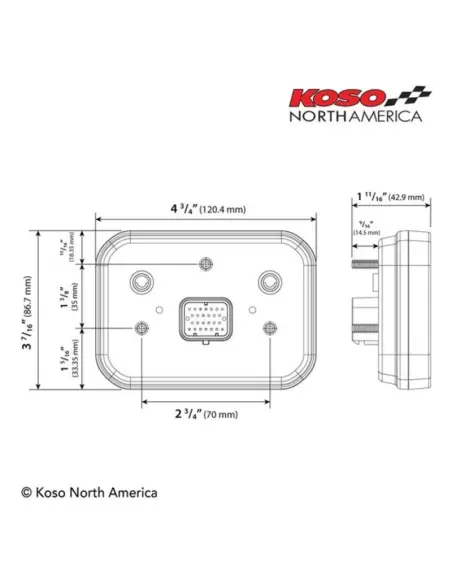

• Dimensions and weight: 140.9 × 90.9 × 45.3 mm; approximate weight 188 g.
• Power supply: DC 12 V. Operating temperature from -10 to +60 °C. JIS D 0203 (S2) protection.

Use and features

• Includes target speed, target distance, speed warning and recording functions, plus an adjustable oil change interval.
• Allows tire circumference adjustment between 300 and 2,500 mm.

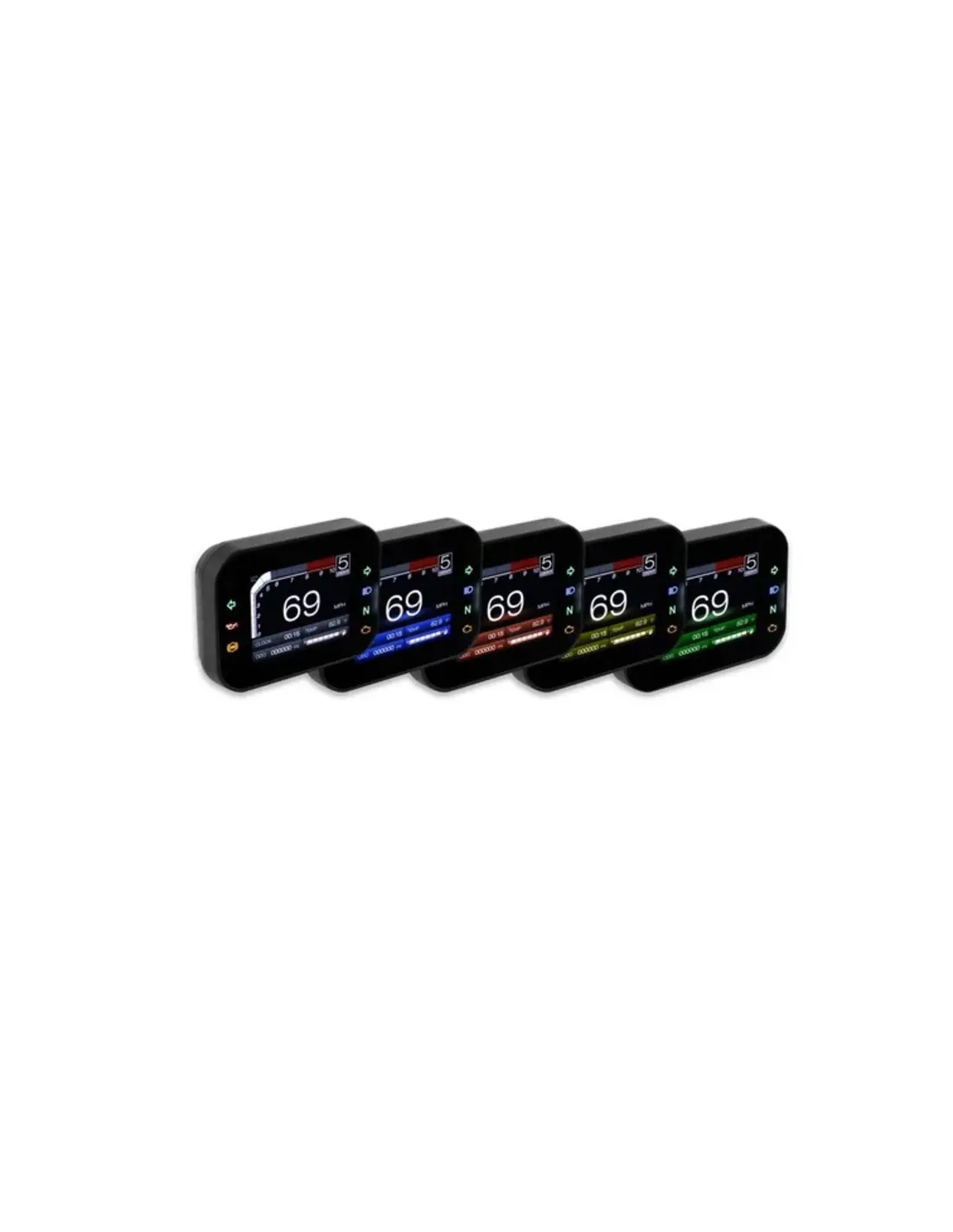

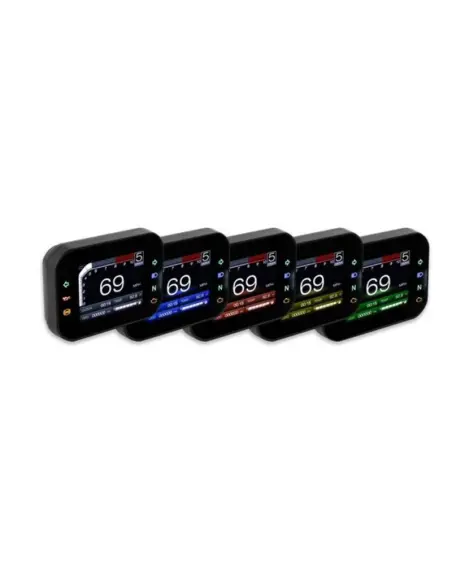

• Features selectable white, red, orange, green or blue backlighting.

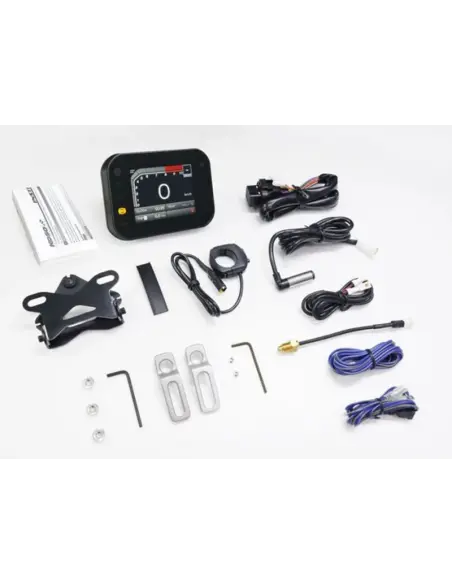

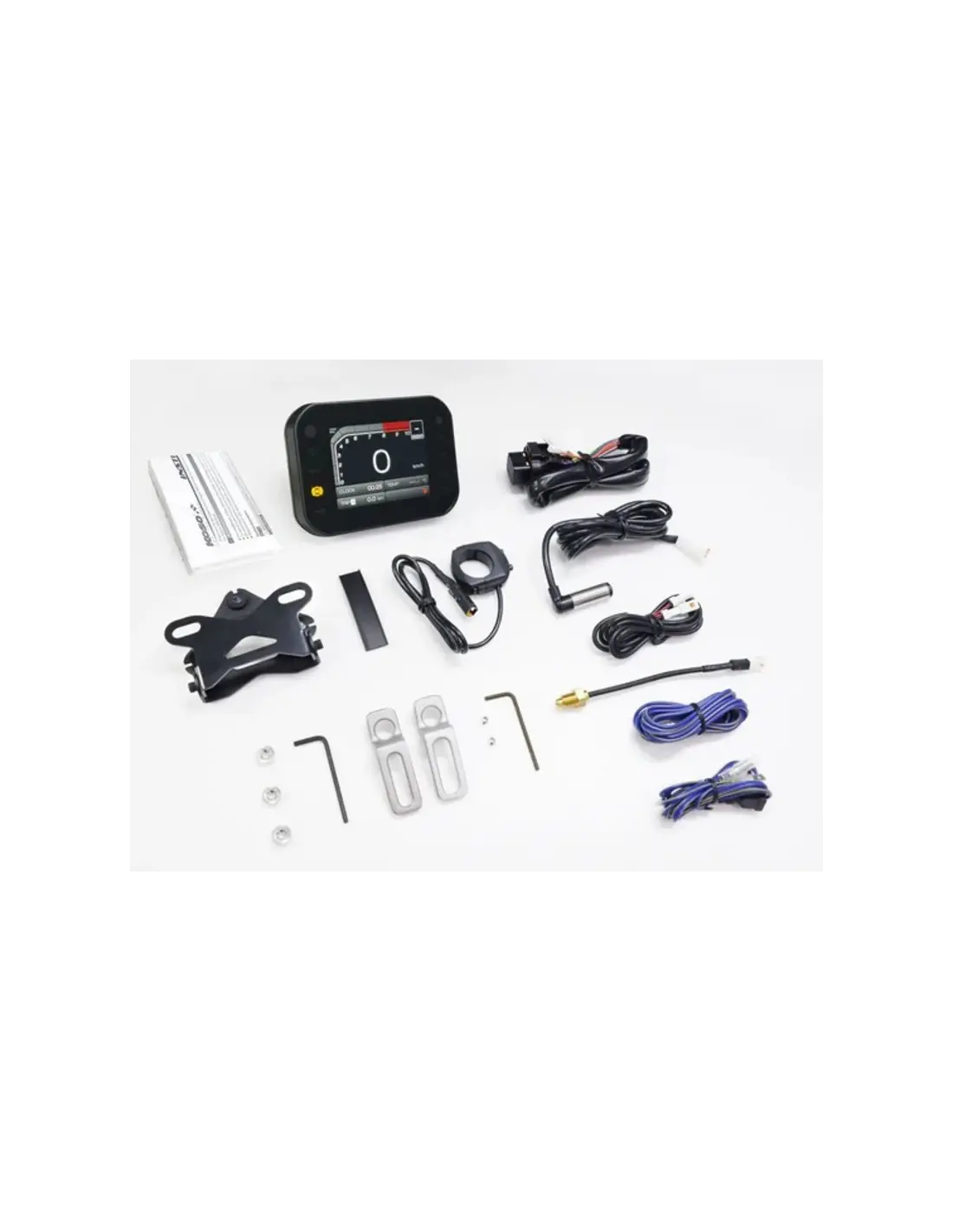

• Includes main harness, active speed sensor, temperature sensor, cables, external switch, brackets and mounting hardware.

Compatibility / recommended use

• Compatibility not specified. Recommended for 12 V instrumentation installations on motorcycles, trikes and scooters, after checking the connections and mounting requirements beforehand.
