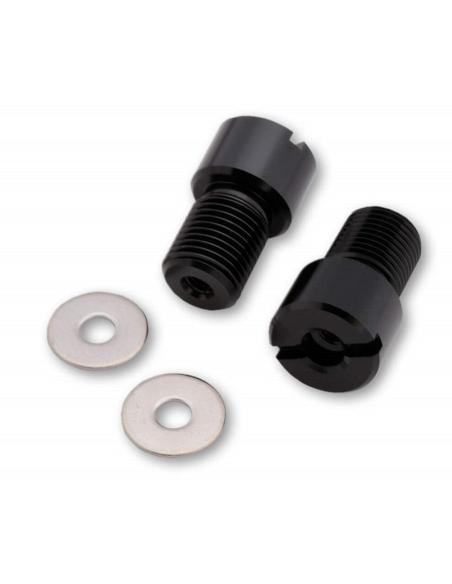

HIGHSIDER M16 ADAPTER FOR YAMAHA MODELS HANDLEBAR END

HIGHSIDER M16 ADAPTER FOR YAMAHA MODELS HANDLEBAR END

This special accessory kit allows you to mount the popular HIGHSIDER bar end weights, bar end mirrors or lever guards to the original handlebars of Yamaha motorcycles.

Screw the M 16 x 1.5 threaded bushings with M6 internal thread into the handlebar thread with a suitable flat screwdriver.

Now HIGHSIDER handlebar accessories can be mounted on Yamaha handlebars with a central M6 bolt.

The washers included in the kit can be used to create a sufficiently large distance between the handle and the accessory.

Dimensions:

Adapter thread:

Outside: M16 x 1.5

Thread length: 17mm

Adapter:

Overall diameter: 20.9mm

Length: 35mm

Inside: M6

Diameter:

Outer diameter: 19mm

Inner diameter: 8.5mm

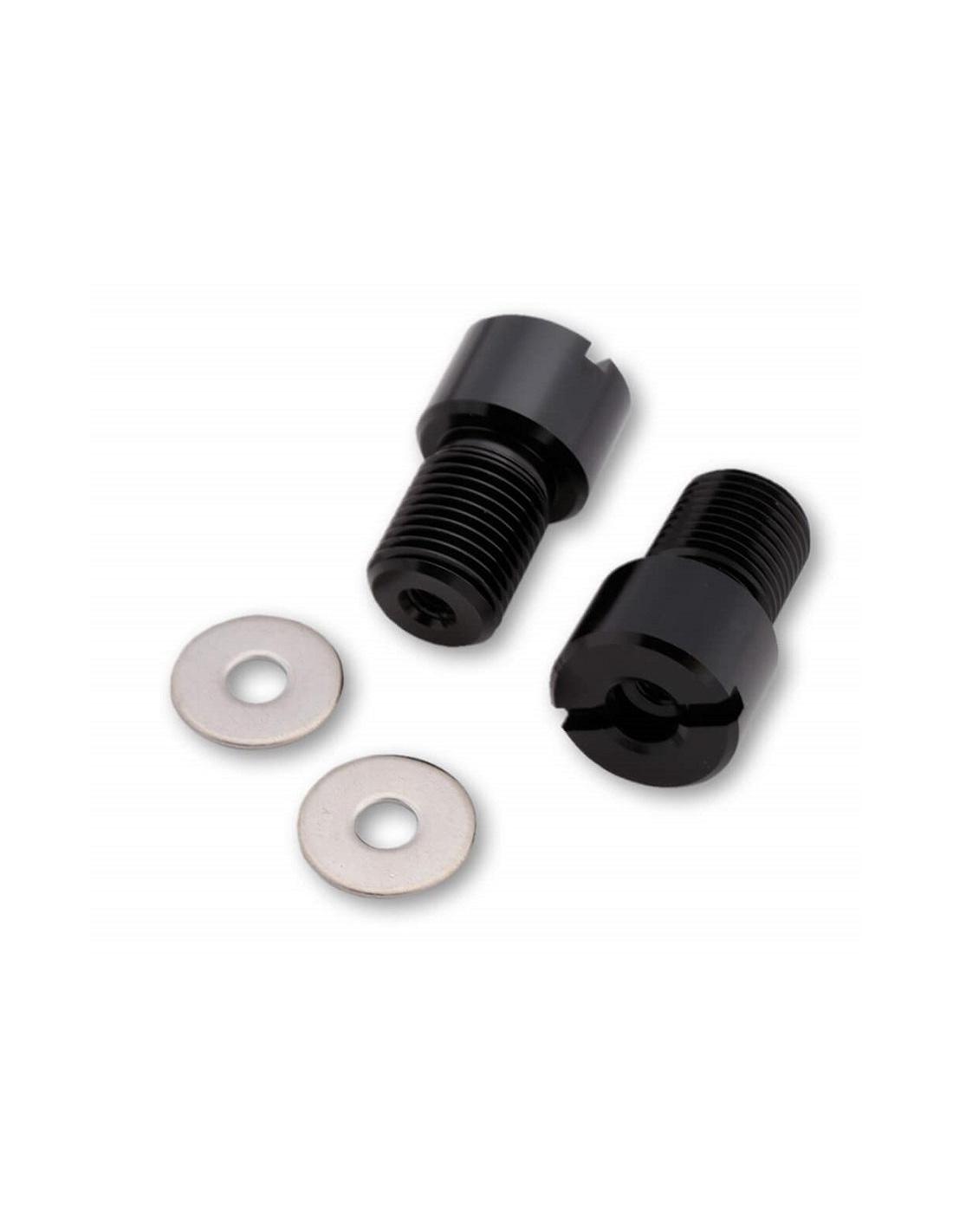

The package includes:

2 adapters

2 washers
