REPAIR KIT FOR 11/16" HYDRAULIC CLUTCH MASTER CYLINDER HARLEY-DAVIDSON

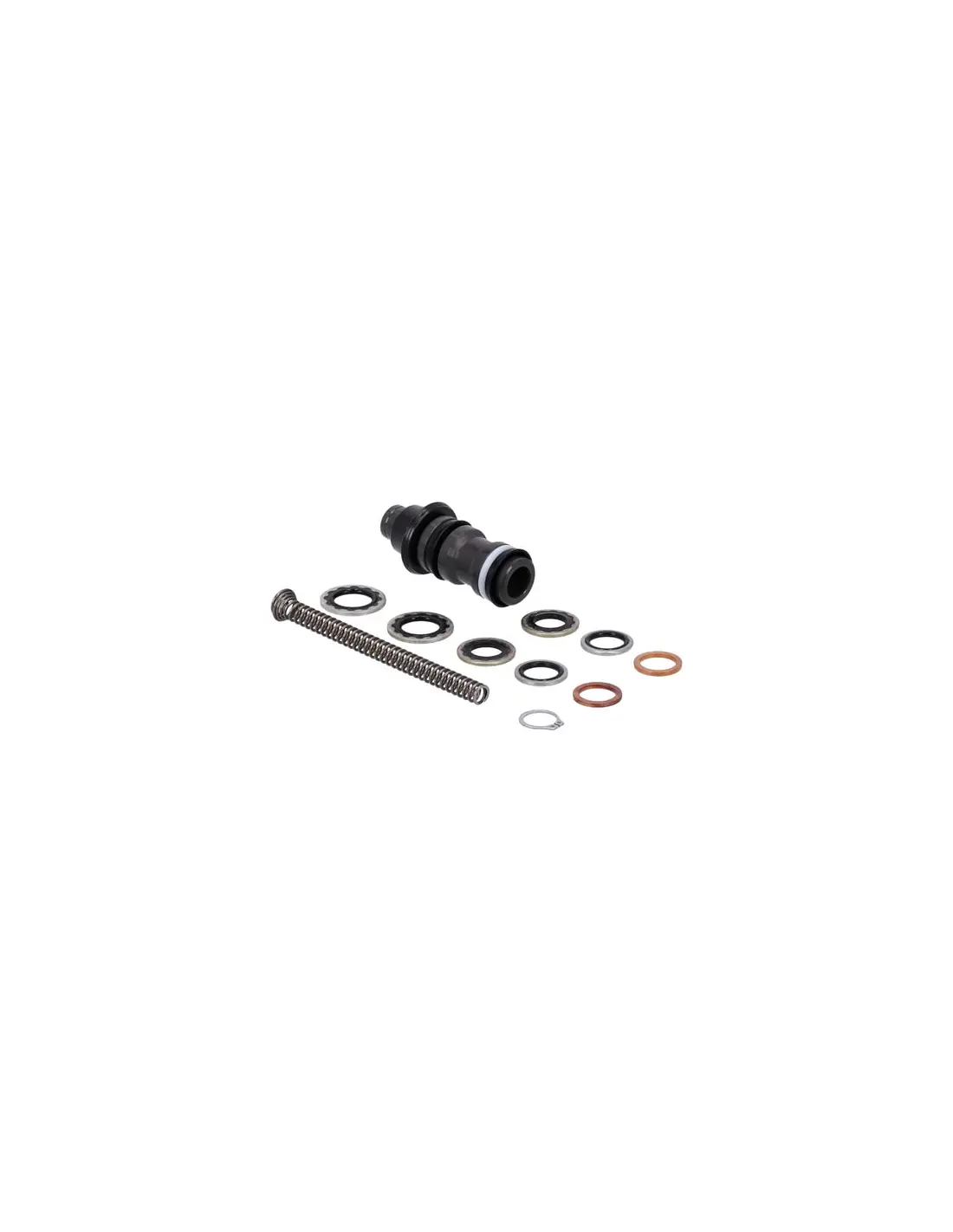

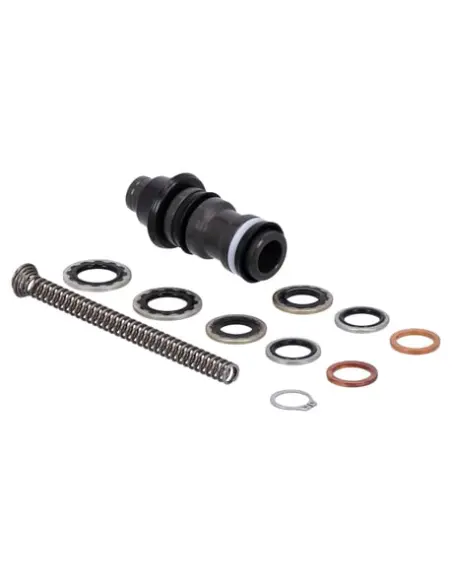

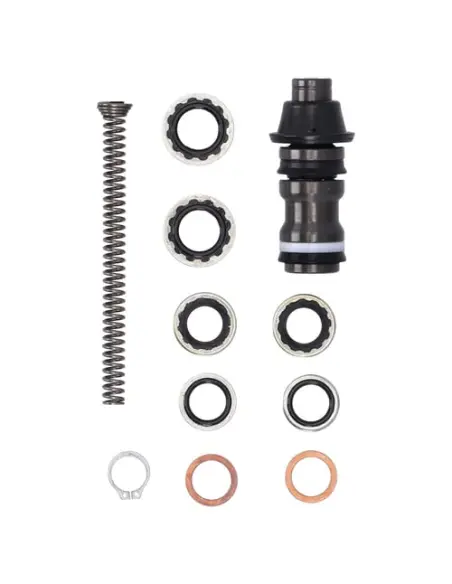

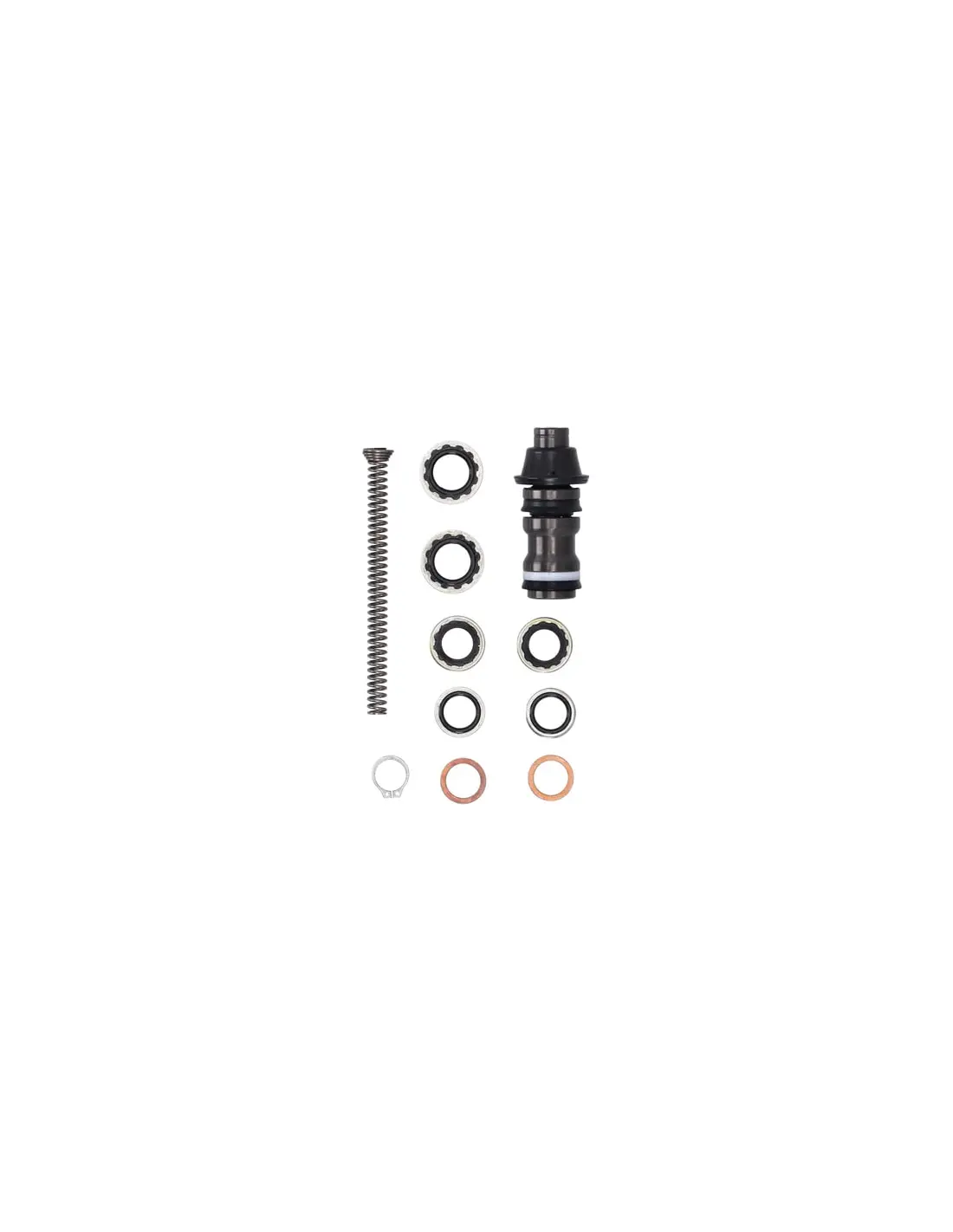

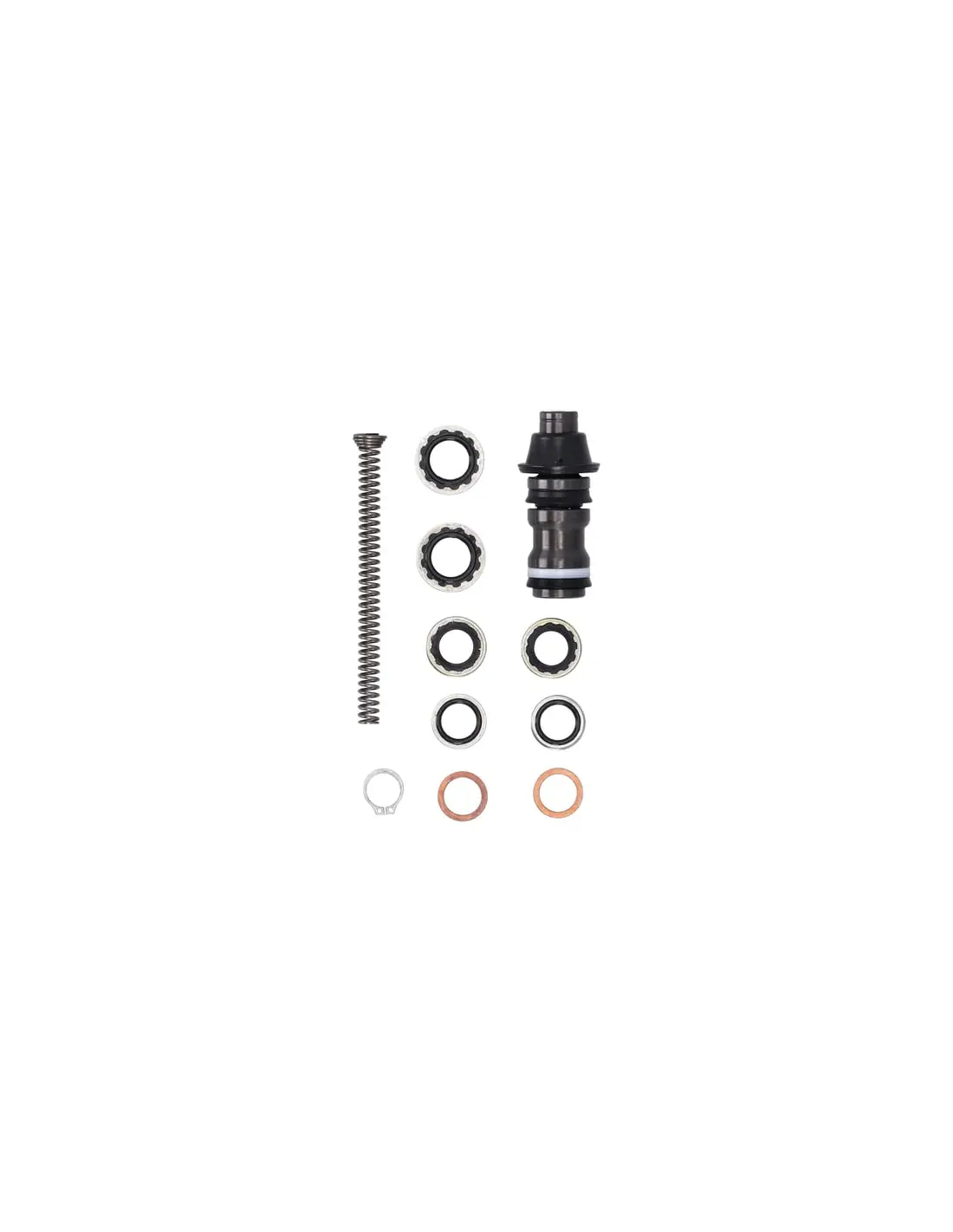

Repair kit for Harley-Davidson 11/16" hydraulic clutch master cylinder

Restore a firm, precise, and progressive clutch operation with this repair kit for the hydraulic master cylinder located on the handlebar. Designed as an OEM-style replacement, it allows you to renew the internal components of master cylinders with a 11/16 inch diameter without necessarily having to replace the entire assembly.

The kit is intended exclusively for motorcycles equipped with a hydraulic clutch and corresponds to the application of OEM reference 37200096B. It is a recommended solution for maintenance or rebuild jobs when the master cylinder shows wear, leaks, or loss of pressure.

Main features

• Repair kit for hydraulic clutch master cylinder.
• Master cylinder inner diameter of 11/16".
• Mounts on the master cylinder located on the handlebar.
• OEM-style replacement design.
• Allows you to rebuild the original master cylinder.
• Compatible exclusively with hydraulic clutch systems.
• Replaces OEM reference 37200096B.
• Does not include the complete clutch master cylinder.

Technical data

Harley-Davidson compatibility

Compatible with the following models equipped with hydraulic clutch:

• Harley-Davidson FLT / Touring with fairing: 2014-2016.
• Selected Harley-Davidson CVO Softail: 2003-2015.
• Selected Harley-Davidson CVO Dyna: 2003-2015.
• Harley-Davidson V-Rod: 2002-2017.

Not compatible with models equipped with cable-operated clutch. For CVO Softail and Dyna applications, the motorcycle must have a hydraulic system and compatible 11/16" master cylinder.

Before ordering, check the exact model, year, clutch actuation type, master cylinder diameter, and the reference of the installed component.

OEM reference

This kit replaces the application corresponding to Harley-Davidson reference 37200096B. The OEM reference is indicated solely to facilitate identification of the compatible replacement; the product is not presented as an original Harley-Davidson part.

Installation and safety

Rebuilding the master cylinder requires carefully disassembling and cleaning the assembly, checking the condition of the cylinder, and installing the internal components in the correct order and orientation. Only the fluid specified in the motorcycle's service manual should be used.

After assembly, completely bleed the hydraulic circuit and check that the lever maintains pressure, that the clutch disengages correctly, and that there are no leaks.

Installation by a qualified professional is recommended. Incorrect assembly or bleeding may affect clutch operation and riding safety.
