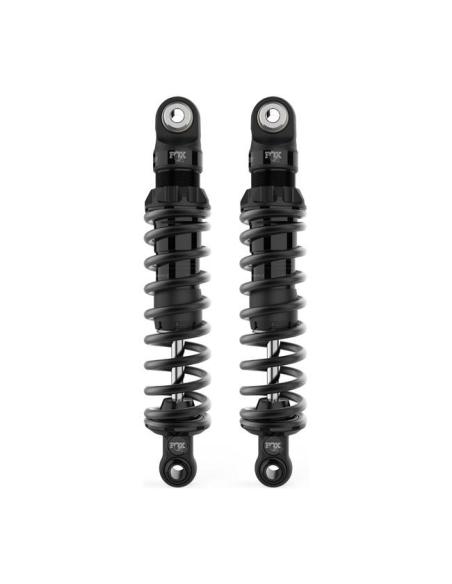

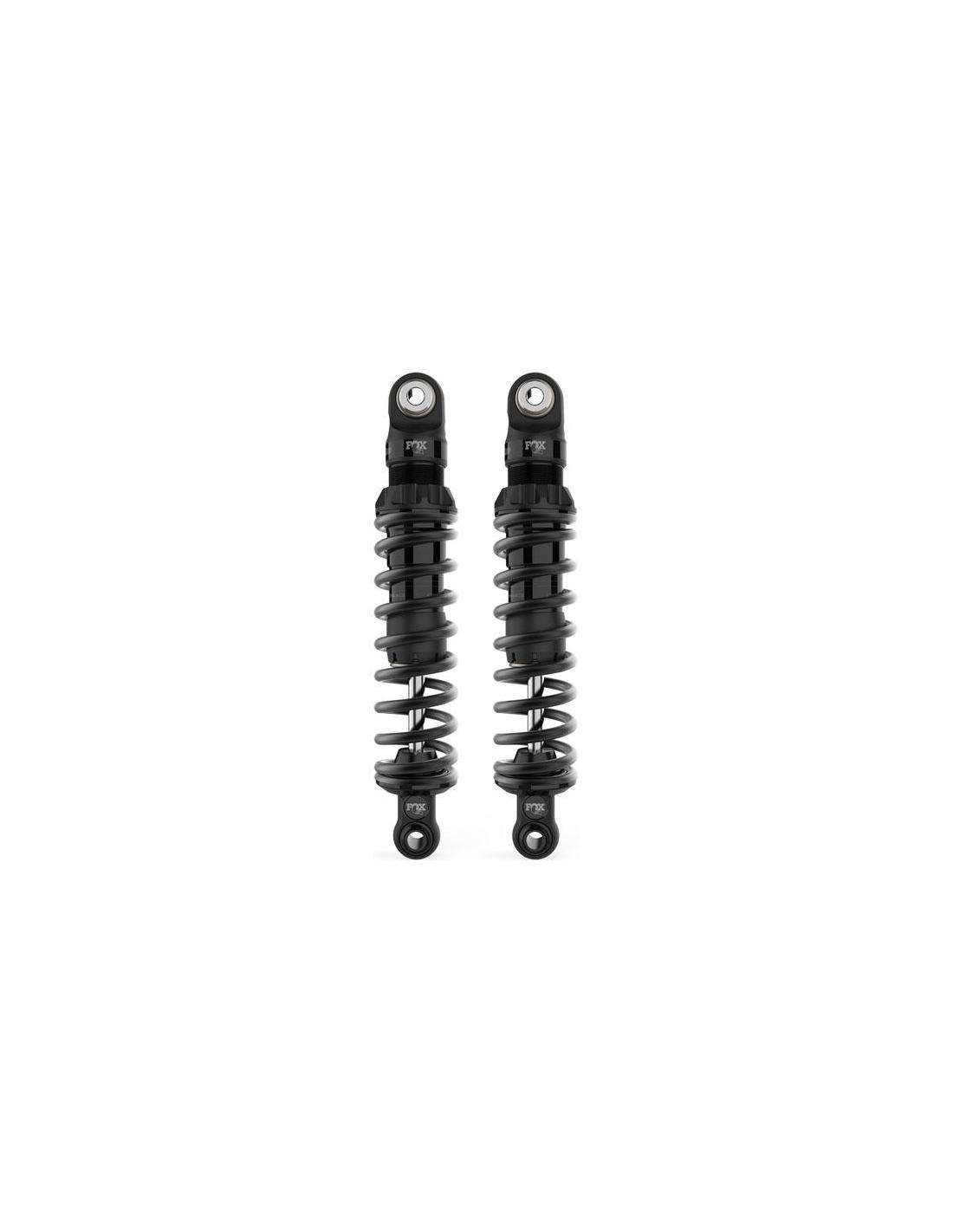

FOX IFP SHOCK ABSORBERS 13? BLACK XL SPORTSTER 1998–2022 (NU)
FOX IFP 13? Shocks for Sportster 1998–2022 (NU). Increased height for extra clearance and agility. Mono-tube IFP, hard-anodized Ø1.5? aluminum body, hard chrome Ø1/2? shaft, and preload adjustment with guide marks. Includes a tool to adjust preload without leaving marks.
Stock disponible en proveedor
Entrega rápida.
Pregúntanos por WhatsApp
Disponibilidad en nuestras tiendas
Consultando disponibilidad...
Height, Control, and FOX Feel for your Sportster. The FOX IFP 13? lift the rear end for more ground clearance and a more agile response in directional changes. The mono-tube architecture with an Internal Floating Piston (IFP) separates gas from oil, preventing foaming and maintaining consistent damping even on long stretches.
They feature linear STD springs for typical loads ?109 kg, adjustable preload with guide marks and included tool (a plastic preload wrench that doesn't mark). The 6061-T6 aluminum body Ø1.5? with Type III hard anodizing enhances thermal dissipation, while the Ø1/2? hard chrome-plated and super-finished shaft reduces friction and improves initial sensitivity.
Technical Specifications
| Application | Harley-Davidson XL Sportster 1998–2022 (NU) |
|---|---|
| Length | 13? (raised height) |
| Architecture | Mono-tube gas (IFP), deflective disc valves |
| Adjustments | Preload (includes wrench), with guide marks |
| Body | 6061-T6 aluminum Ø1.5?, Type III hard anodized |
| Shaft | Ø1/2? hard chrome-plated, low friction |
| Spring | Standard Duty Linear Rate |
| Rebuildable | 100% rebuildable and re-valvable |
| Includes | Plastic preload wrench (non-marking) |
| Finish | Matte black spring · Black anodized preload ring |
Benefits
- Increased lean angle and agility.
- Consistent hydraulics thanks to IFP.
- Quick and clean preload adjustment.
Installation and Tuning
- Adjust sag (25–35% of travel) with rider on board.
- Check clearances with fender and tire at full compression.
Compatibility
- XL Sportster 1998–2022 (NU)
