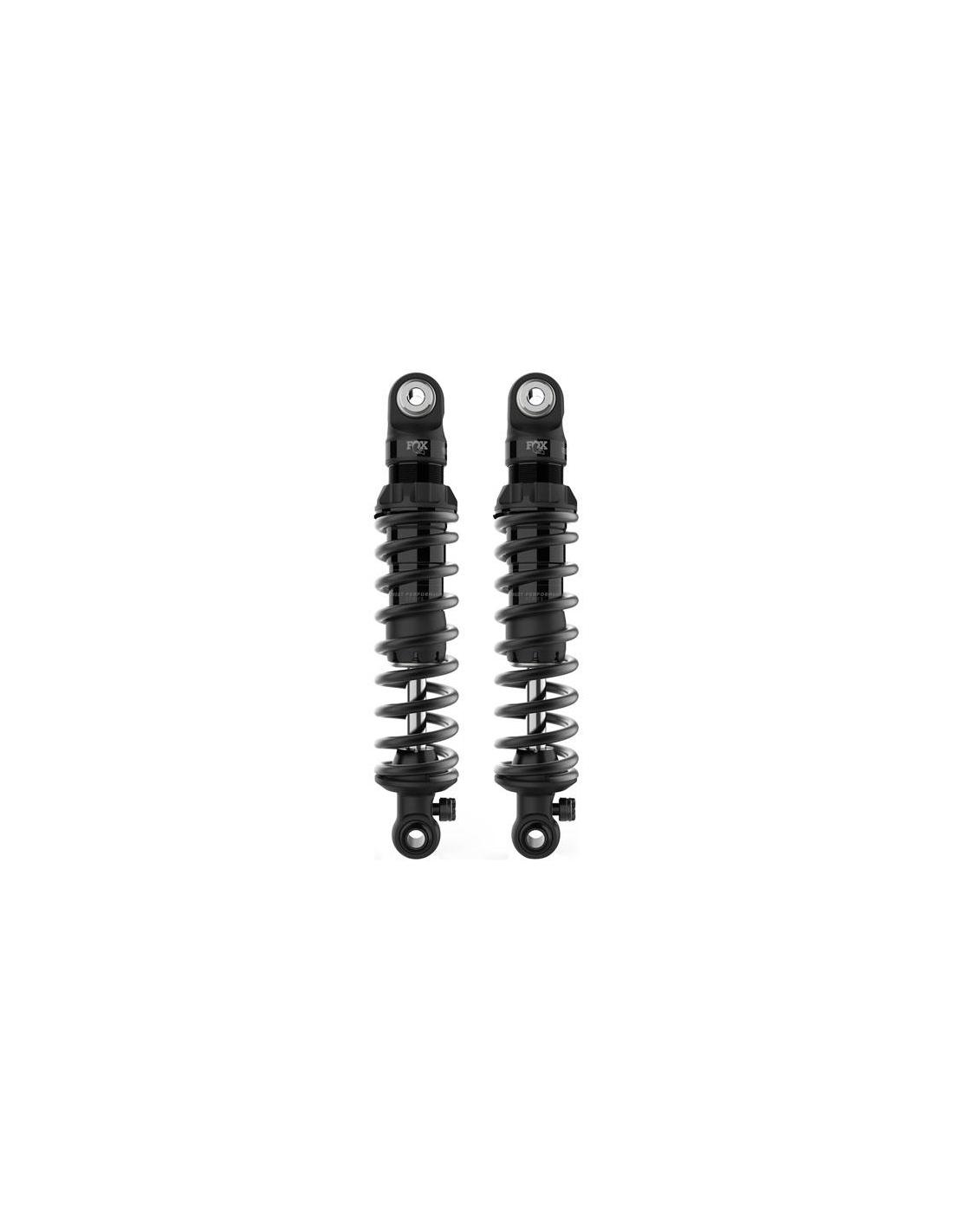

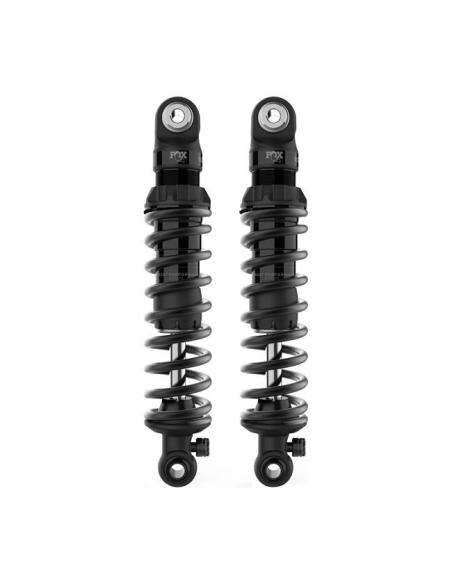

FOX IFP-R SHOCKS 13? BLACK XL SPORTSTER 1998–2022 (NU)
FOX IFP-R 13? for Sportster 1998–2022 (NU). Boost your height to gain angle and control, with a 24-position rebound adjustment, IFP mono-tube, Ø1.5? body, and Ø5/8? shaft. Standard spring and preload with guide marks.
Stock disponible en proveedor
Entrega rápida.
Pregúntanos por WhatsApp
Disponibilidad en nuestras tiendas
Consultando disponibilidad...
More control with wide rebound adjustment. The FOX IFP-R 13? raise the rear end for greater ground clearance and stability in corners, adding a 24-click rebound adjustment to fine-tune the extension according to terrain and load. The IFP architecture keeps damping consistent during extended use.
The 6061-T6 aluminum body Ø1.5? with Type III hard anodizing and the Ø5/8? hard chrome shaft reduce friction and enhance thermal management. Includes a non-marring preload wrench and guide marks for precise sag setting. Linear STD spring (?240 lbs).
Technical Specifications
| Application | Harley-Davidson XL Sportster 1998–2022 (NU) |
|---|---|
| Length | 13? (raised height) |
| Architecture | Mono-tube gas (IFP) |
| Adjustments | Rebound 24 positions · Preload |
| Body | 6061-T6 aluminum Ø1.5?, Type III hard anodized |
| Shaft | Ø5/8? hard chrome |
| Spring | Standard Duty linear rate |
| Rebuildable | 100% rebuildable and re-valvable |
| Includes | Plastic preload wrench |
Benefits
- Leaning angle and cornering stability.
- Wide rebound adjustment (24 clicks) for versatile use.
- Stable hydraulics due to gas/oil separation.
Entry point to setup
- Base: Rebound 10/24 · sag 25–30%.
- Open 2 clicks if the bike doesn't absorb bumps; close 2–3 if it bottoms out.
