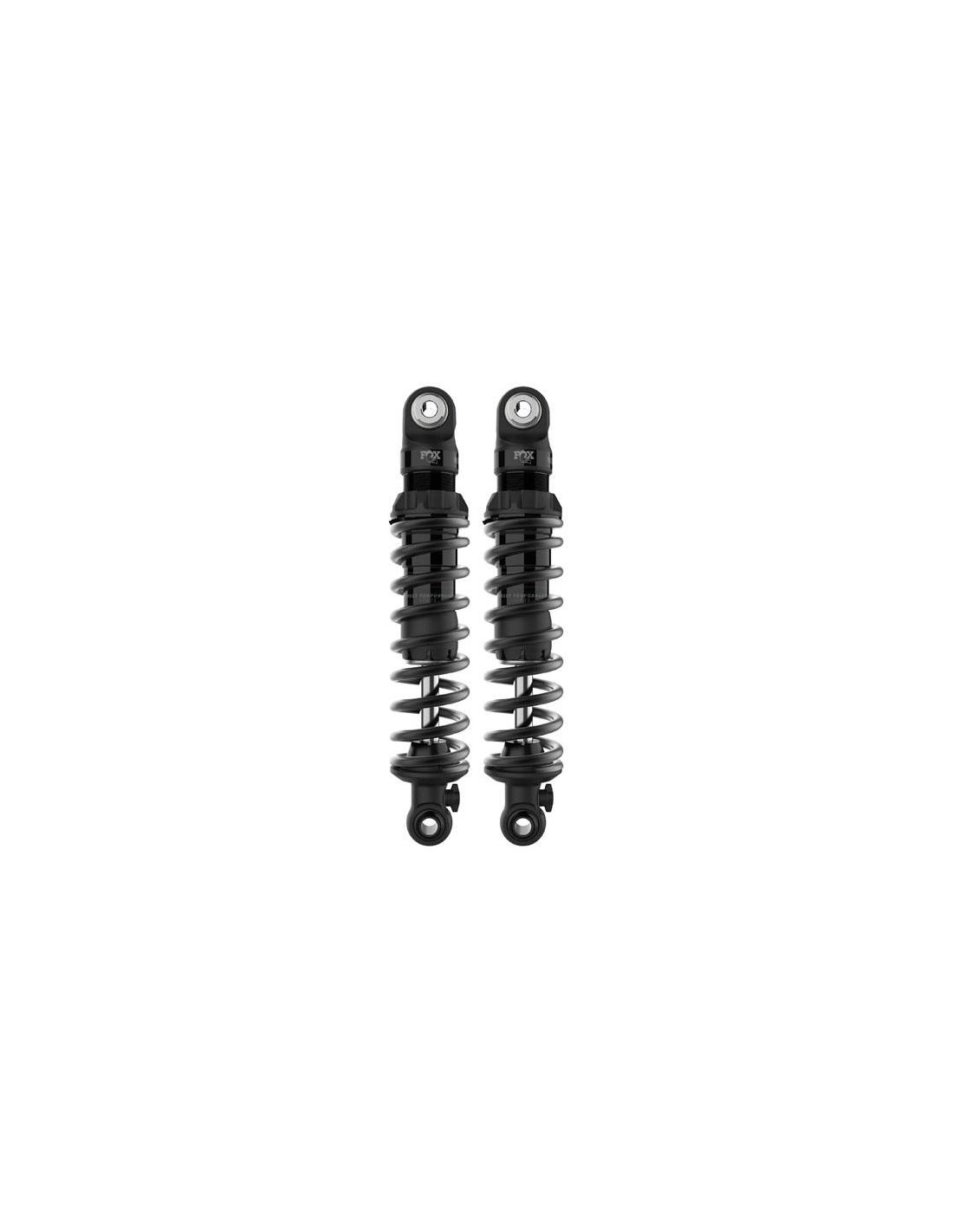

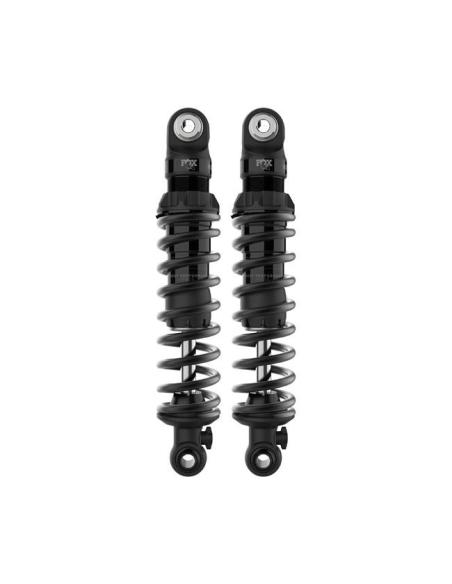

FOX IFP-QSR 13.5? BLACK SHOCKS DYNA 1991–2017 (NU)
FOX IFP-QSR 13.5? for Dyna 1991–2017 (NU). Boosts height for greater angle and control. 3-position QSR rebound selector, IFP mono-tube, Ø1.5? body, Ø5/8? shaft, STD linear spring, and preload with guide marks.
Stock disponible en proveedor
Entrega rápida.
Pregúntanos por WhatsApp
Disponibilidad en nuestras tiendas
Consultando disponibilidad...
Height and Quick Adjustment. The FOX IFP-QSR 13.5? raise the rear to increase ground clearance and stability in turns. The QSR (Quick Switch Rebound) selector allows you to adjust the rebound in 3 positions without tools: Soft (comfort), Medium (balance), and Hard (firm support).
The mono-tube architecture with internal floating piston (IFP) separates gas and oil, preventing foaming and maintaining consistent damping. The 6061-T6 Ø1.5? body with TIII hard anodizing and the Ø5/8? shaft with hard chrome provide thermal dissipation and low friction. Preload with guide marks and included wrench.
Technical Specifications
| Application | Harley-Davidson Dyna 1991–2017 (NU) |
|---|---|
| Length | 13.5? (raised height) |
| Architecture | Mono-tube gas (IFP) |
| Adjustments | QSR Rebound 3 positions · Preload |
| Body | 6061-T6 Ø1.5?, TIII hard anodized |
| Shaft | Ø5/8? hard chrome |
| Spring | Standard Duty Linear |
| Rebuild | 100% rebuildable and re-valvable |
Compatibility
- Dyna 1991–2017 (NU)
Benefits
- More lean angle and stability.
- Instant rebound adjustment (QSR).
- Stable hydraulics (IFP) on long rides.
Setup
- Base: QSR Medium · sag 25–30%.
- Soft for bumps; Hard for smooth asphalt.
