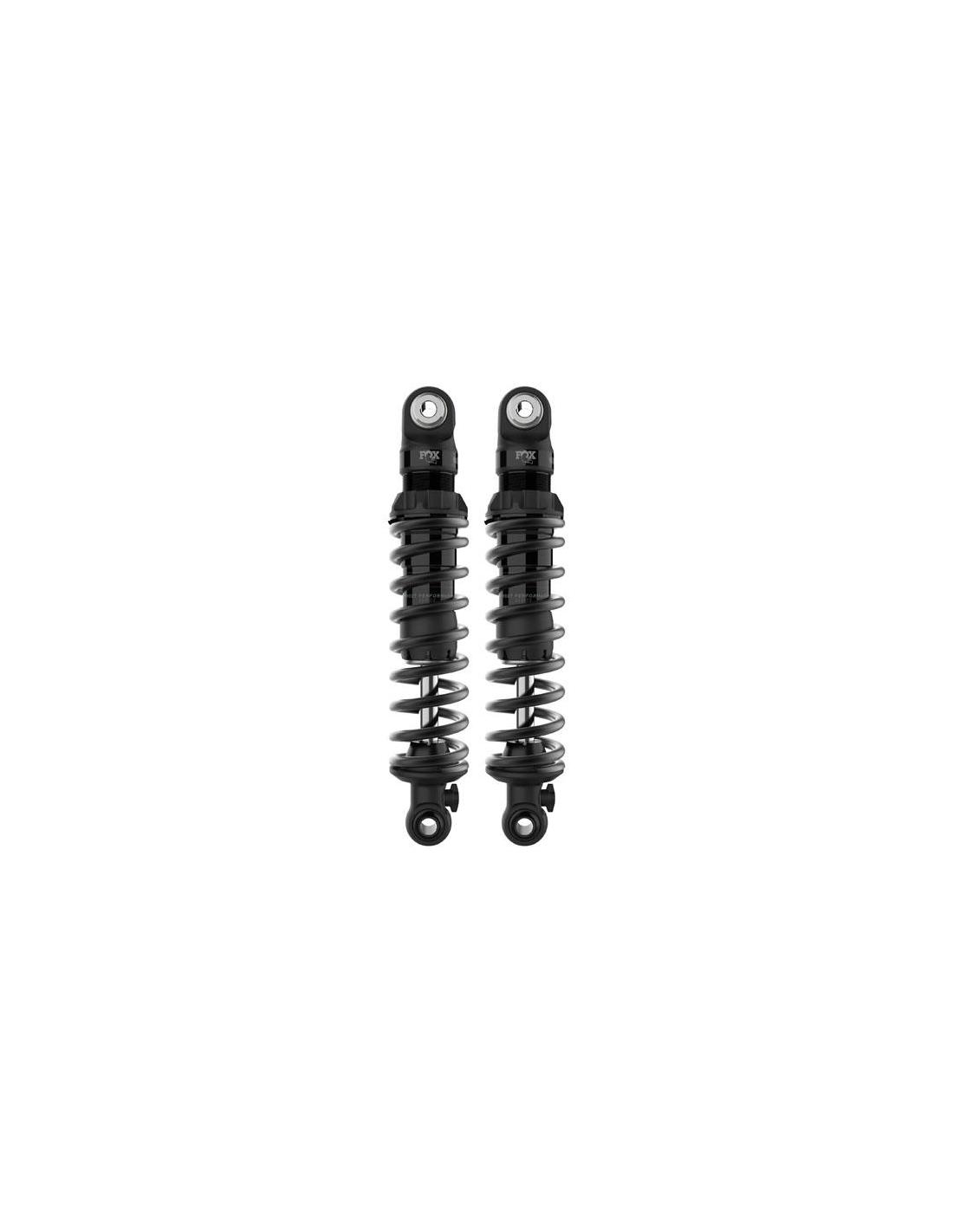

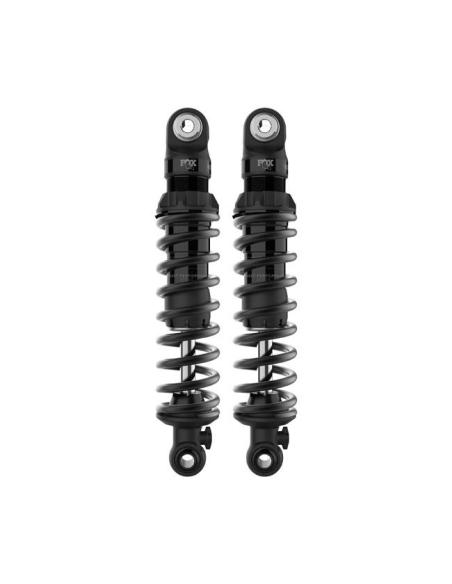

FOX SHOCKS IFP-R 12? LOW STD FLT/TOURING 1993–2024
FOX IFP-R 12? LOW for Touring 1993–2024 with STD springs (?240 lbs). Lowered height, 3-position switchable rebound, IFP mono-tube, body Ø1.5?, shaft Ø5/8?, and preload with guide marks.
Stock disponible en proveedor
Entrega rápida.
Pregúntanos por WhatsApp
Disponibilidad en nuestras tiendas
Consultando disponibilidad...
Lower your Touring, control the rebound. The FOX IFP-R 12? LOW reduces the height for a more accessible seat and a lower center of gravity. The 3-position rebound (QSR) selector makes it easy to adjust the extension for road and load. The IFP system keeps the damping stable on long rides.
Technical Sheet
| Application | Harley-Davidson FLT/Touring 1993–2024 |
|---|---|
| Length | 12? (lowered height) |
| Architecture | Mono-tube gas (IFP) |
| Adjustments | 3-position rebound · Preload |
| Body | 6061-T6 Ø1.5?, hard anodized TIII |
| Shaft | Ø5/8? hard chrome |
| Spring | Linear STD (?109 kg) |
| Rebuild | 100% rebuildable and re-valvable |
| Ref. | MCS 599077 |
Compatibility
- FLT/Touring 1993–2024
Benefits
- Low look with predictable control.
- Quick rebound adjustment (3 positions).
- Comfort sustained by IFP.
Notes
- Check clearance for footpegs/stand.
