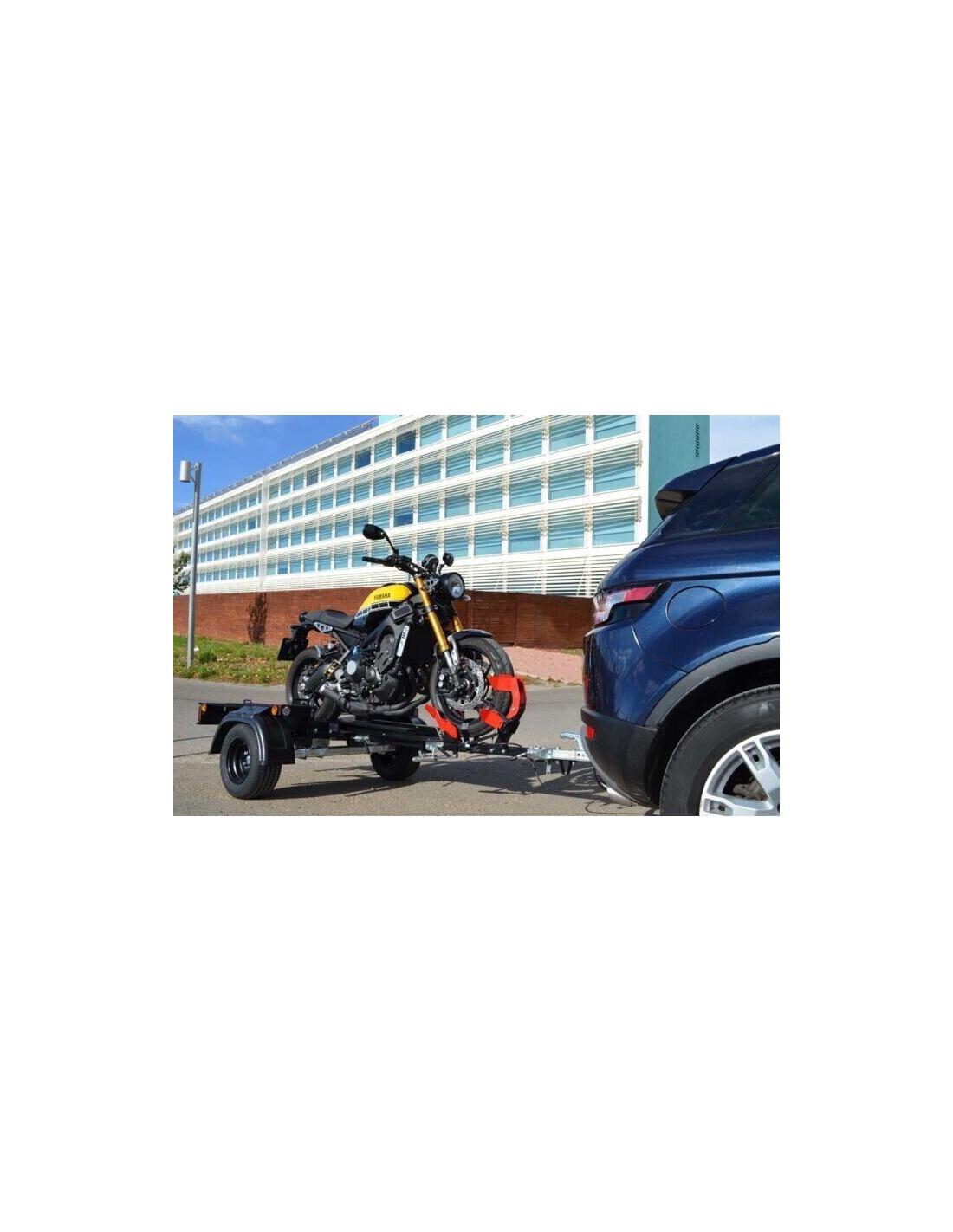

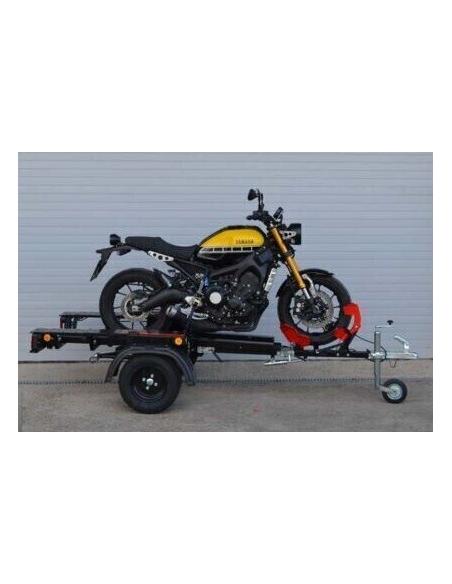

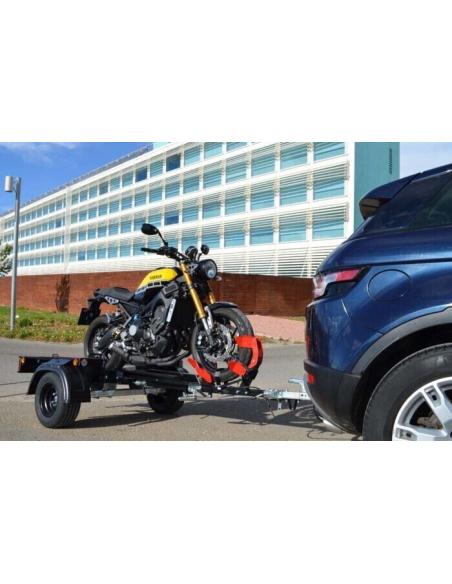

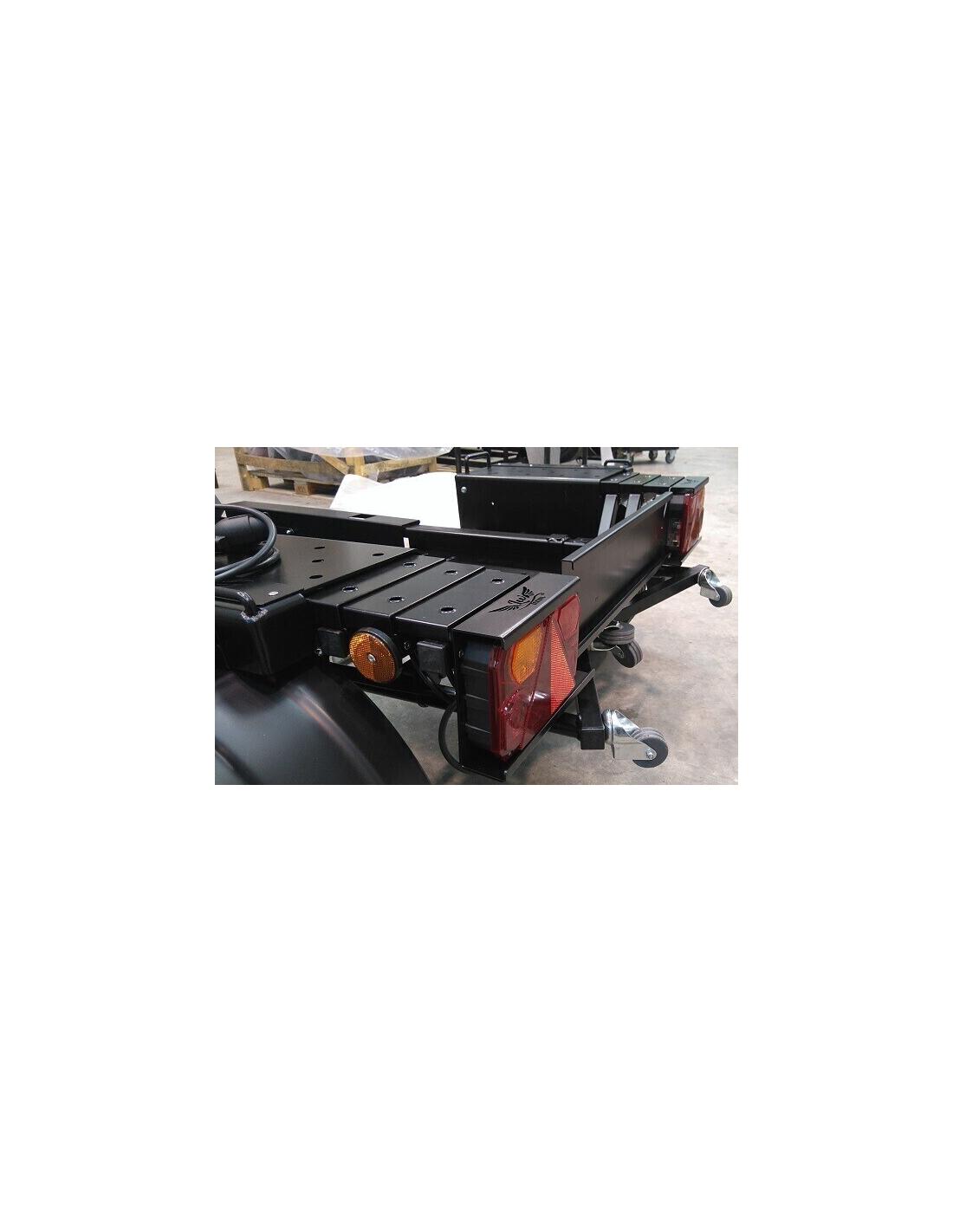

LITTLEWAY PLUS Folding Trailer

Its folding and telescopic design saves space when picking it up. Great stability and total autonomy for loading and unloading the bike.

It is approved and patented for the EU.

The trailer has a hydraulic stabilizer to make loading and unloading the motorcycle smoother.

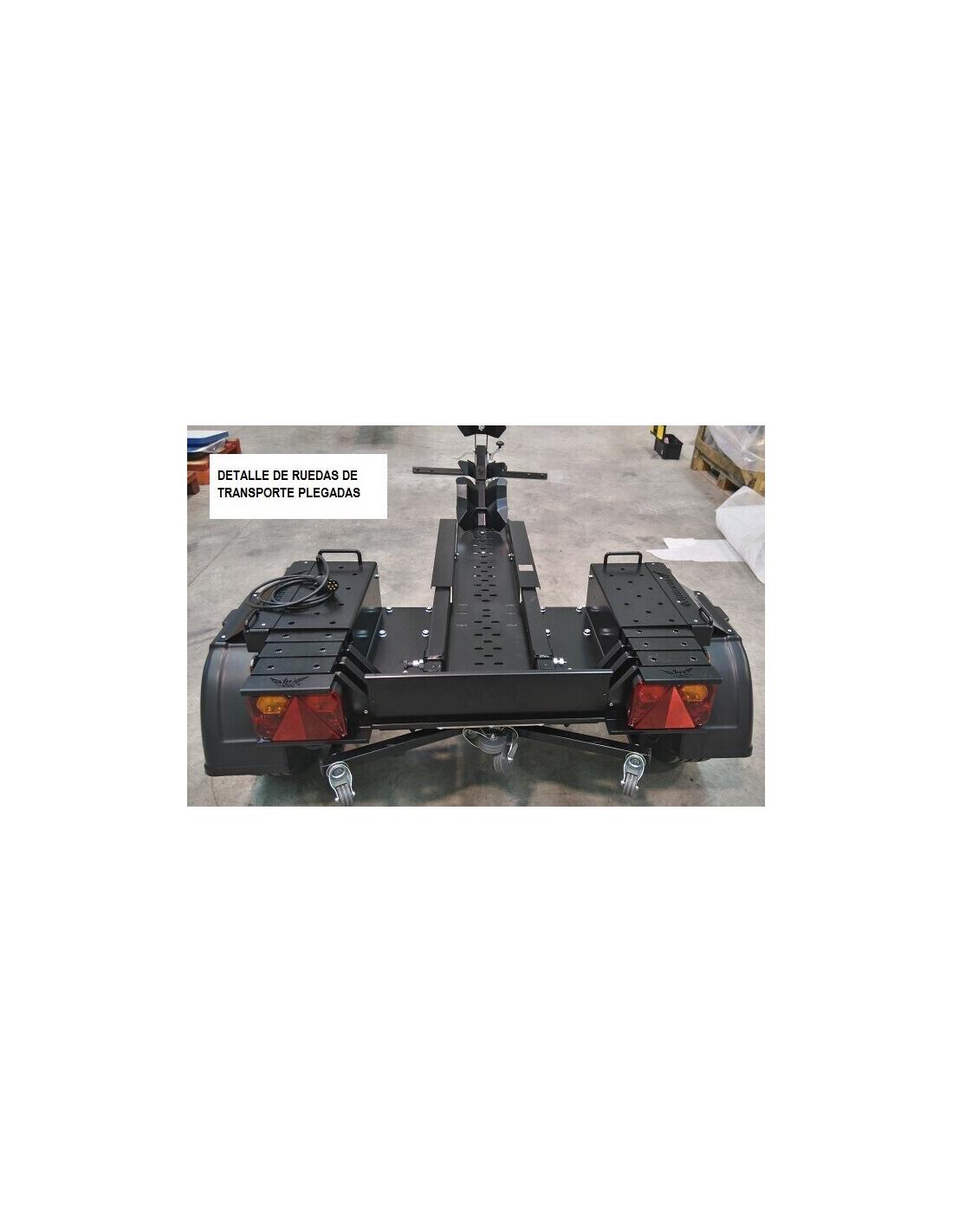

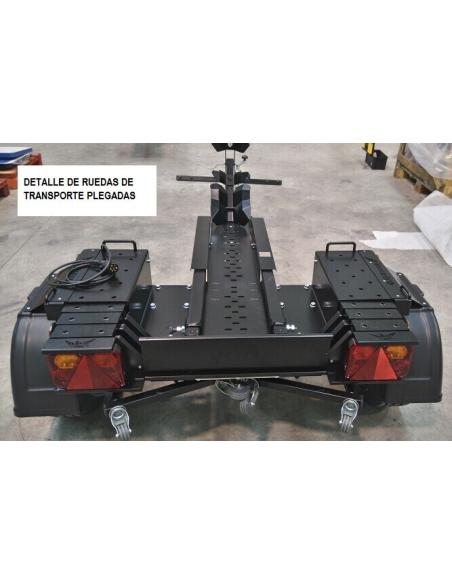

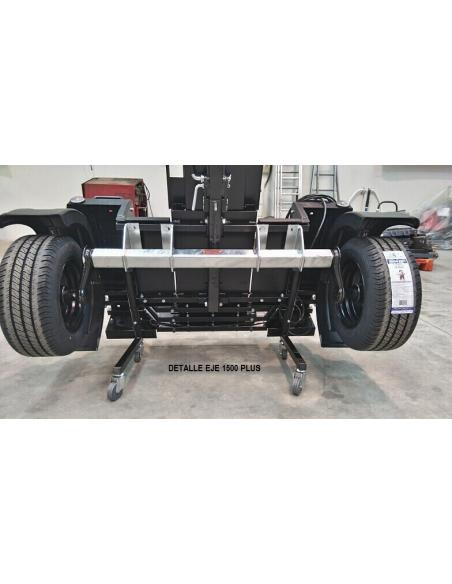

It also has an automatic wheel system to transport it in folded mode (trolley system).

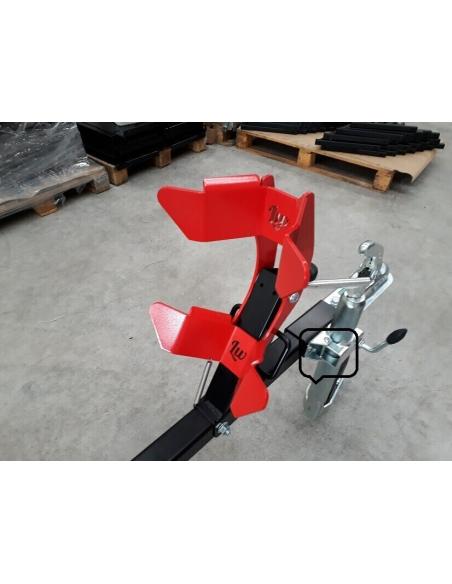

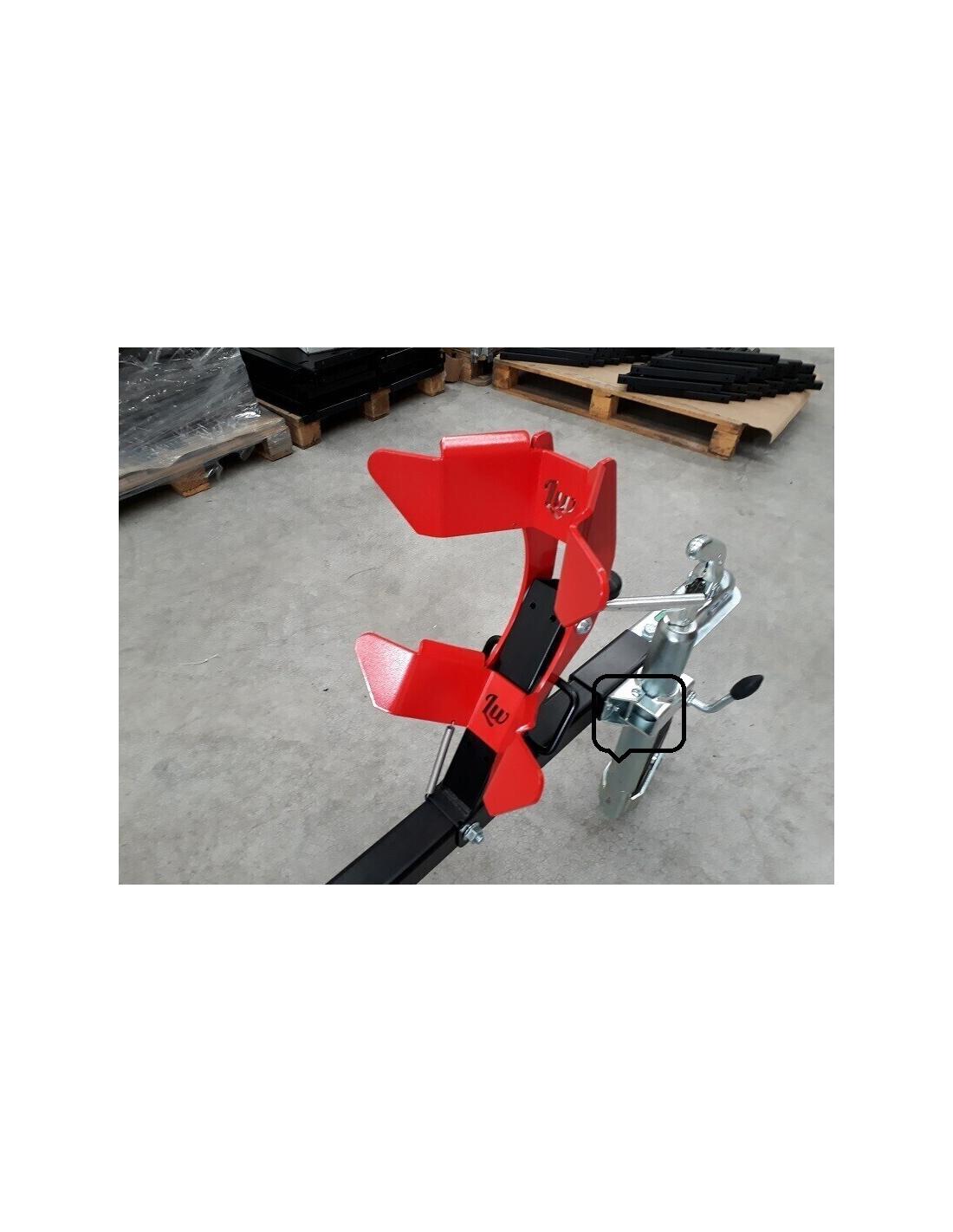

The jockey wheel will help you move the trailer when it is not hooked to the vehicle. Includes set of slings to tie the bike.

The trailer is received ready to be used (The trailer is delivered on a pallet, so the delivery can not be on floors).

Description

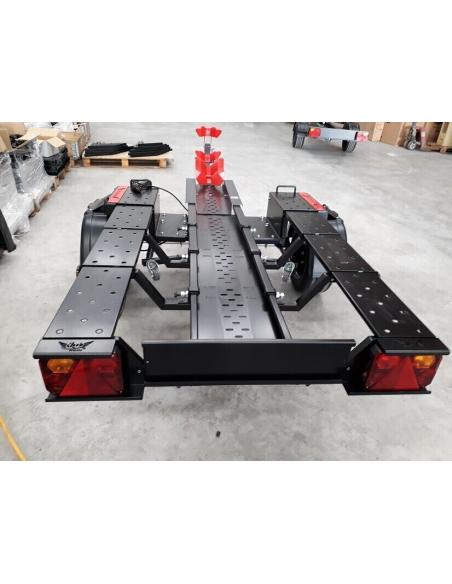

Trailer for a motorbike manufactured and designed with the highest technology. Highly resistant materials, galvanized steel and oven-painted.

It folds up to 73 centimeters deep, the ramp is tilting and has special telescopic ramps to support the feet at the time of raising the bike to increase safety.

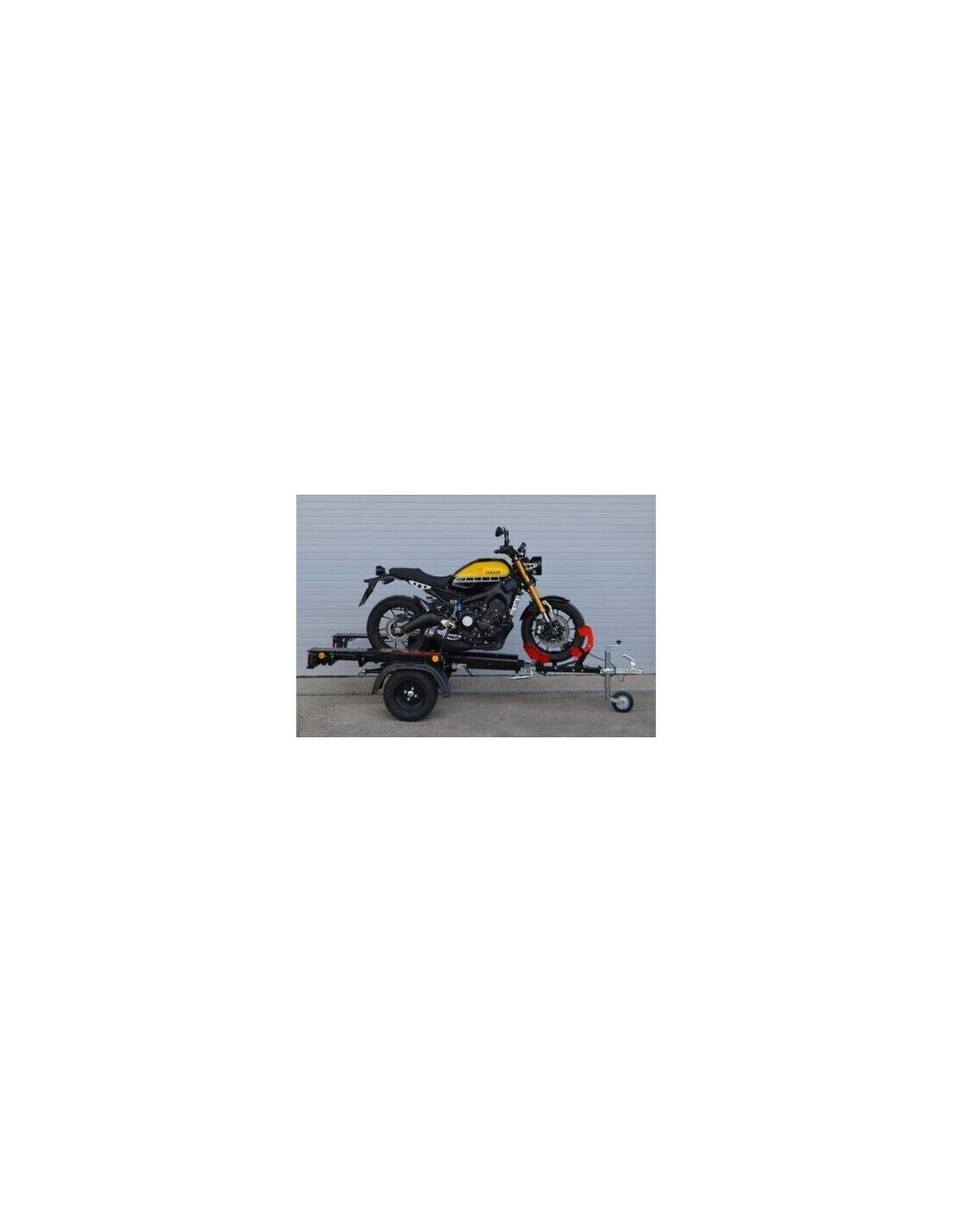

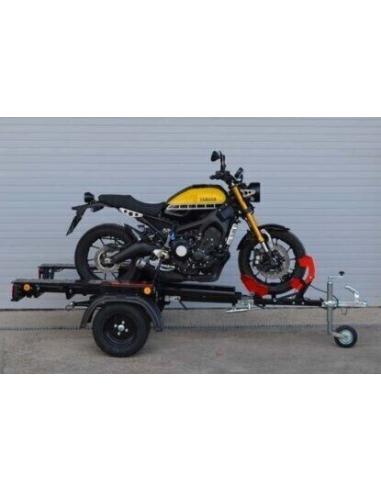

Motorcycle capacity

Load up to 500kilos

Tilting ramp

Useful width 1500mm

Useful length 3000mm

Trolley wheels

Jockey wheel included (not optional)

Technical characteristics:

Trailer type Multi-purpose modular extendible trailer
Payload in kg 605 Kg
MMA in kg 750 Kg

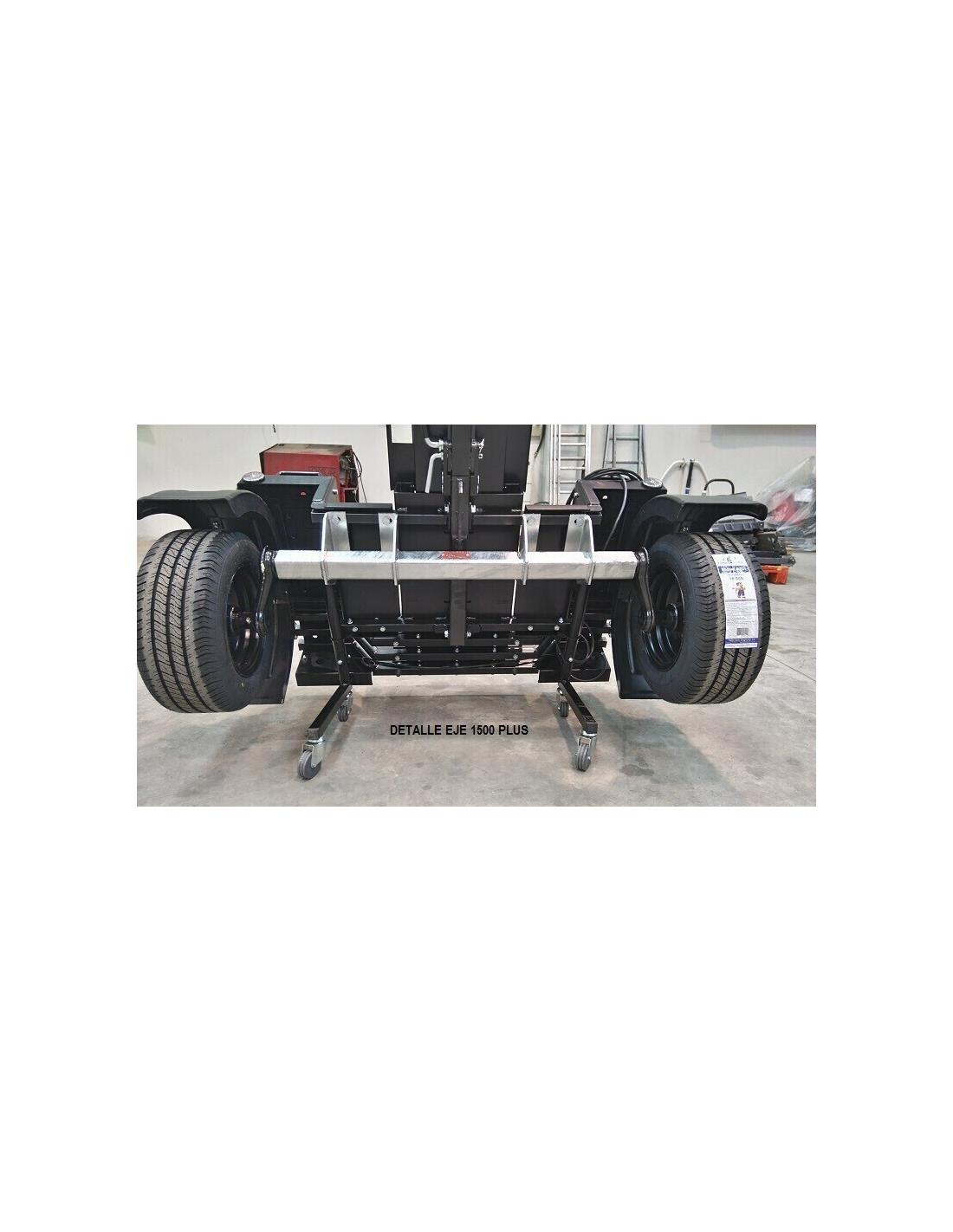

Axle load in kg: 750 Kg
Unladen weight (kg): 168 Kg
Useful volume: 300x123x180 cm
Useful length: 300 cm
Useful width: 150 cm
Total length without accessories: 350 cm
Total width without accessories: 150 cm
Total height without accessories: 70 cm
Height floor to box: 45 cm

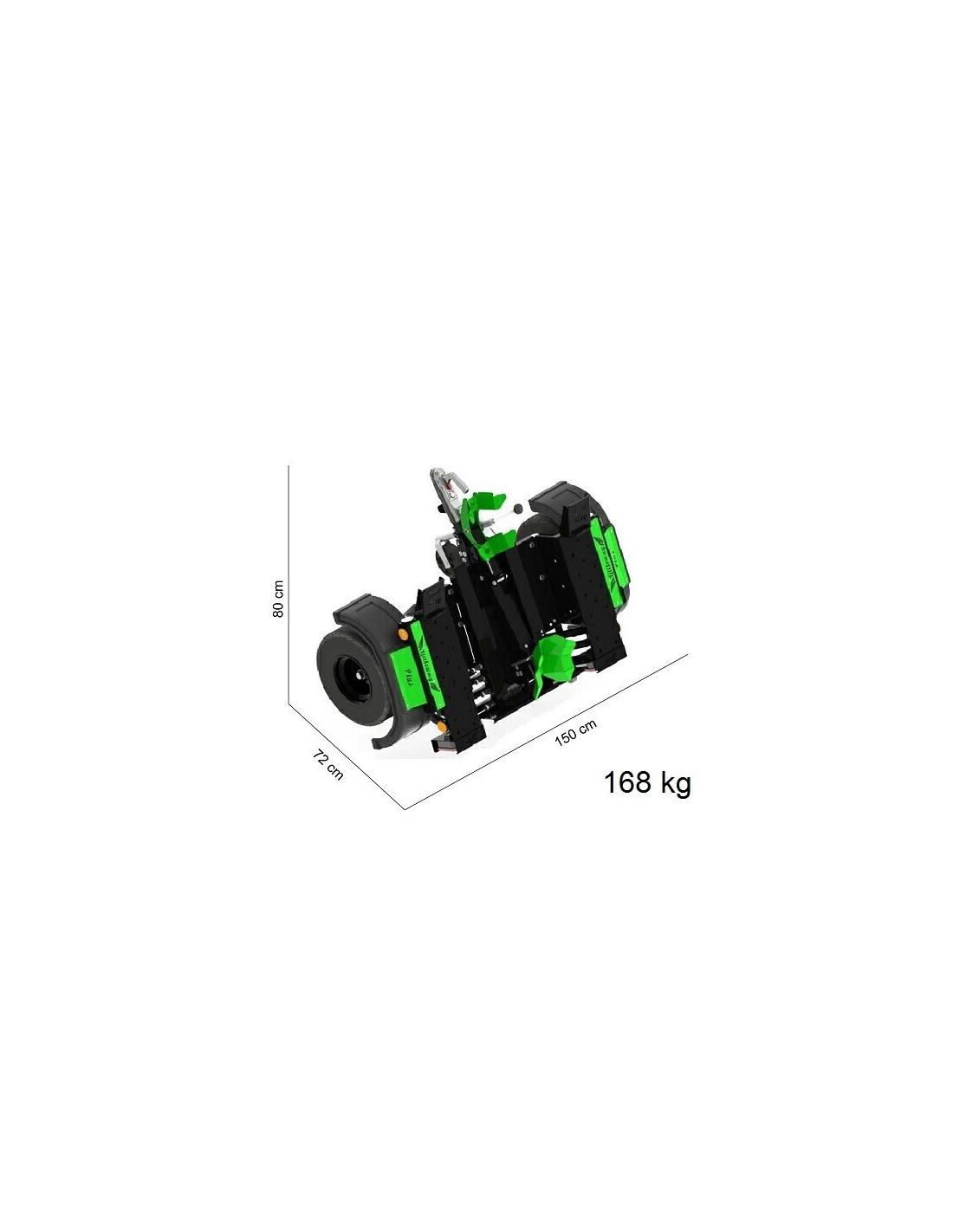

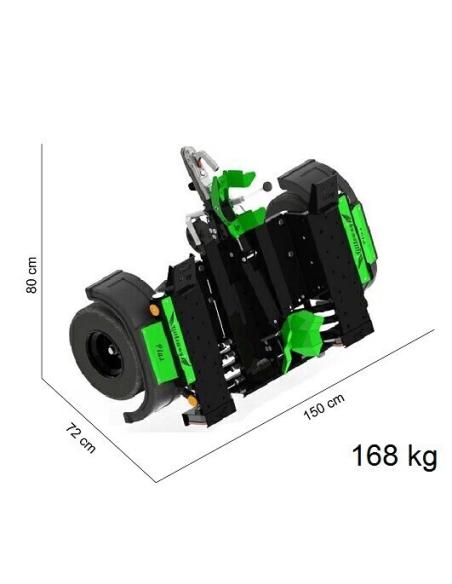

Folded height: 80 cm
Folded width: 150 cm
Length folded: 72 cm
Trailer without registration: YES
Delivery assembled: YES
Type of drawbar: Articulated tipping drawbar
Inertia brake: NO

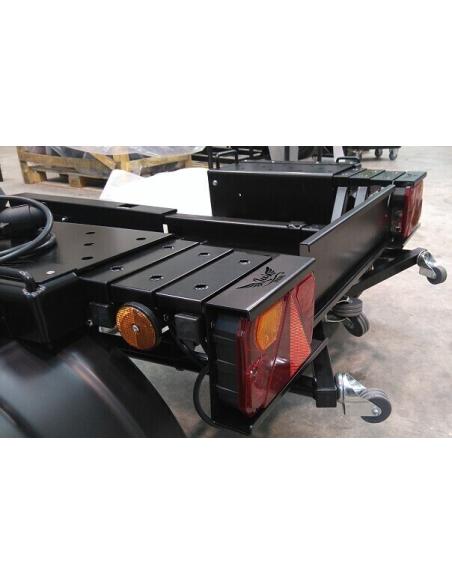

Type of lights: RADEX 6400
Tyre size: 195-55-10C 98/96N RADIAL R701
Connection type: 7 POLES
Jockey wheel included: YES
Winch included: NO
Type Approval : European No. : e9*2007/46*3103*00
