copy of 5 3/4" TYPE 7 LED LENS 5 3/4" INCH APPROVED CHROMED

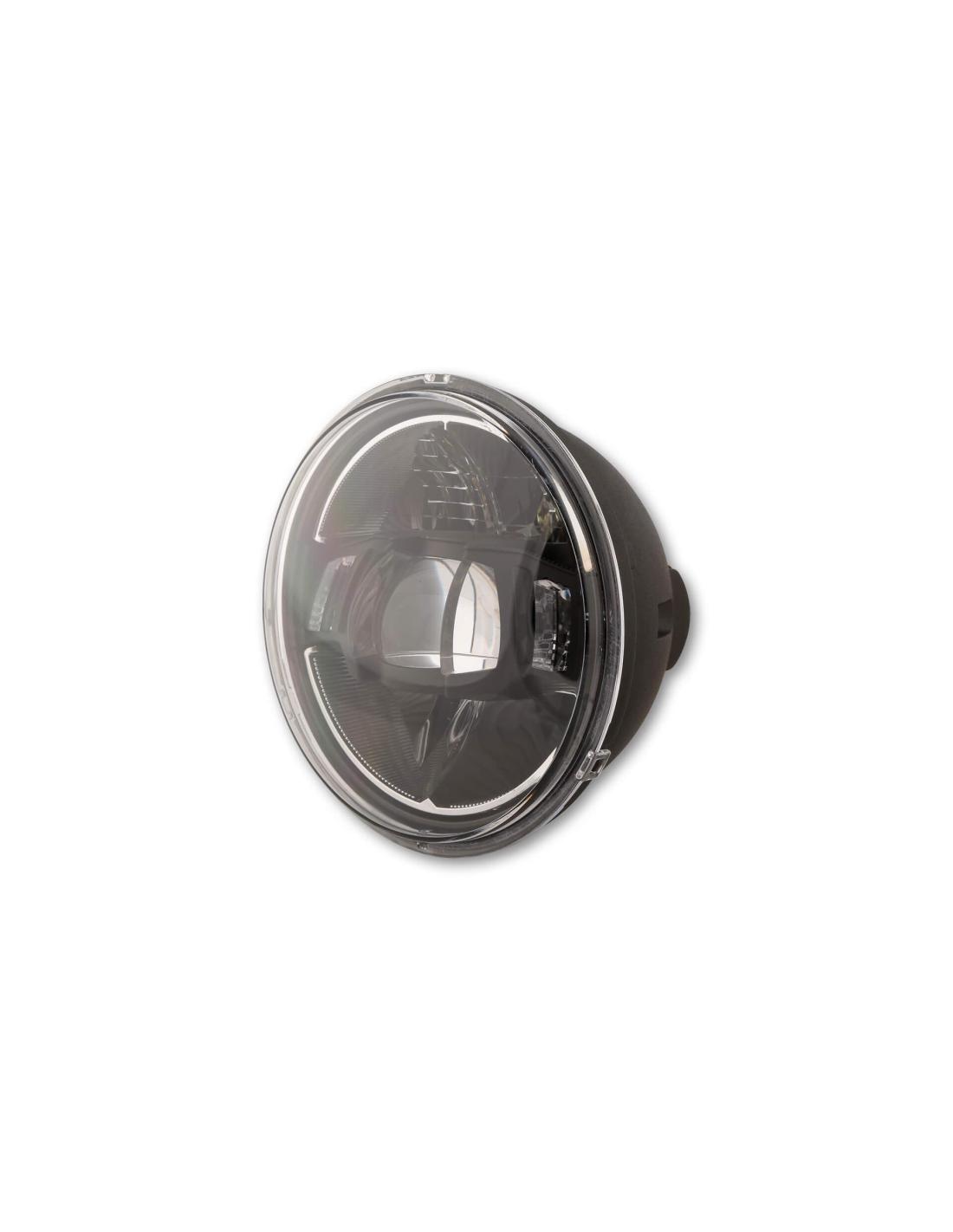

HIGHSIDER TYPE 7 LED Main Headlight Insert

This round, black or chrome-plated reflector has high beam, low beam and parking light ring. The low beam lights up on the top half of the insert and on both halves when the high beam is on.

Our highlights give your motorcycle your unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely make your bike stand out!

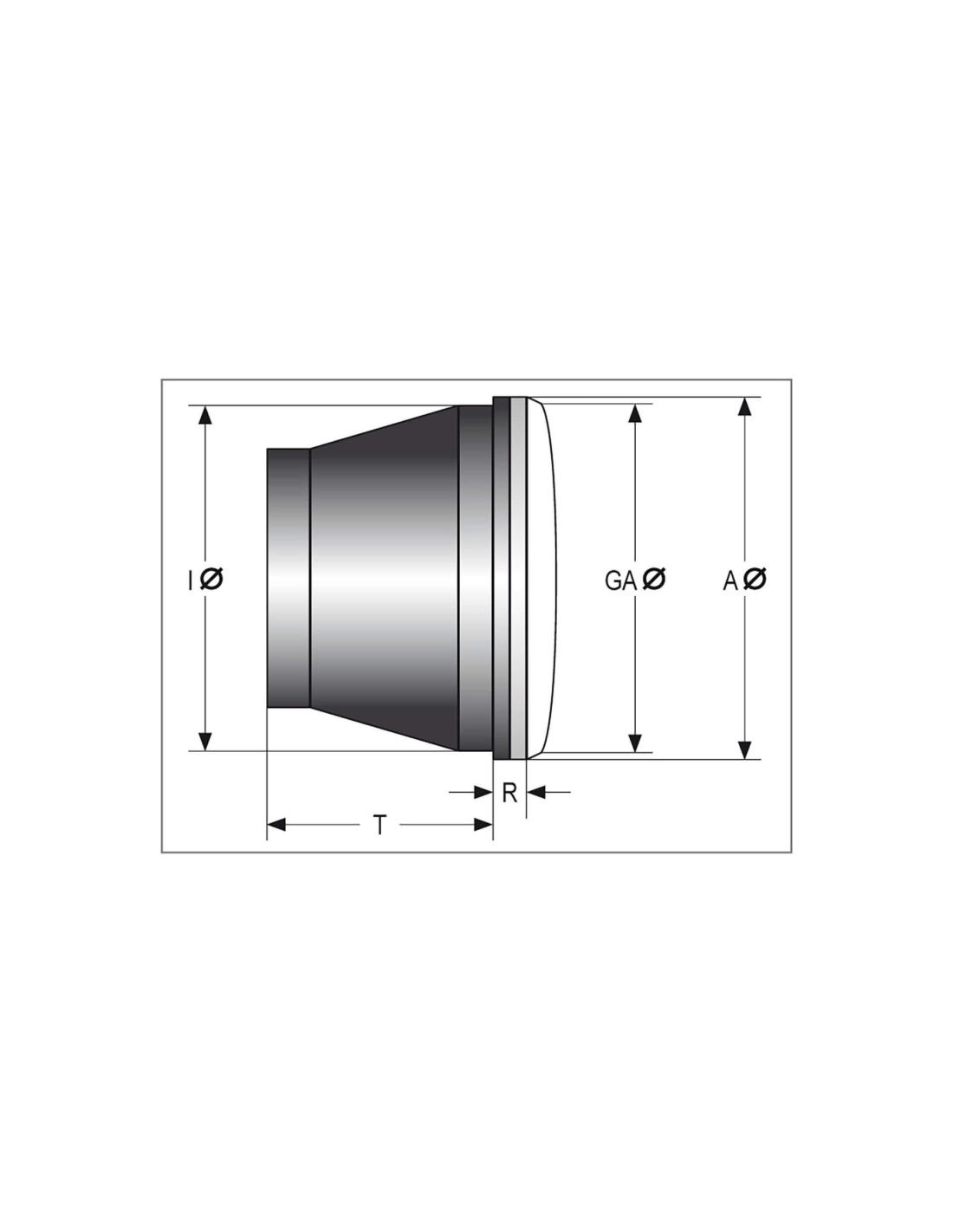

Dimensions:
Diameter A = 143 mm
Diameter GA = 133 mm
Diameter I = 131 mm, D = 43 mm, R = 12 mm
Cable length: 400 mm

Power consumption: (3-pin plug)

Connections: white = dipped beam (+)
ed = high beam (+) black = ground (-) green = position light (+)

Scope of delivery: 1 piece incl. 1x plug housing
