LED LENS TYPE 4 DRL 7" INCH TYPE 4 TYPE 4 DRL LENS APPROVED

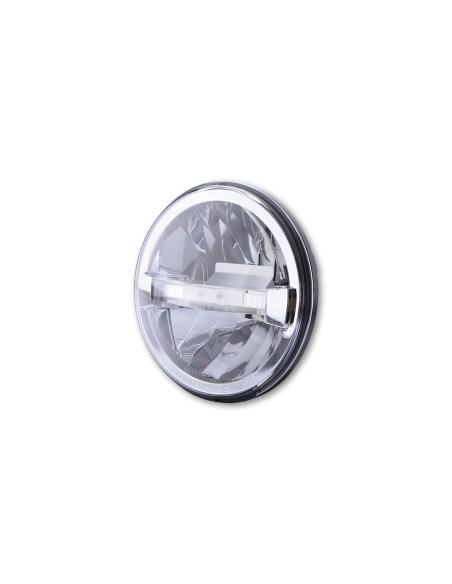

This round chrome-plated retro-reflector with clear glass has a high beam, low beam, parking light and daytime running light function. The daytime running light and position light are mounted on a central strip, so that a very beautiful optical image is created: the low beam is illuminated above the strip, the high beam is illuminated correspondingly below. The reflector emits an asymmetrical - only approved for right-hand traffic -, E-examined luminous flux.

Our highlights give your MOTO your unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely make your MOTO stand out!

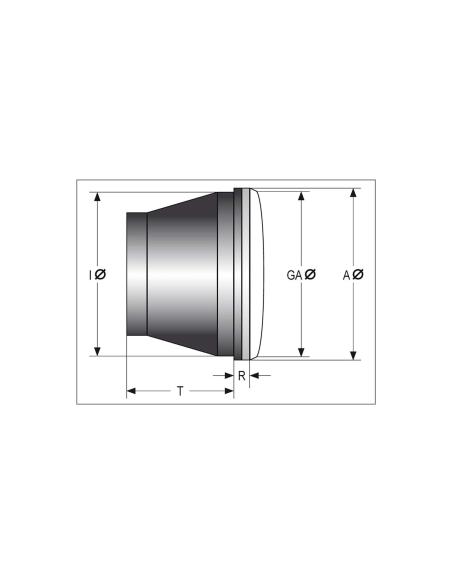

Dimensions:
Diameter A = 177 mm
Diameter GA = 168 mm
Diameter I = 160 mm
T = 61 mm
R = 10 mm

Connections:
Black wire = ground (-)
Blue wire = dipped beam (+), consumption at 12V: 1.8A, 22W
Yellow wire = high beam (+), power consumption at 12V: 1.3A, 13W
Black wire = ground (-)
TFL :
Black wire = ground (-)
Red wire = daytime running light (+), power consumption at 12V: 1,2A, 14W
White wire = position light (+), consumption at 12V: 0,2A, 2,4W

delivery: 1 piece
