5 3/4" JACKSON LED LENS 5 3/4" INCHES APPROVED

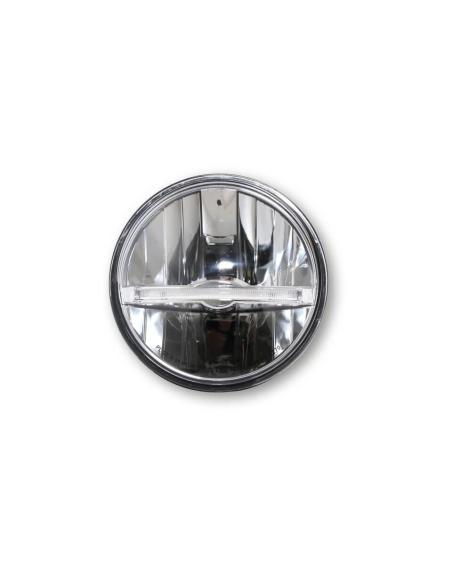

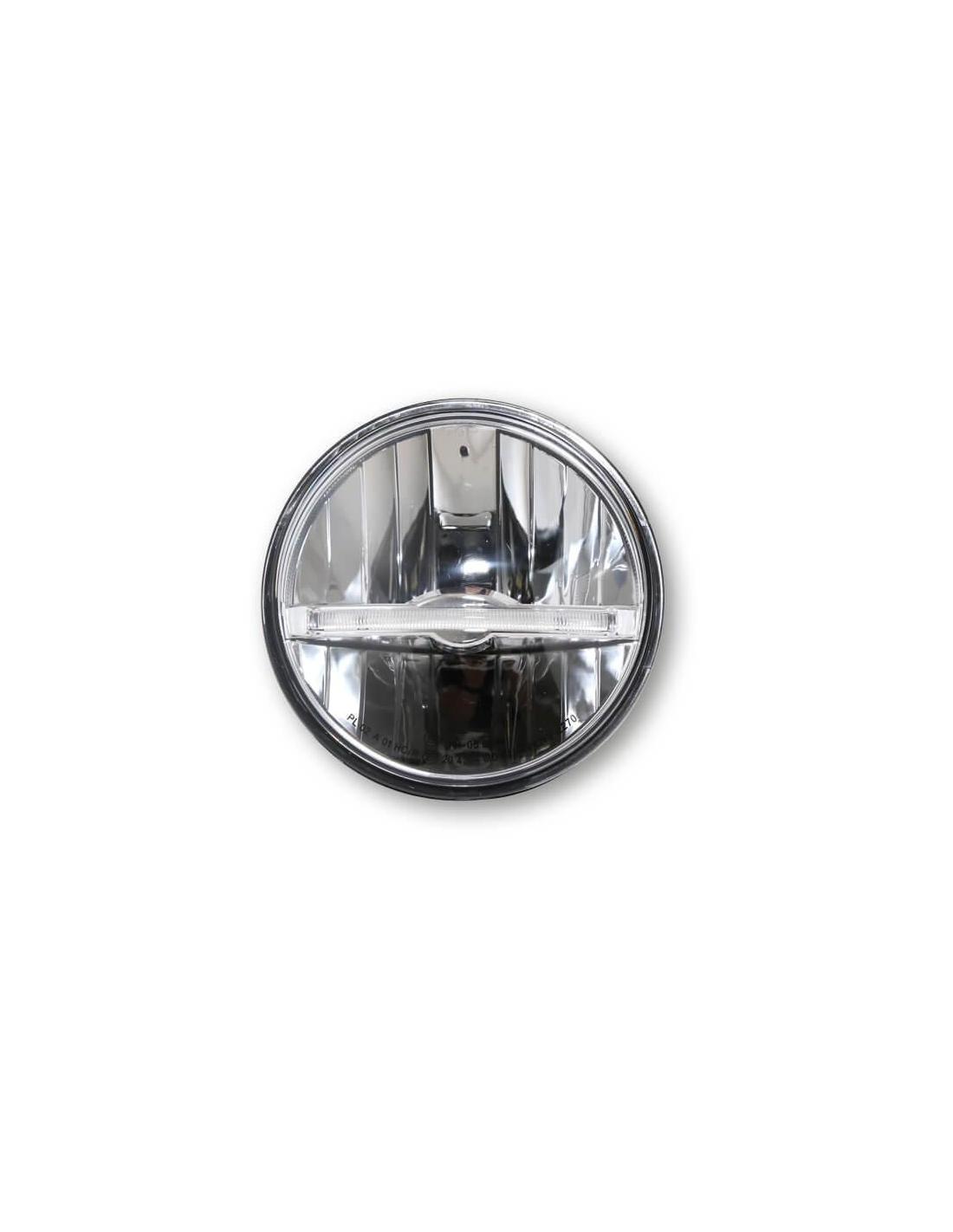

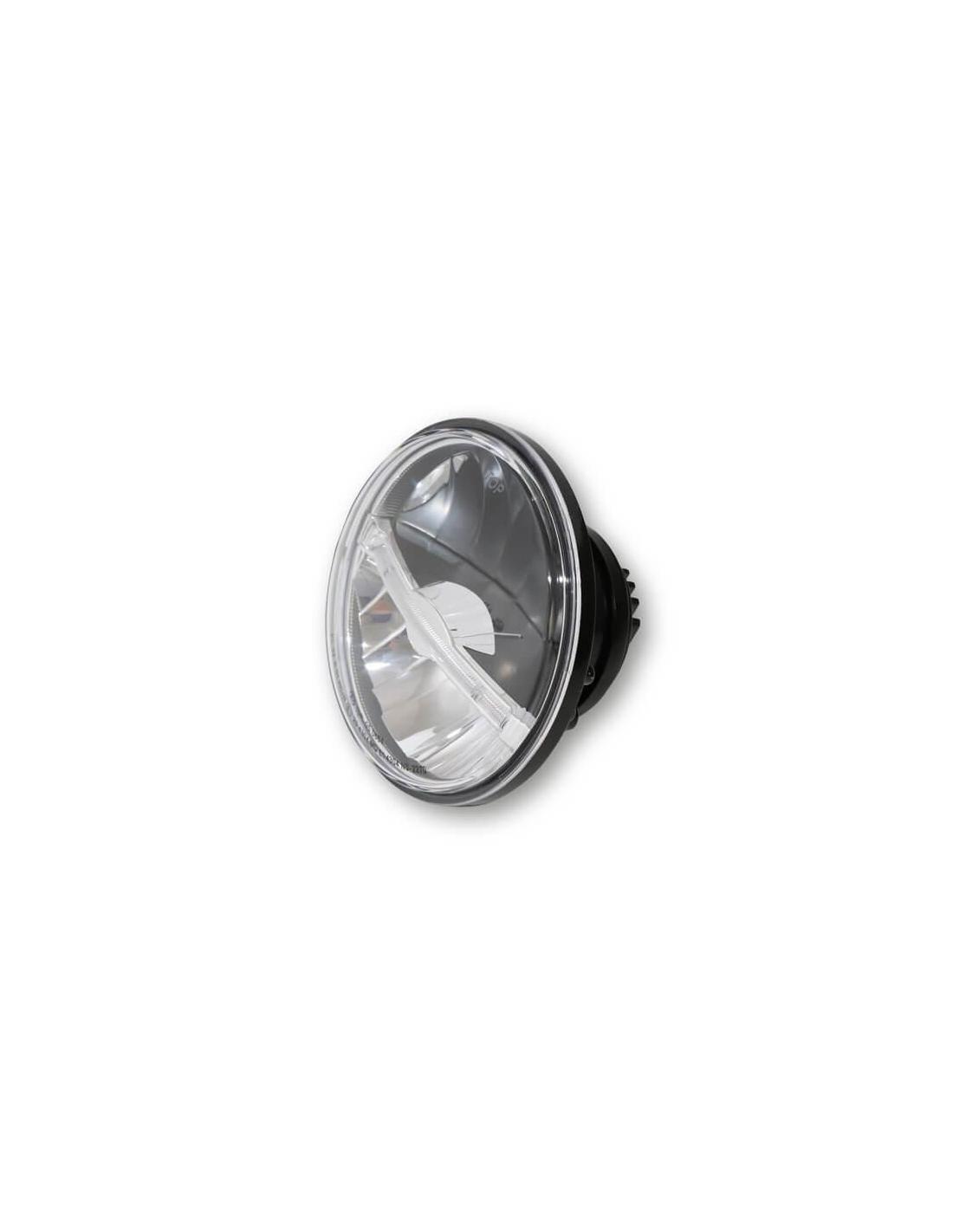

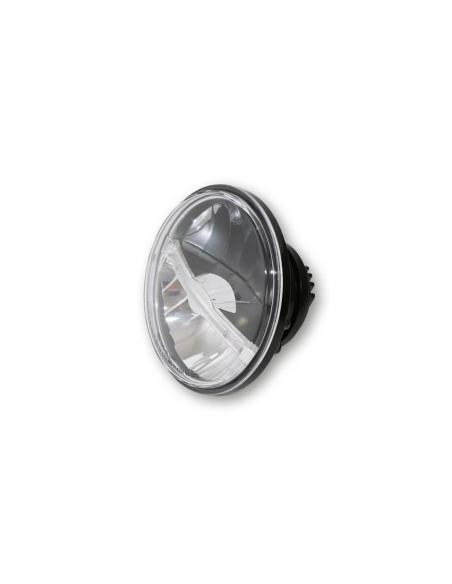

HIGHSIDER JACKSON LED headlight insert, 5 3/4 in.
This round chrome reflector features high beam, low beam, parking light and clear glass. The parking light function is shown in the center of the insert as a light strip (Light Guidance System). The reflector emits an asymmetrical luminous flux - only approved for right-hand traffic - E-mark.

It attracts attention, gives your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely make your bike stand out!

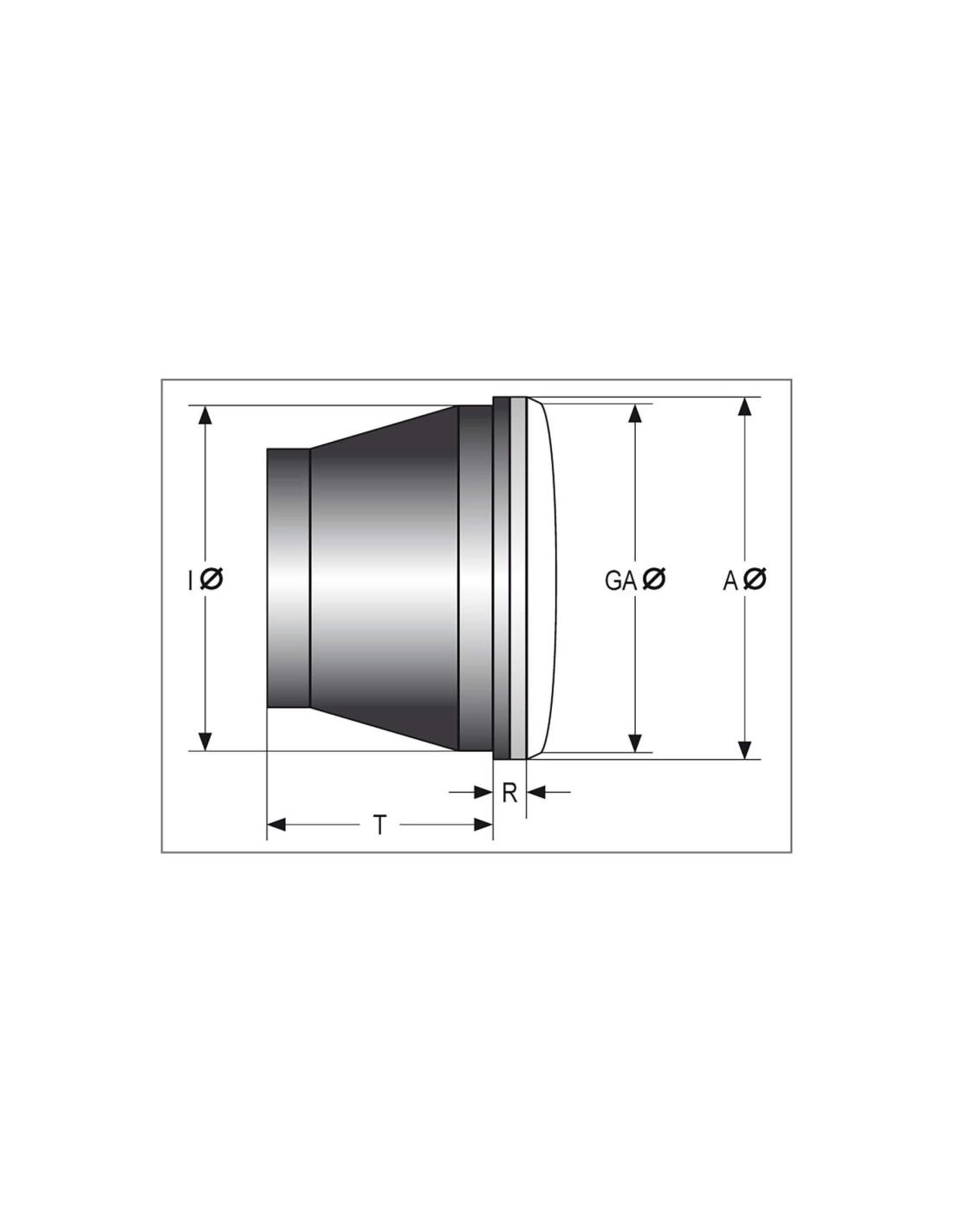

Dimensions
Diameter A = 148 mm
Diameter GA = 134 mm
Diameter I = 128 mm
T = 60 mm
R = 11 mm

Technical Data
Voltage: 12 V

Triple connectors
Black = Ground (-)
Blue = Dipped beam (+) Red = High beam (+)
High beam (+)
Separate wire:
Red = Parking light/parking light (+).
Black = Ground (-)

Scope of delivery: 1 piece
