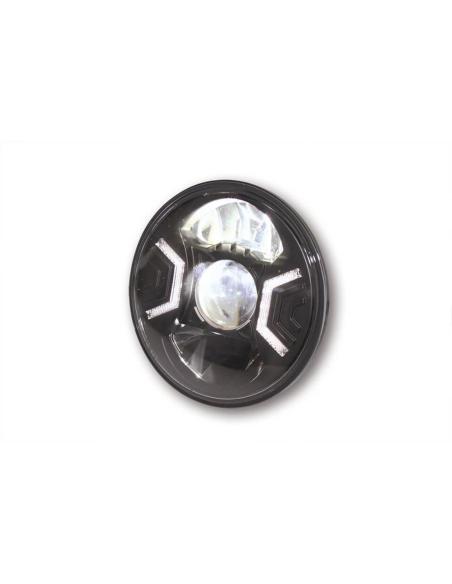

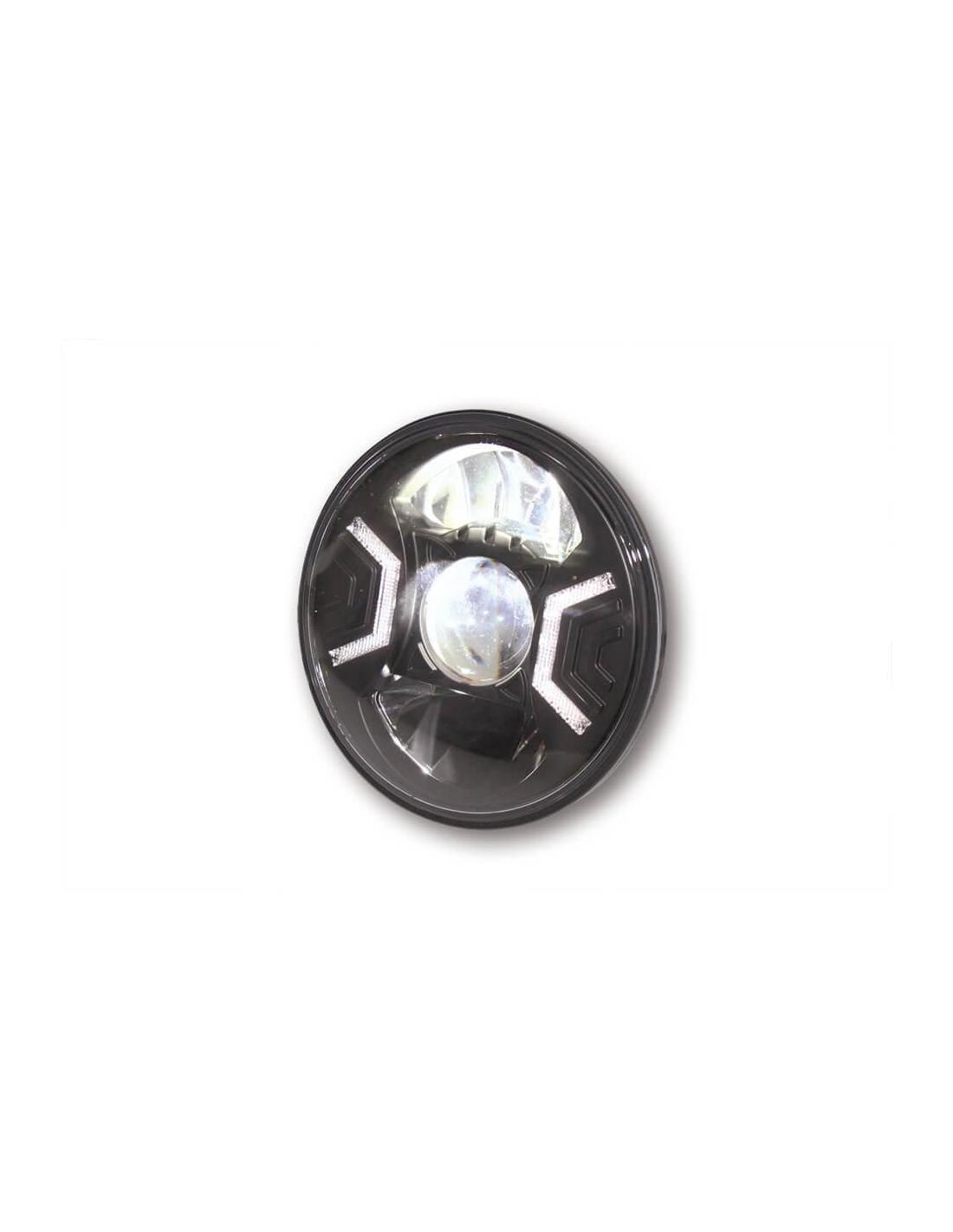

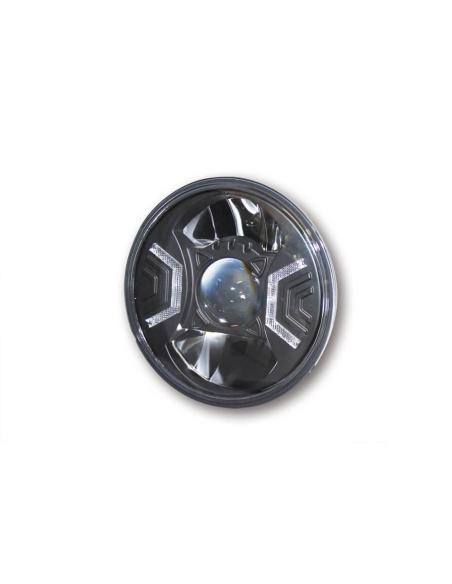

HIGHSIDER 7 Inch LED Main Headlight Unit TYPE 2

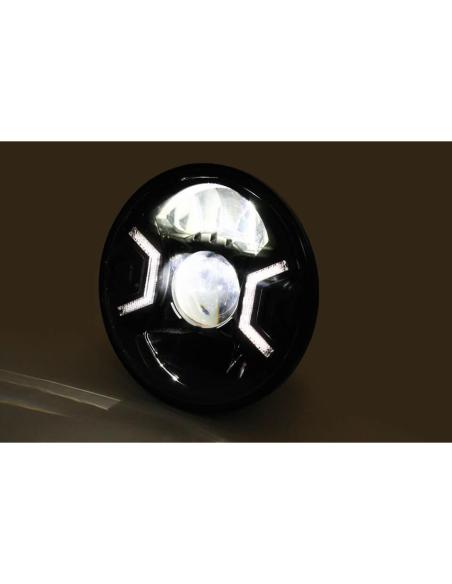

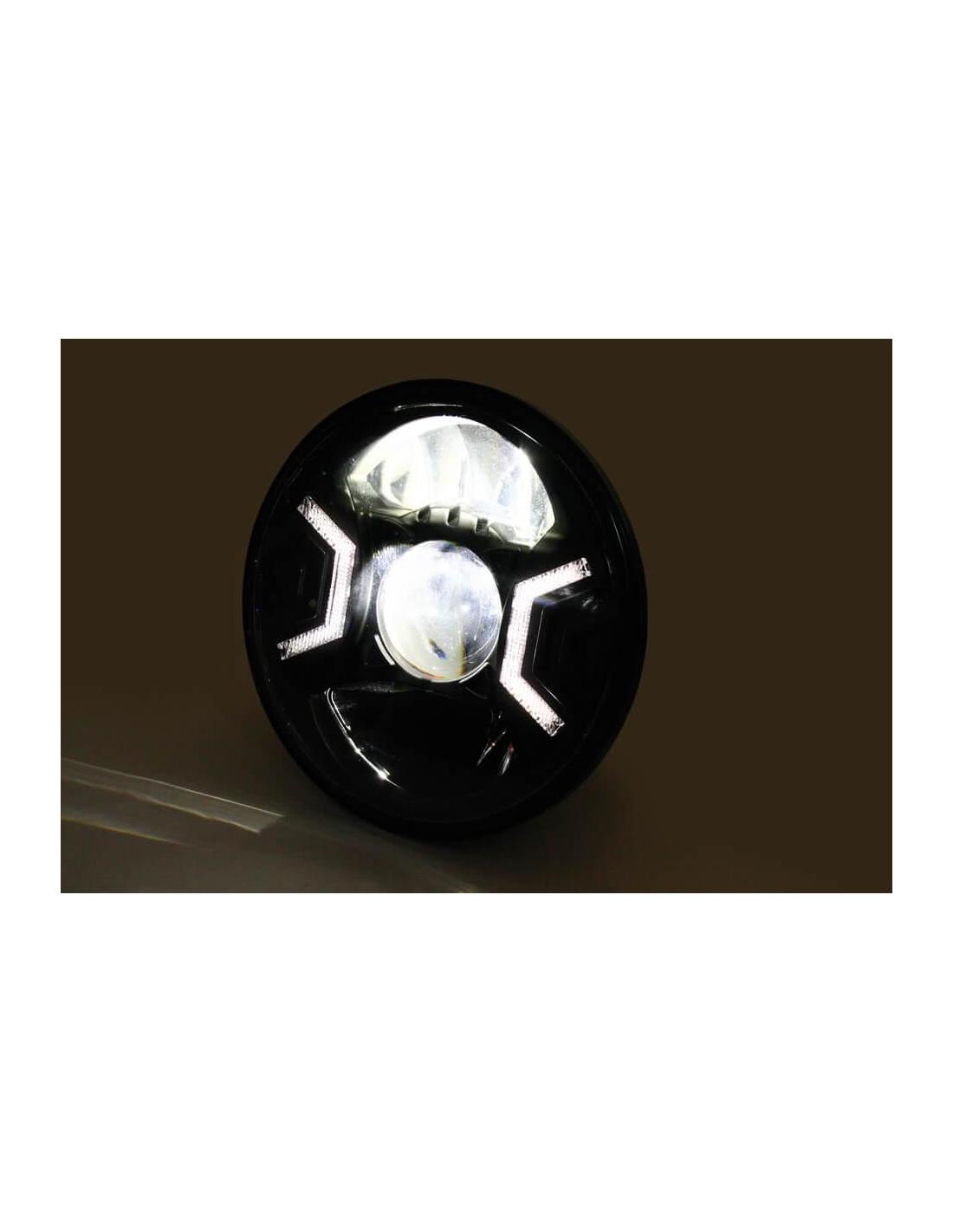

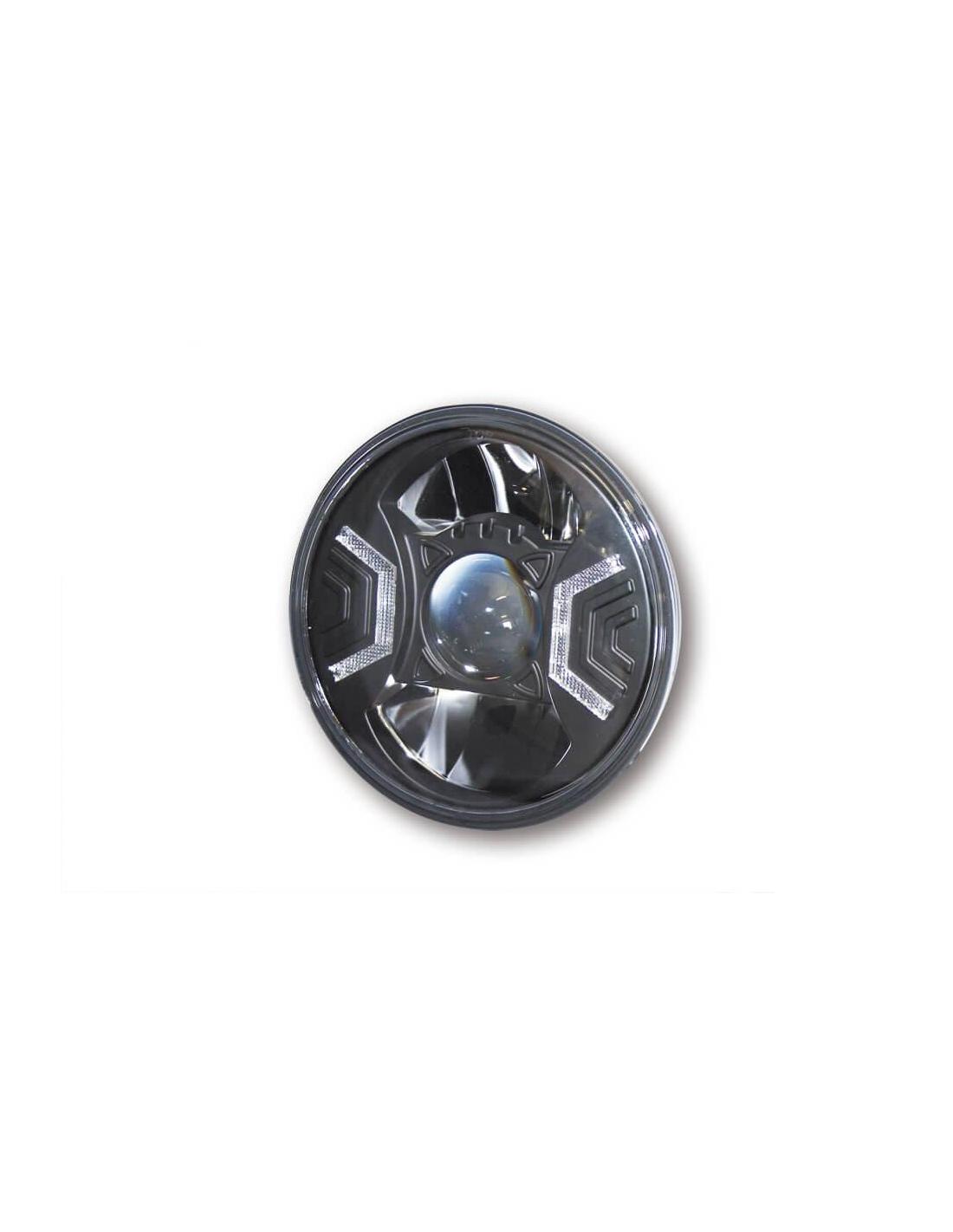

This round, black or chrome reflector has high beam, low beam and parking light functions and shines with an asymmetrical luminous flux, only approved for right-hand traffic, E-tested.
See and be seen: give your bike a distinctive style!
The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

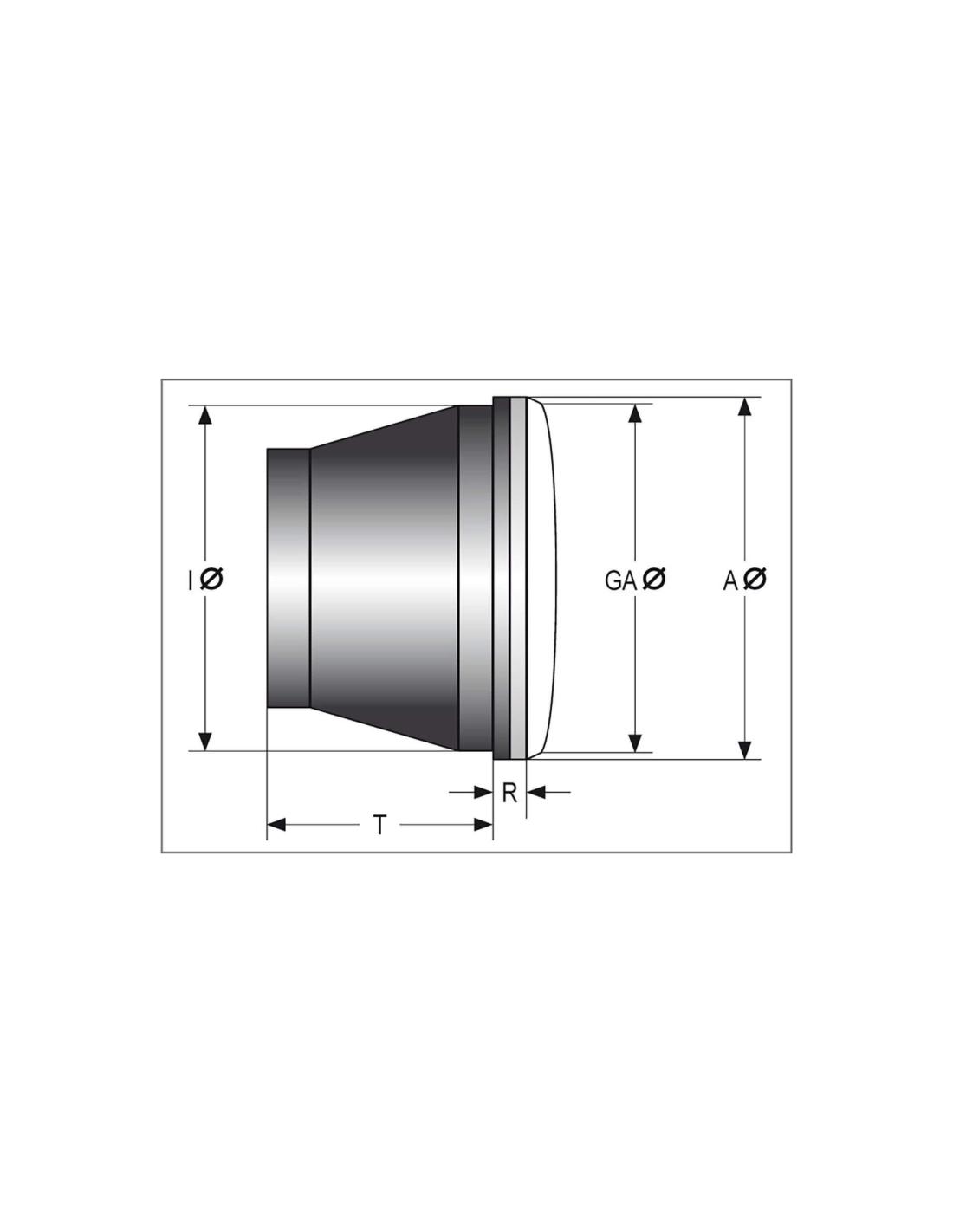

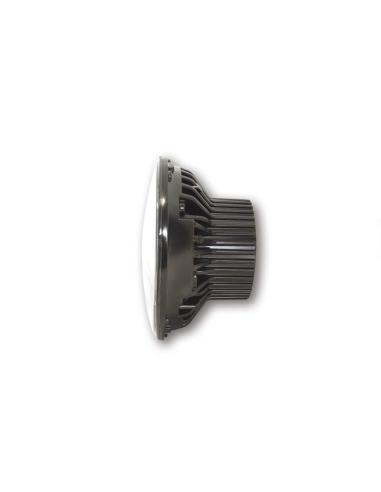

br/>Dimensions:
Diameter A = 176 mm
Diameter GA = 165 mm
Diameter I = 160 mm
Diameter K = 99 mm
T =81 mm
R = 8 mm
br/>Technical data:
Current consumption at 12.5 V DC:
Low beam : approx. 1.6 amps (20 watts).
12 volts 1450 lumens
Only top reflector and middle reflector are illuminated Ellipsoid insert.
High beam: approx. 1.6 amps (20 watts).
12 volts 1582 lumens
Only the top and bottom reflector are illuminated. When the headlight flasher is activated, the center ellipsoid insert is turned off.

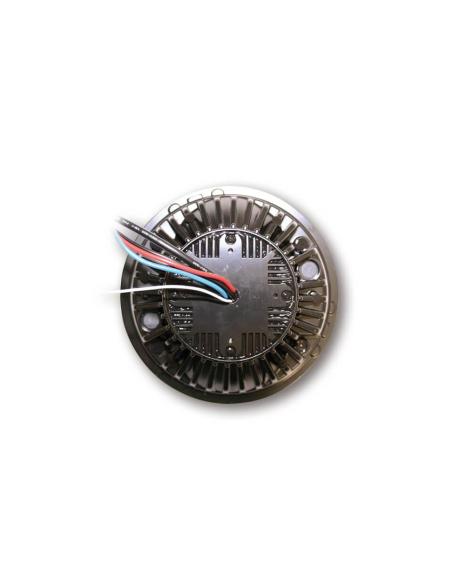

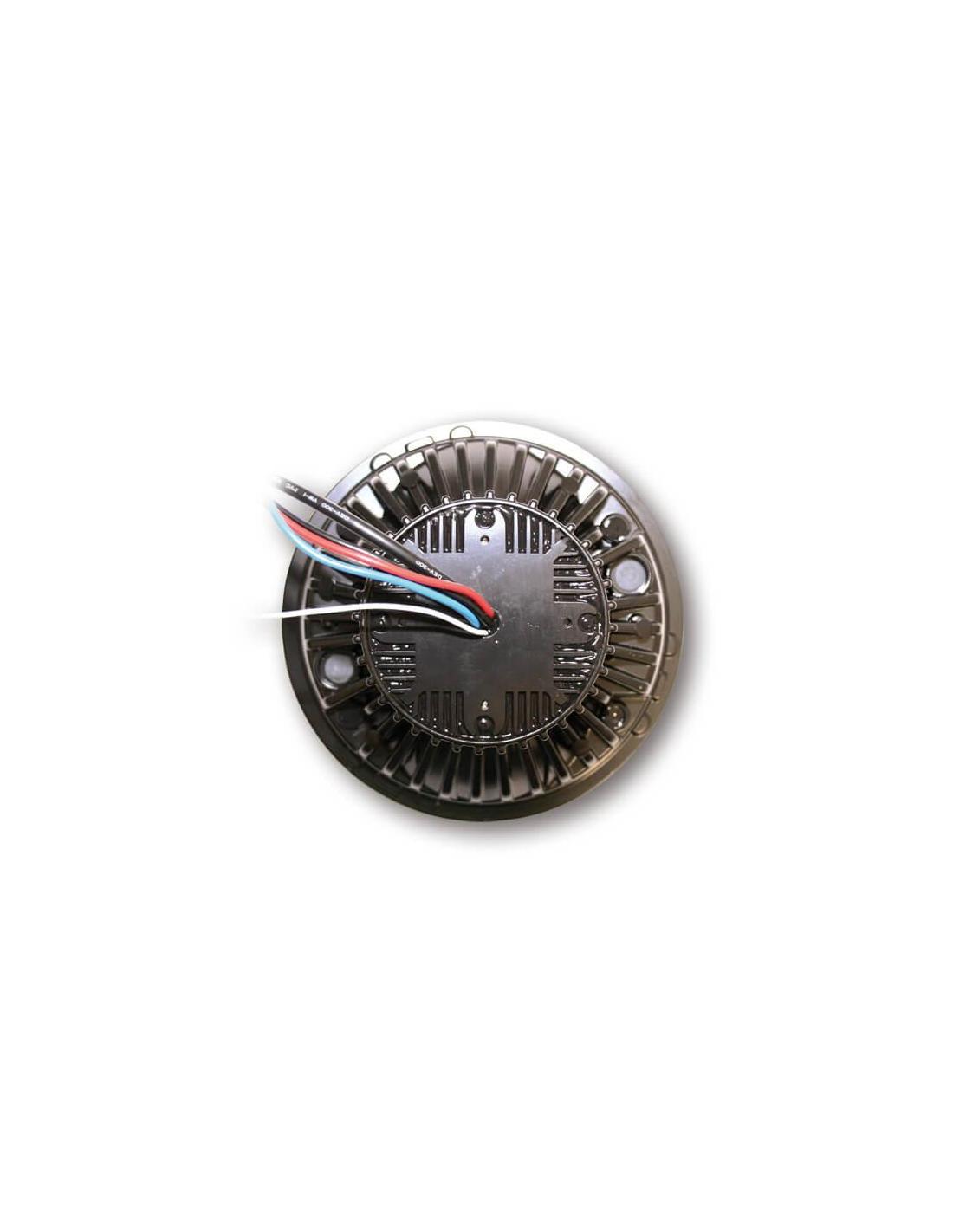

Connections:
The following 3 wires terminate in a combination connector:
Black = Ground (-)
Red = Positive high beam (+).
Blue = More low beam (+). Br/>2 additional wires for position light: Br/>Black = ground(-).

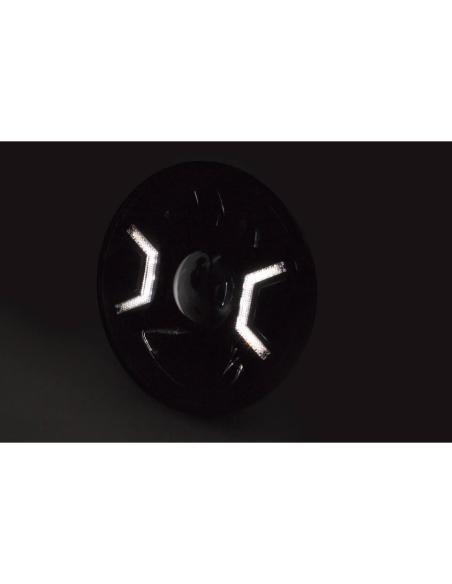

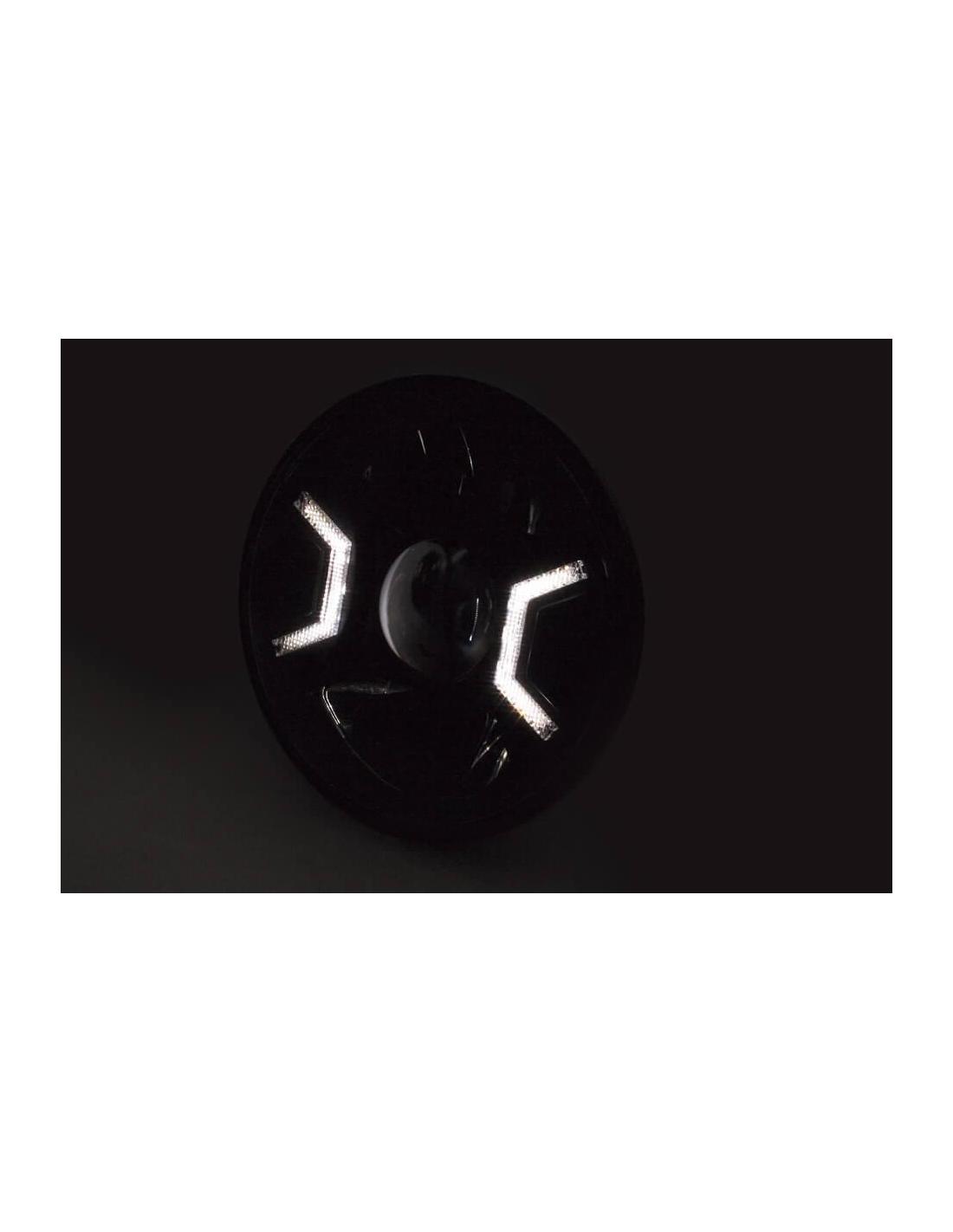

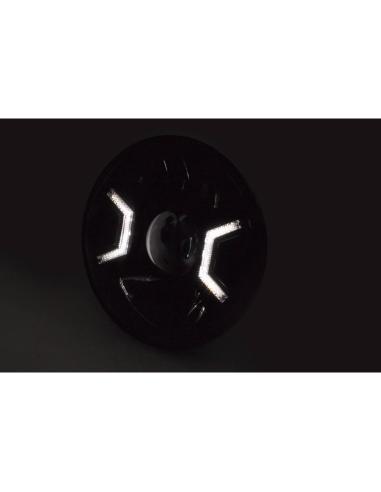

Red = Position light (+)
White = connection for flashing light (can be used optionally).
Packing unit: 1 pc.
- APPROVAL
- ECE stands for Early Childhood Education.
EMARK
