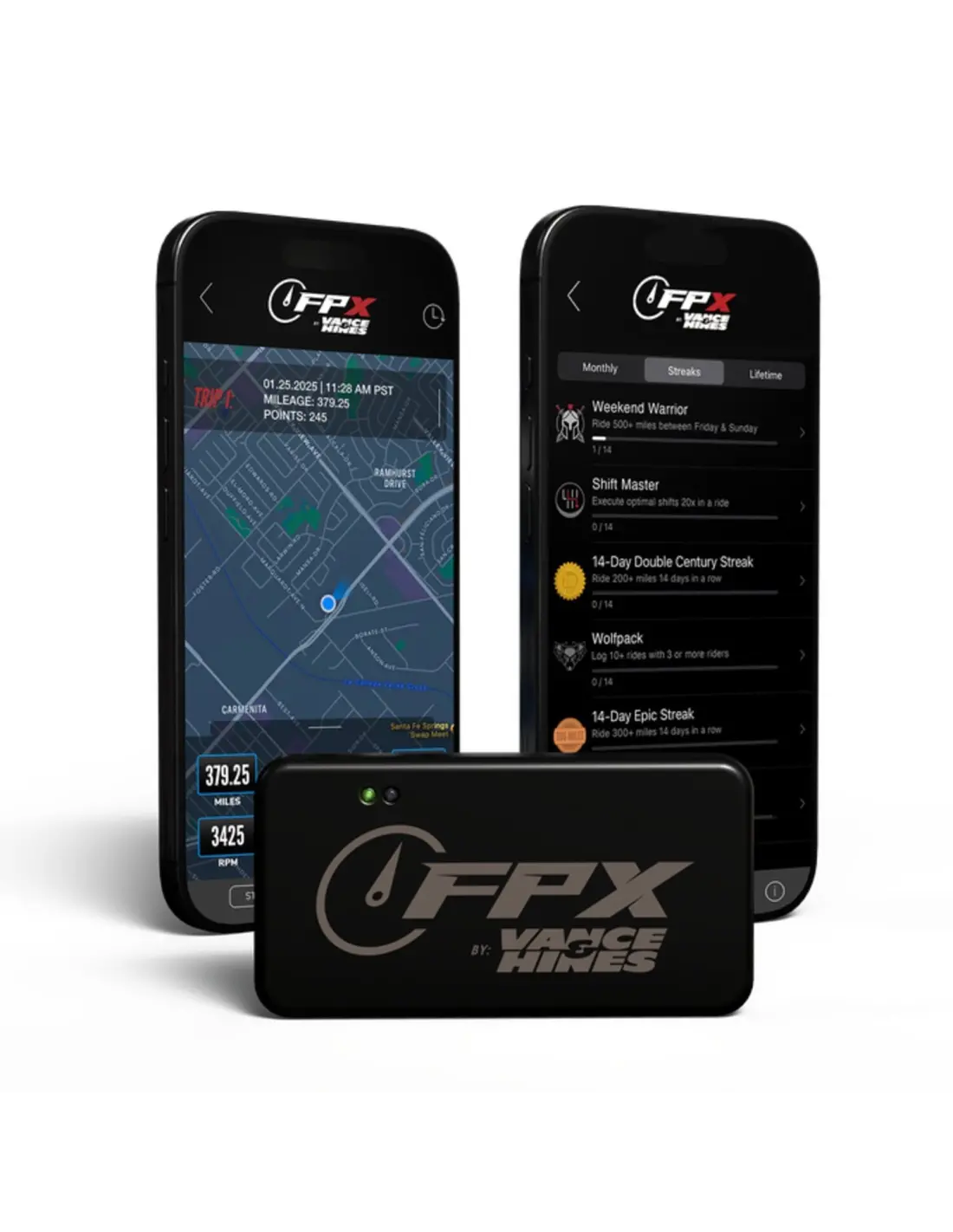

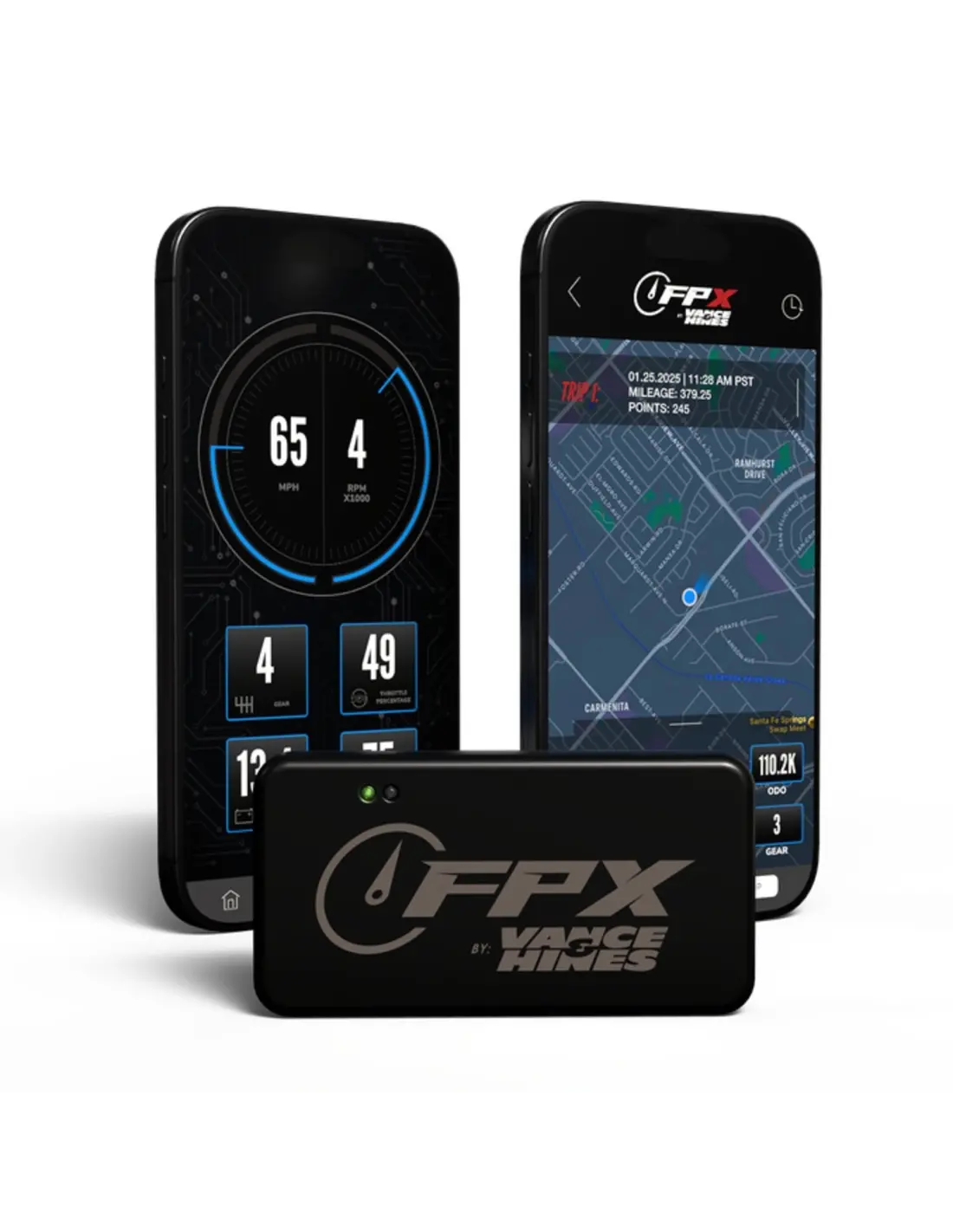

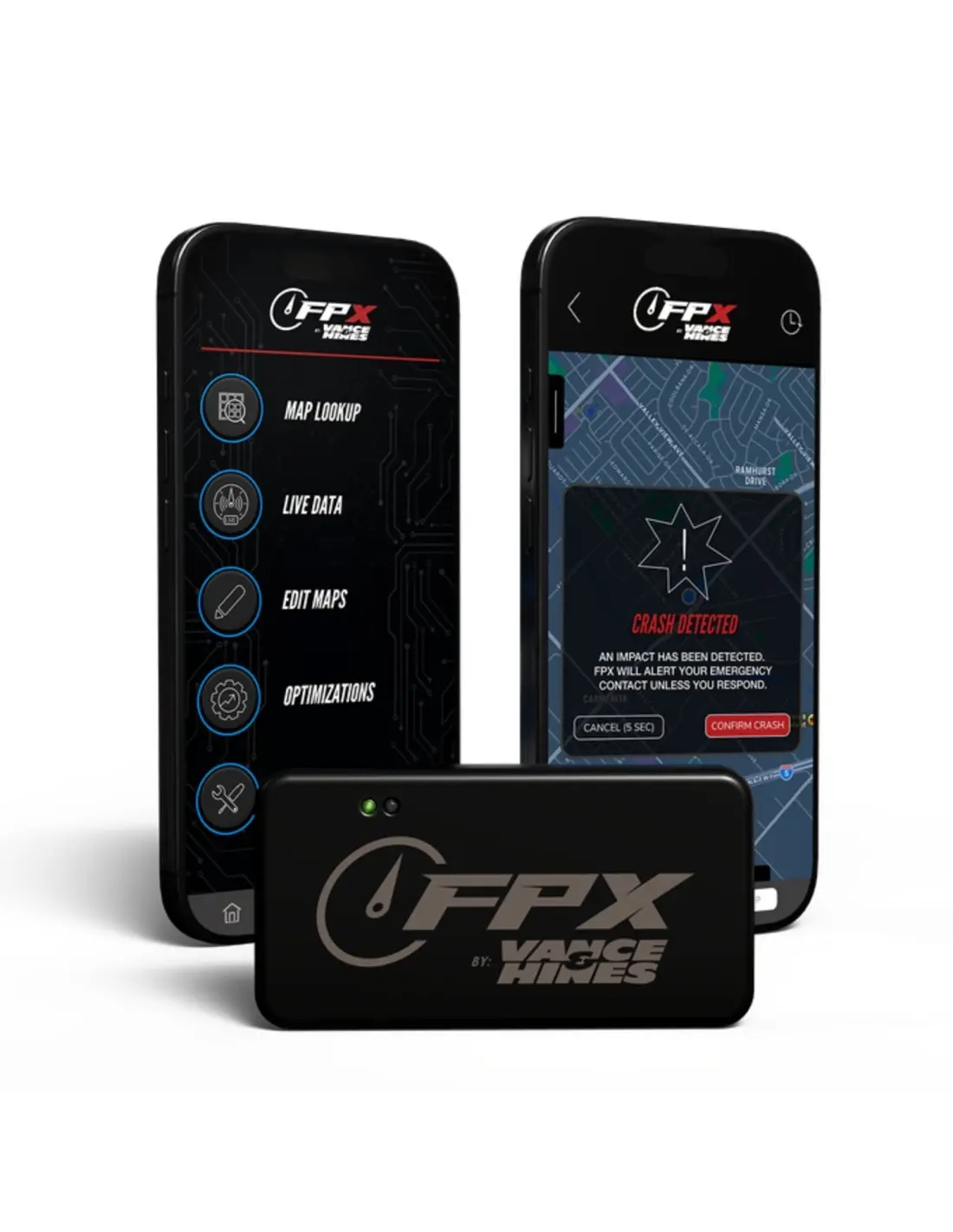

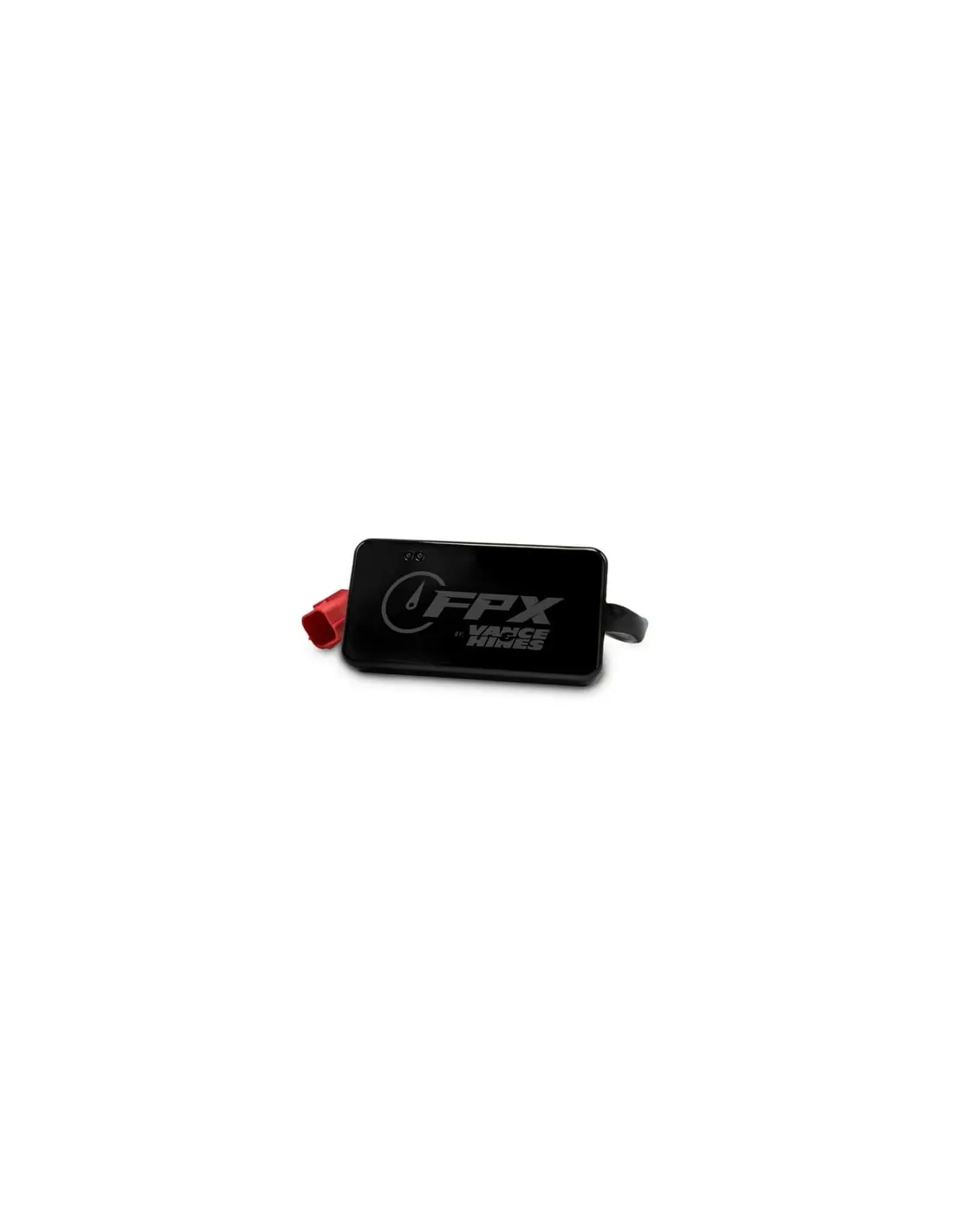

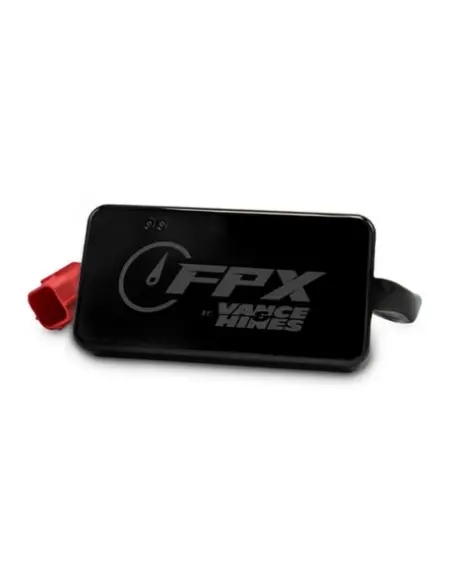

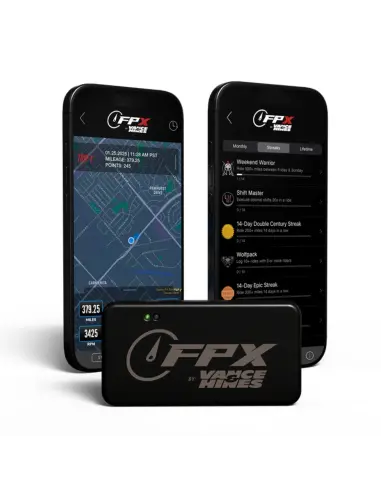

Vance & Hines Fuel Pak FPX Trak & Tune for Harley-Davidson J1850
Turn your Harley-Davidson into a more connected and configurable bike with the Vance & Hines Fuel Pak FPX Trak & Tune. Designed for 2007-2013 models with J1850 system and 4-pin diagnostic port, this system combines electronic tuning via flash, data monitoring, smart navigation, and various security functions from a single smartphone app.
The FPX Trak & Tune allows access to a wide library of dyno-developed maps, modification of parameters such as fuel delivery or throttle response, and real-time consultation of information such as RPM, engine temperature, or AFR. In addition, it integrates turn-by-turn navigation, anti-theft protection, accident detection, and tools to manage motorcycle maintenance.
Main features
- Vance & Hines Fuel Pak FPX Trak & Tune system.
- ECU reprogramming via flash technology.
- Compatible with Harley-Davidson J1850 with 4-pin diagnostic port.
- Not intended for CAN-Bus models.
- Extensive library of dyno-developed maps.
- Fuel map and throttle response adjustment from the smartphone.
- Enhanced processor to manage tuning functions.
- Bluetooth communication between the app and the FPX device installed on the motorcycle.
- App available on Google Play and App Store.
- Smart turn-by-turn navigation.
- Real-time engine data display.
- Data overlay on the navigation screen.
- Monitoring of RPM, engine temperature, AFR, and other available data.
- Anti-theft technology manageable from the app.
- Accident detection with emergency contact notification.
- Customizable maintenance intervals.
- Ride logging associated with GPS data.
- System of achievements, challenges, badges, and rewards.
- Access to support for FPX-related queries.
Technical data
| Product |
Injection tuning and connectivity module |
| Brand |
Vance & Hines |
| Model |
Fuel Pak FPX Trak & Tune |
| Tuning type |
Reprogramming via flash technology |
| Control |
Smartphone app |
| Connectivity |
Bluetooth between the app and the FPX device |
| App |
Available on Google Play and App Store |
| Navigation |
Turn-by-turn via the app |
| Connection required for navigation |
Internet via Wi-Fi or mobile data |
| Real-time data |
RPM, engine temperature, AFR, and other available parameters |
| Security |
Anti-theft function and accident detection |
| Maintenance |
Customizable service intervals |
| Additional functions |
GPS, achievements, challenges, badges, and rewards |
| Compatible electronic system |
J1850 |
| Diagnostic port |
4 pins |
| CAN-Bus |
No |
| Compatible brand |
Harley-Davidson |
| Compatible years |
2007-2013 |
Flash tuning from your smartphone
The FPX Trak & Tune allows you to select maps developed specifically for different Harley-Davidson applications. Vance & Hines offers a wide library of dyno-tuned configurations to facilitate the setup of bikes equipped with different intake, exhaust, and performance systems.
From the app, you can modify available parameters such as the fuel map and throttle response, using your smartphone as the main interface of the system.
Real-time engine data
While riding, you can view information such as RPM, engine temperature, AFR, and other available parameters. The system can overlay this data directly on the navigation to make it easier to consult on a single screen.
Turn-by-turn navigation
The FPX app integrates smart turn-by-turn navigation. To use this function, a connection to the Internet via Wi-Fi or mobile data is required.
The connection between the smartphone and the FPX device installed on the motorcycle is made via Bluetooth.
Anti-theft function
The system incorporates anti-theft technology that allows you to remotely prevent the motorcycle from starting from the app, without the need to reprogram the ECM to activate this function.
Accident detection
If an impact compatible with an accident is detected, FPX can alert the configured emergency contacts and provide the user's available location.
Achievements, challenges, and rewards
FPX incorporates a system of achievements and challenges that allows you to record performance goals, tuning milestones, riding streaks, and other activities. Certain achievements also use GPS information and can be associated with rewards.
Personalized maintenance
From the app, you can set custom service intervals to better track the periodic maintenance of the motorcycle.
Harley-Davidson compatibility
Compatible with Harley-Davidson motorcycles from 2007 to 2013 equipped with J1850 system and 4-pin diagnostic port.
Not intended for CAN-Bus models.
Before placing your order, check the exact year, model, and physically verify that the motorcycle is equipped with the J1850 system with a 4-pin diagnostic connector. Compatibility should not be determined solely by the year.
Usage recommendations
Before starting any programming process, make sure the battery is properly charged and avoid interrupting the power supply while writing to the ECU.
Always use maps and configurations suitable for the engine, exhaust, intake, and other components installed on the motorcycle.
