ALTERNATOR STATOR XL SPORTSTER 84-90
Unmolded alternator stator for XL Sportster L84-90. Offers better cooling and longer lifespan. Replaces OEM 29967-84A/B.
Disponible bajo pedido
El proveedor prevé la llegada en unos 14 días.
Pregúntanos por WhatsApp
Disponibilidad en nuestras tiendas
Consultando disponibilidad...
⚠️
Debido a la situación actual del stock, el plazo de entrega previsto es superior a 30 días.

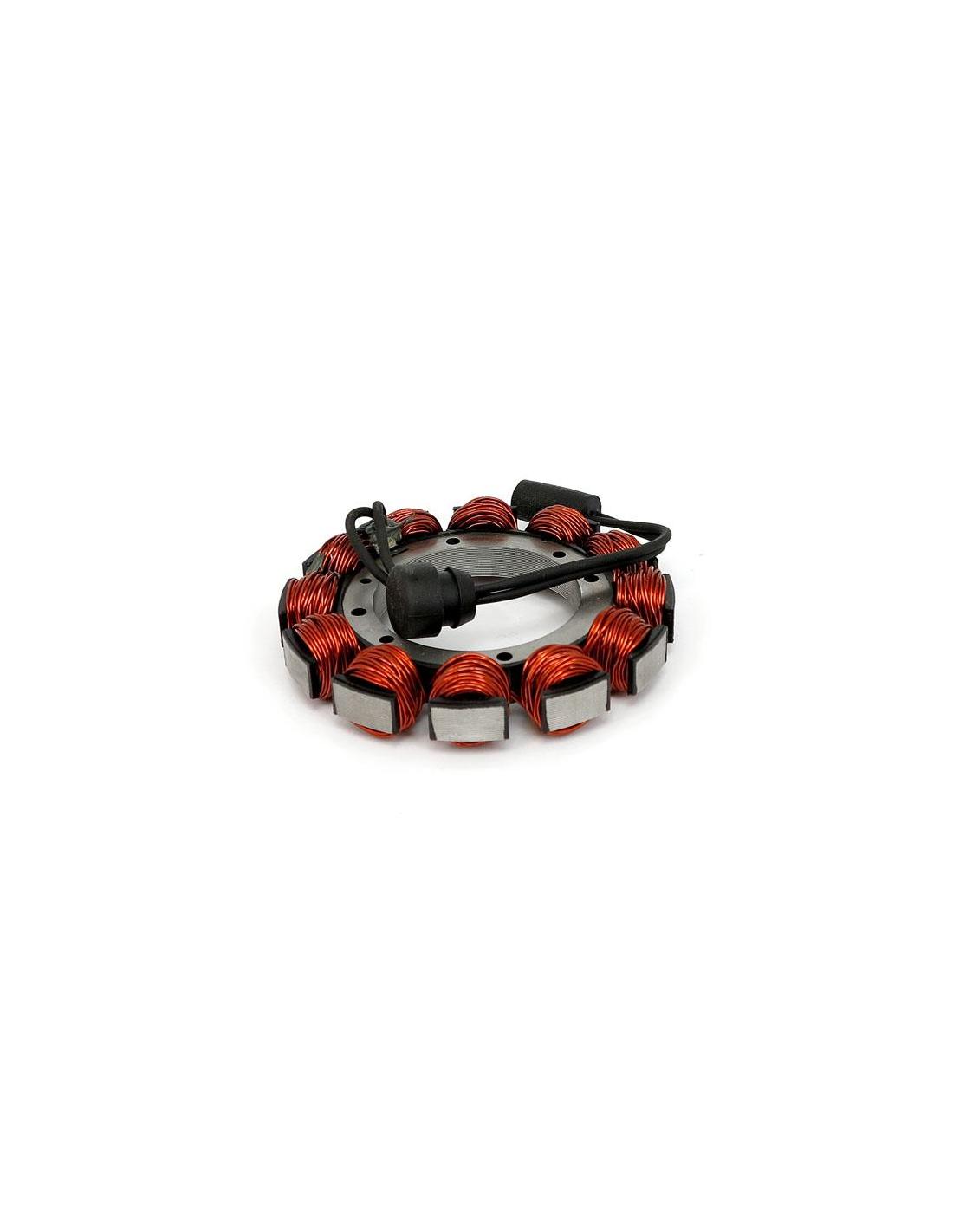

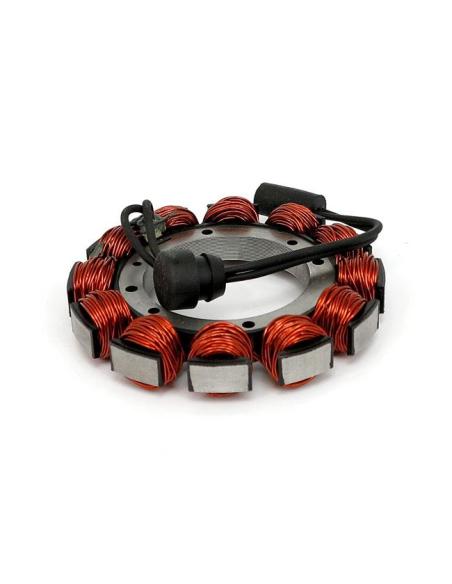

Unmolded Alternator Stator for Harley-Davidson XL Sportster L84-90. The unmolded design promotes direct cooling of the windings, reducing the risk of overheating and helping to prolong the lifespan. Direct replacement for the original component while maintaining OEM wiring and routing.
Key Benefits
- Better thermal dissipation due to the lack of encapsulation.
- Stable charging and consistent response from the 12V charging system.
- Robust construction with enameled copper windings and high-temperature insulation.
Compatibility
Models: L84-90 XL Sportster (NU).
Technical Specifications
| Type | Unmolded alternator stator |
|---|---|
| System Voltage | 12 V |
| Connection | As per OEM specification |
| OEM Replacement | 29967-84A/B |
| Winding Material | Enameled Copper |
| Insulation | High Temperature |
Installation and Recommendations
- Check the condition of the rotor and magnets; replace if there are cracks or demagnetization.
- Inspect the regulator/rectifier and wiring harness.
- Use a new primary gasket and seal the cable pass-through as per the service manual.
- Verify AC output from the stator and battery charge after installation.
Contents
- Alternator Stator
- Harness as per OEM application
Notes
- OEM Replacement: 29967-84A/B
- (NU) as per provider
NOTE: Returns are not accepted for this type of electrical product.
