40A ALTERNATOR STATOR HD 18-24 SOFTAIL 17-24 FLT/TOURING. WITH 40A SYSTEM
Unencapsulated 40A three-phase stator for Softail 18-24 and FLT/Touring 17-24 with a 40A system. Replaces OEM 29900055.
Stock disponible en proveedor
Entrega rápida.
Pregúntanos por WhatsApp
Disponibilidad en nuestras tiendas
Consultando disponibilidad...

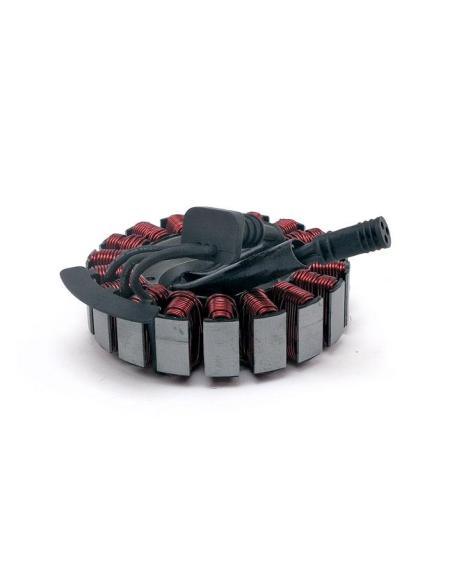

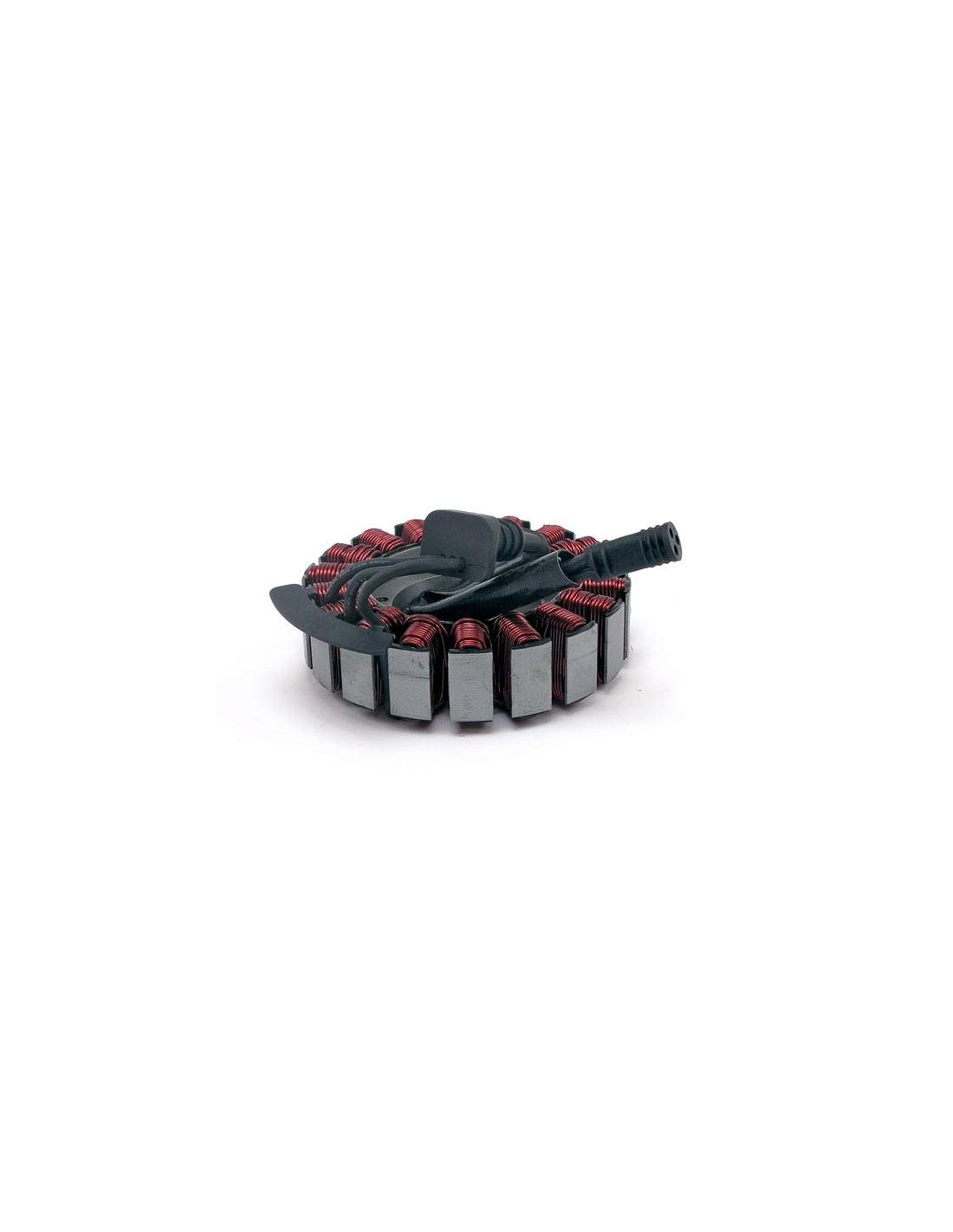

40A Unmolded Three-Phase Stator for Harley-Davidson Softail 2018-2024 and FLT/Touring 2017-2024 equipped with a 40A charging system. The unmolded design enhances cooling of the winding and improves reliability under heavy use.
Important
- Some later models come standard with 48A (three-phase). Verify your system (40A vs 48A) before purchasing.
Benefits
- Three-phase, 40A for stable 12V charging.
- Superior thermal management (unmolded).

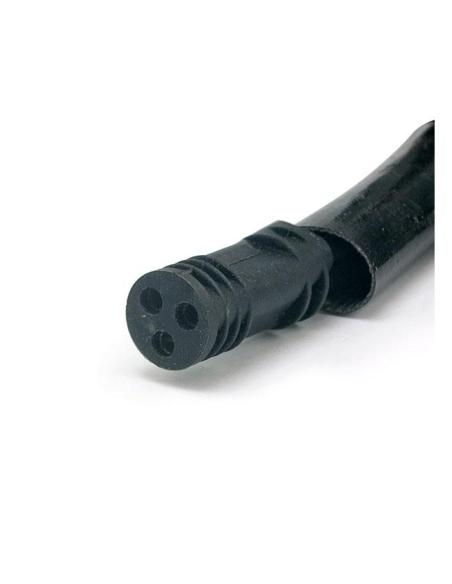

- OEM style mounting with original connectors and routing.
Compatibility
Models: 18-24 Softail; 17-24 FLT/Touring with 40A system.
Specifications
| Phases | 3 |
|---|---|
| Amperage | 40 A |
| System | 12 V |
| Type | Unmolded alternator stator |
| OEM Replacement | 29900055 |
Installation
- Check rotor (3-phase) and compatible 3-phase 40A regulator/rectifier.
- New primary gasket and cable pass-through sealing.
- Measure three-phase AC output and validate battery charging.
Includes
- 40A Three-Phase Stator
Note
- OEM Replacement: 29900055
NOTE: No returns accepted on this type of electrical products.
