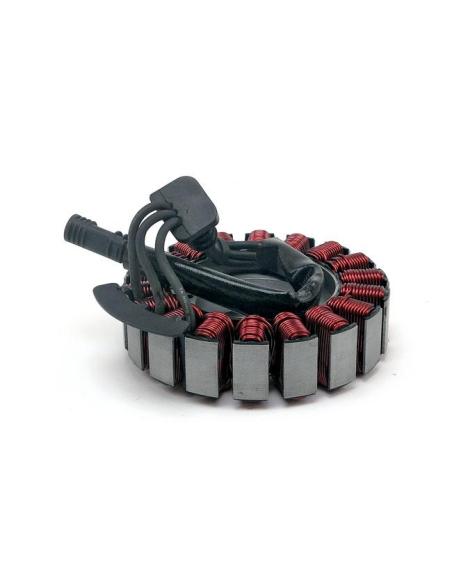

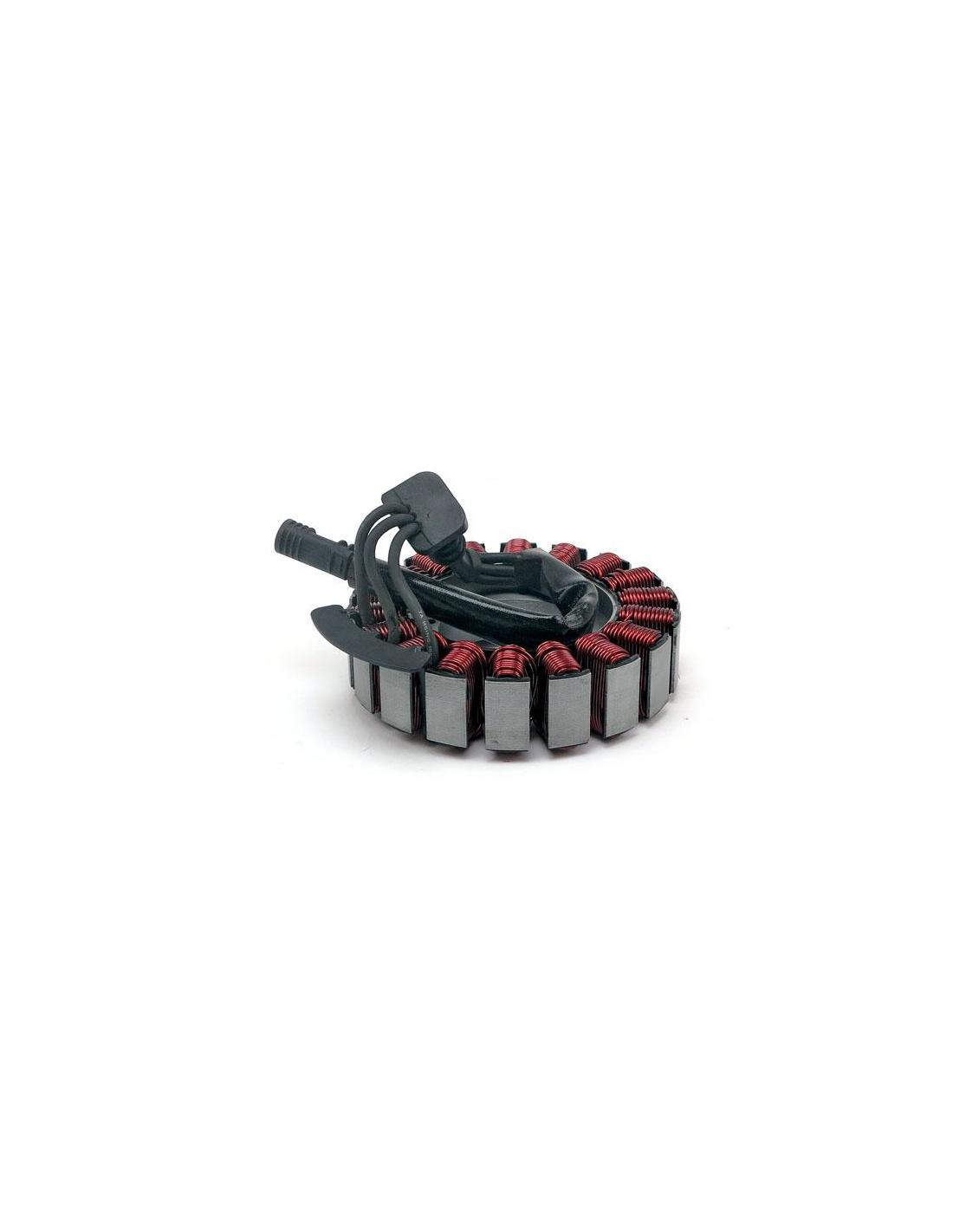

48A ALTERNATOR STATOR HD 18-24 SOFTAIL 17-24 FLT/TOURING WITH 48A SYSTEM
Unencapsulated Three-Phase Stator 48A for Softail 18-24 and FLT/Touring 17-24 (excl. 23-24 CVO and 2024 FLHX) with 48A system. Replaces OEM 29900042A.
Te avisamos cuando puedas pedirlo
Déjanos tu email y te avisaremos cuando este producto vuelva a estar disponible para pedir, también en proveedor o bajo pedido.
Agotado temporalmente
¿Quieres que busquemos una opción similar o consultemos cuándo podría estar disponible?
Pregúntanos por WhatsApp
Disponibilidad en nuestras tiendas
Consultando disponibilidad...
⚠️
Debido a la situación actual del stock, el plazo de entrega previsto es superior a 30 días.
48A Three-Phase Stator Unmolded for Harley-Davidson Softail 2018-2024 and FLT/Touring 2017-2024 (excl. 2023-2024 CVO and 2024 FLHX) equipped with a 48A system. Enhances load capacity and improves thermal management compared to molded versions.
Important
- Some early units had a 40A (3-phase) system. If your bike is 40A, this is not the part you need, use the corresponding reference. REFERENCE IGN-49335
Benefits
- Three-phase, 48A for high electrical demand.
- Optimized thermal dissipation (unmolded).

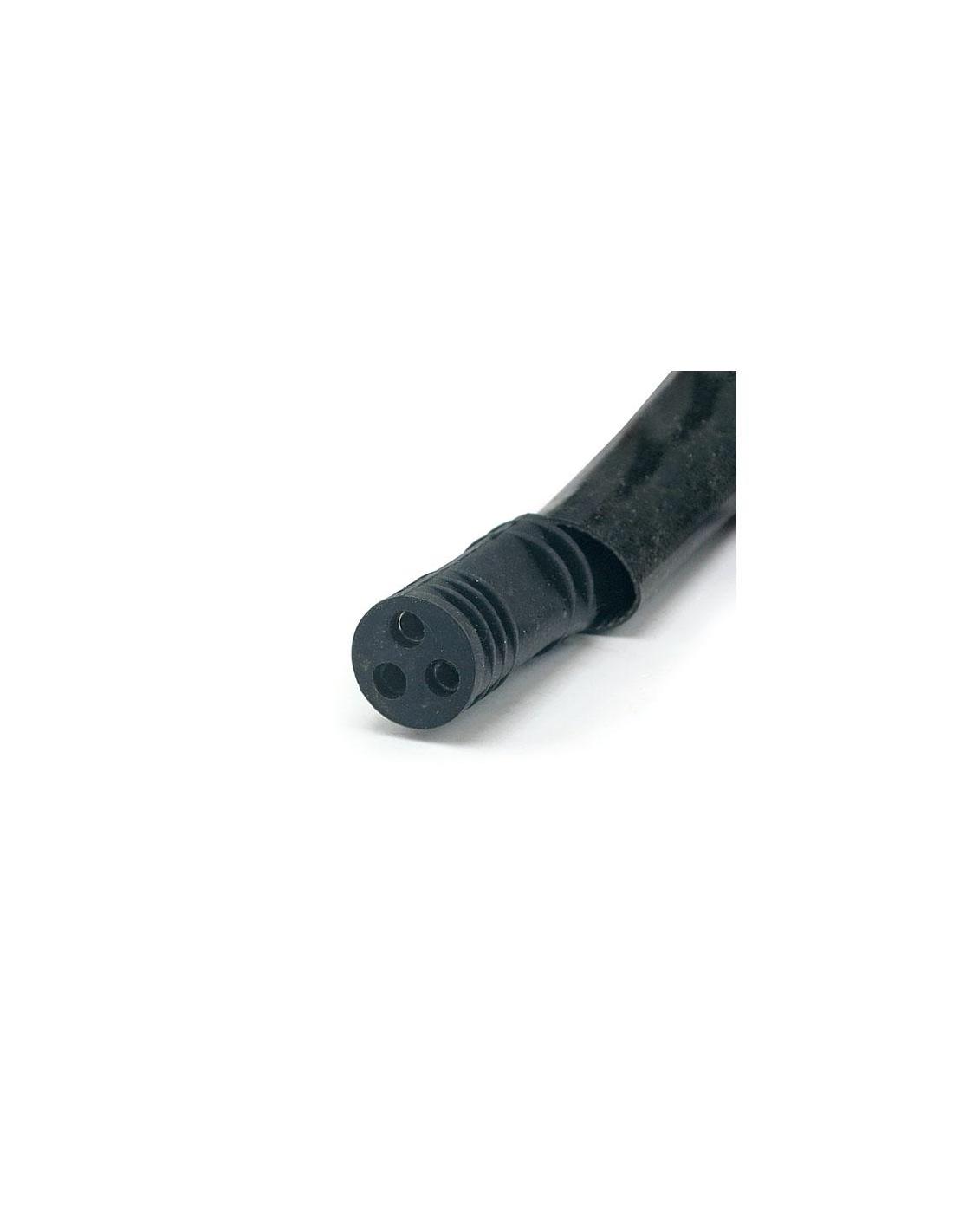

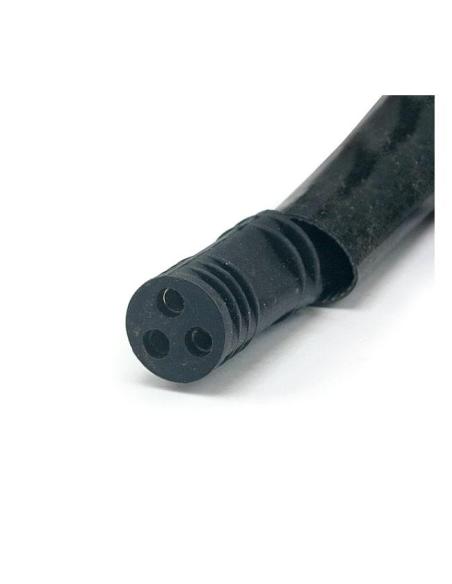

- OEM fit with original connectors.
Compatibility
Models: 18-24 Softail; 17-24 FLT/Touring (excl. 23-24 CVO and 2024 FLHX). With 48A system.
Specifications
| Phases | 3 |
|---|---|
| Amperage | 48 A |
| System | 12 V |
| Type | Alternator stator, unmolded |
| OEM Replacement | 29900042A |
Installation
- Check compatible rotor and regulator/rectifier for 3-phase 48A.
- Use a new primary gasket and seal the wire pass-through.
- Verify three-phase AC output and final charging voltage.
Includes
- 48A three-phase stator
Note
- OEM Replacement: 29900042A
NOTE: Returns are not accepted for this type of electrical product.
