BADLANDS MODULE BRAKE LIGHT ELIMINATOR SOFTAIL 2018-2024

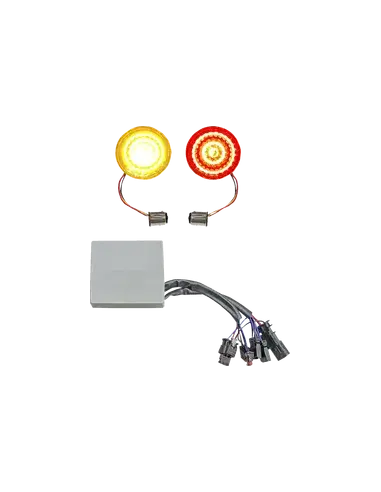

Badlands Brake Light Eliminator for Softail 2018-2024

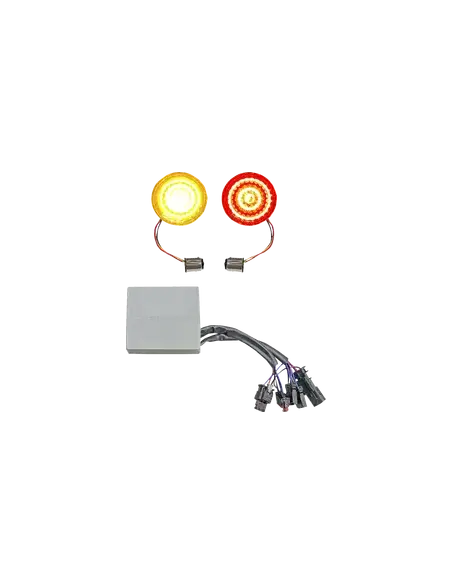

Customize the rear lighting system of your Harley-Davidson Softail effortlessly with the Badlands Brake Light Eliminator. This module is specifically designed for Softail 2018-2024 without central rear taillight, allowing you to electrically separate the functions that the rear turn signals originally share.

Thanks to its 100% Plug & Play design, it allows you to configure independent left and right turn signals, as well as providing separate outputs for running light, brake light, license plate illumination, and ground. It is an especially interesting solution for custom builds where you want to install amber rear turn signals and restore a more traditional rear lighting setup.

Main features

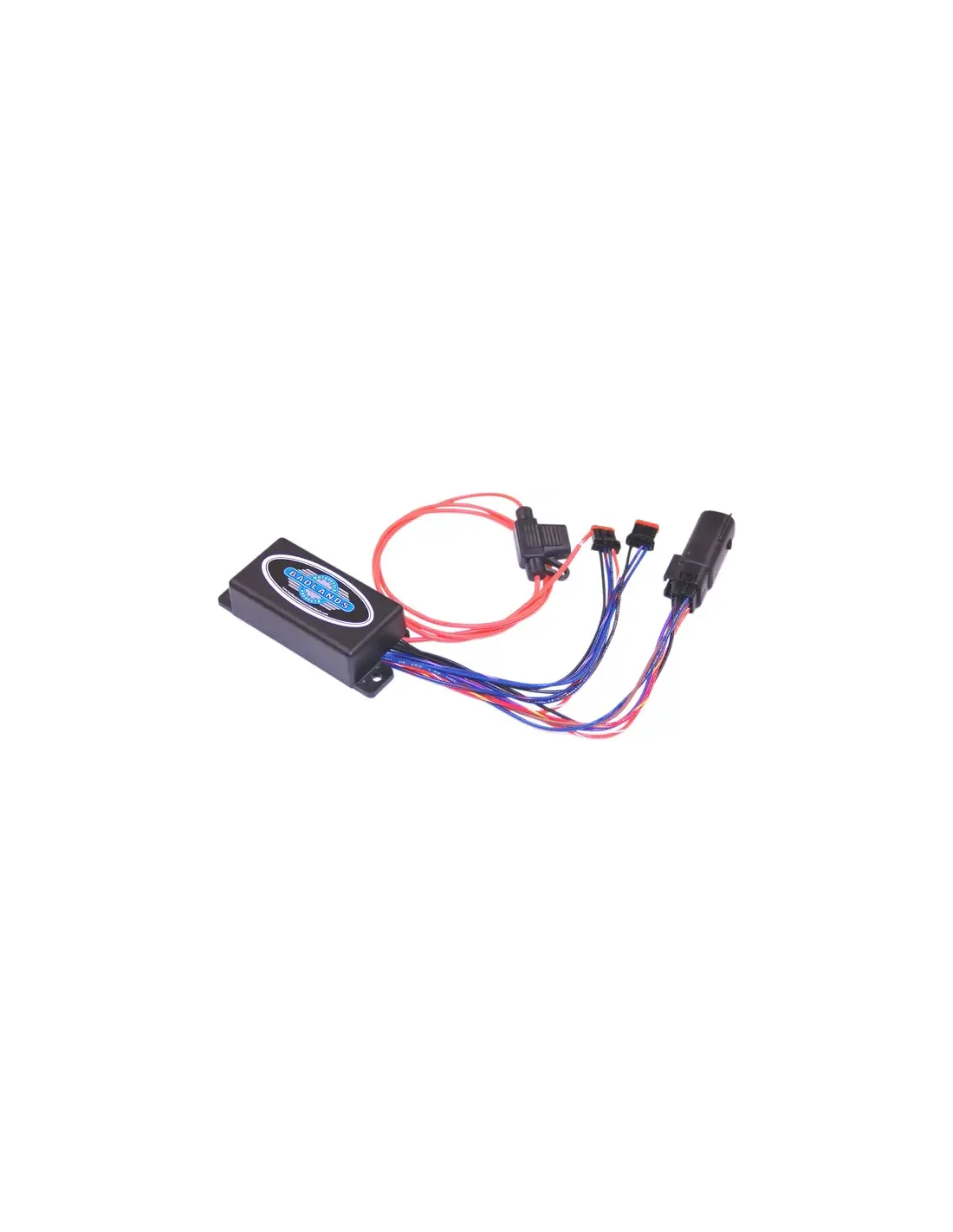

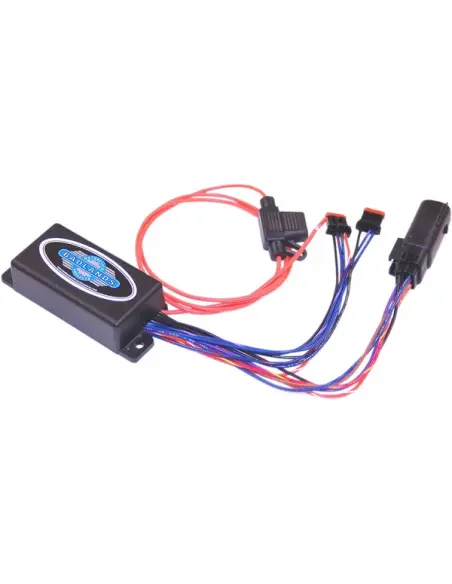

• Badlands Brake Light Eliminator module.
• Designed for Harley-Davidson Softail 2018-2024 without central rear taillight.
• 100% Plug & Play installation.
• Separates left and right turn signal functions.
• Provides independent running light function.
• Provides independent brake light function.
• Allows powering license plate illumination.
• Includes ground connection.
• Allows use of amber rear turn signals in compatible setups.
• Integrated Load Equalizer.
• Compatible with LED, halogen, and incandescent lighting.
• Designed to avoid CAN-Bus interference and fault codes related to lighting load.
• Suitable for custom projects and certain trailer installations.

Technical data

Separates brake and turn signal functions

In certain Harley-Davidson Softail 2018 and later without central rear taillight, the brake signal shares wiring with the turn signal function of the rear lights.

This module allows you to separate those functions to have independent turn signals and separate circuits for running and brake lights, making it easier to install a more traditional rear setup.

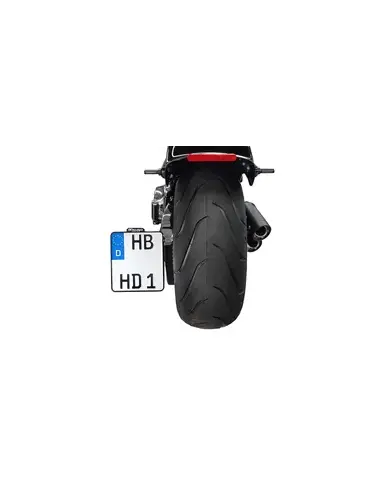

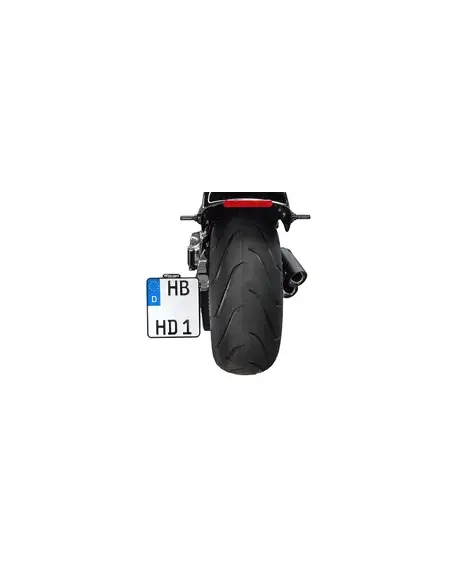

Ideal for amber rear turn signals

By electronically separating the different functions, the Brake Light Eliminator allows custom setups with amber rear turn signals, keeping the running and brake light functions separate.

Integrated Load Equalizer

The module incorporates an integrated Load Equalizer that allows it to work with different lighting technologies, including:

• LED.
• Halogen.
• Incandescent.

This helps prevent operational issues related to electrical load, interference with the CAN-Bus system, or the appearance of fault codes in compatible setups.

Harley-Davidson compatibility

Exclusively compatible with Harley-Davidson Softail 2018-2024 without central rear taillight.

It should not be considered compatible with all Softail 2018-2024. It is essential to check that the motorcycle uses the rear setup without central taillight before ordering.

Note on references

The information provided identifies the module as IHL-04-A, although the technical description also mentions reference IHL-04-BO in combination with a complete rear harness. It is advisable to verify the exact product reference before publishing or ordering to avoid confusion between both variants.

Installation recommendations

Although the system is designed for Plug & Play installation, always check the lighting diagram, connectors, and motorcycle configuration before assembly.

After installation, check the correct operation of turn signals, running light, brake, and license plate illumination before riding.
