EVO FLASHER 3 TURN SIGNAL MODULE ELEKTRONIKBOX SOFTAIL DYNA TOURING 1996-2000 XL 1987-2003

Upgrade your Harley-Davidson turn signal system with the Elektronikbox Evo Flasher 3 module. Designed as a direct replacement for the original module, it offers a much more compact format and robust construction, along with practical features for more comfortable and safer riding. Suitable for LED turn signals and halogen bulbs.

Main features

• Replaces original OEM reference: 68540-96

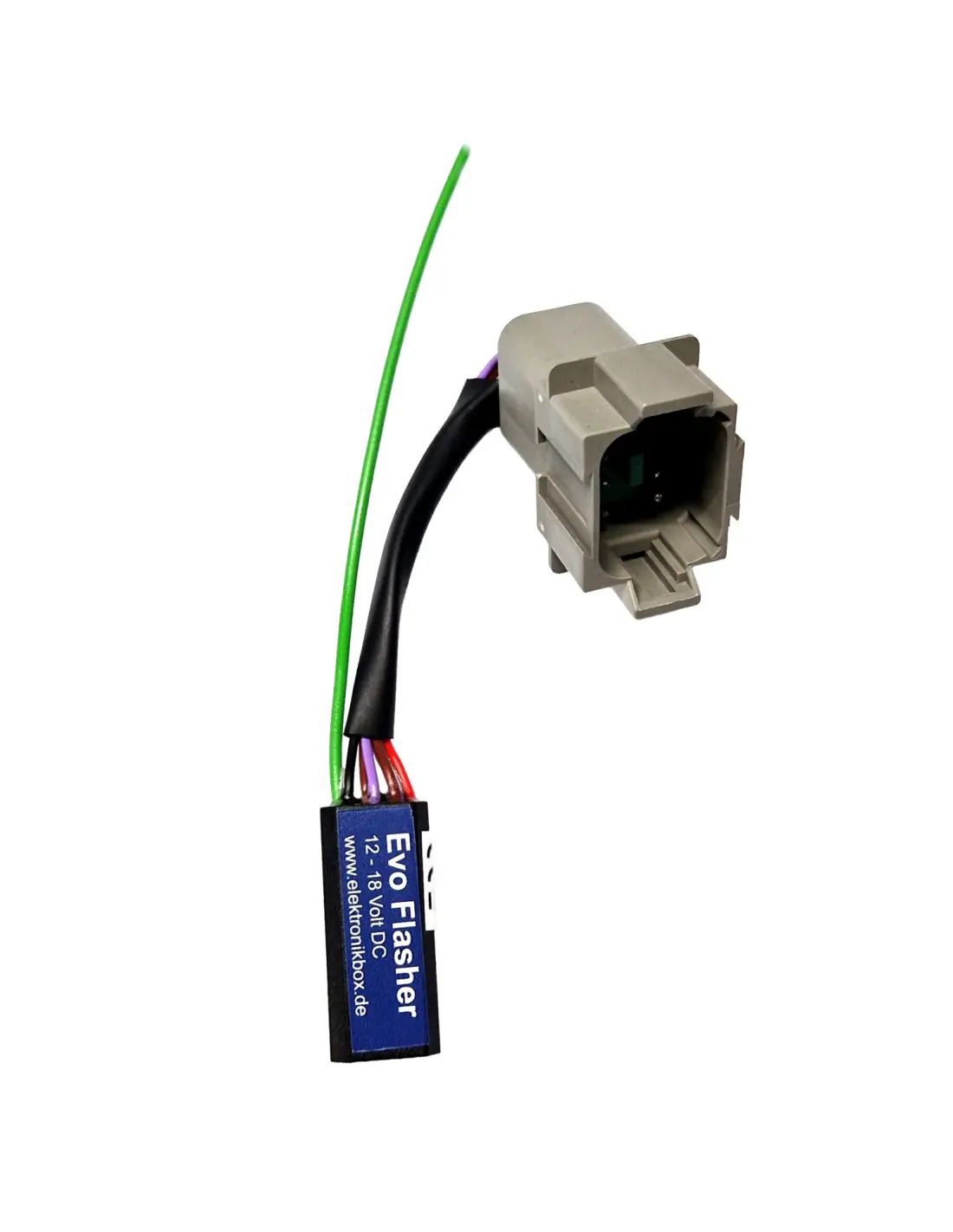

• Elektronikbox Evo Flasher 3 turn signal module.
• Integrated automatic cancellation function.
• Press shorter than 0.5 seconds: 4 flashes for overtaking.
• Press longer than 0.5 seconds: 40 flashes with automatic cancellation.
• A new press stops the flashing.
• Integrated hazard light function: press the left and right controls simultaneously to activate it; press either one to stop it.

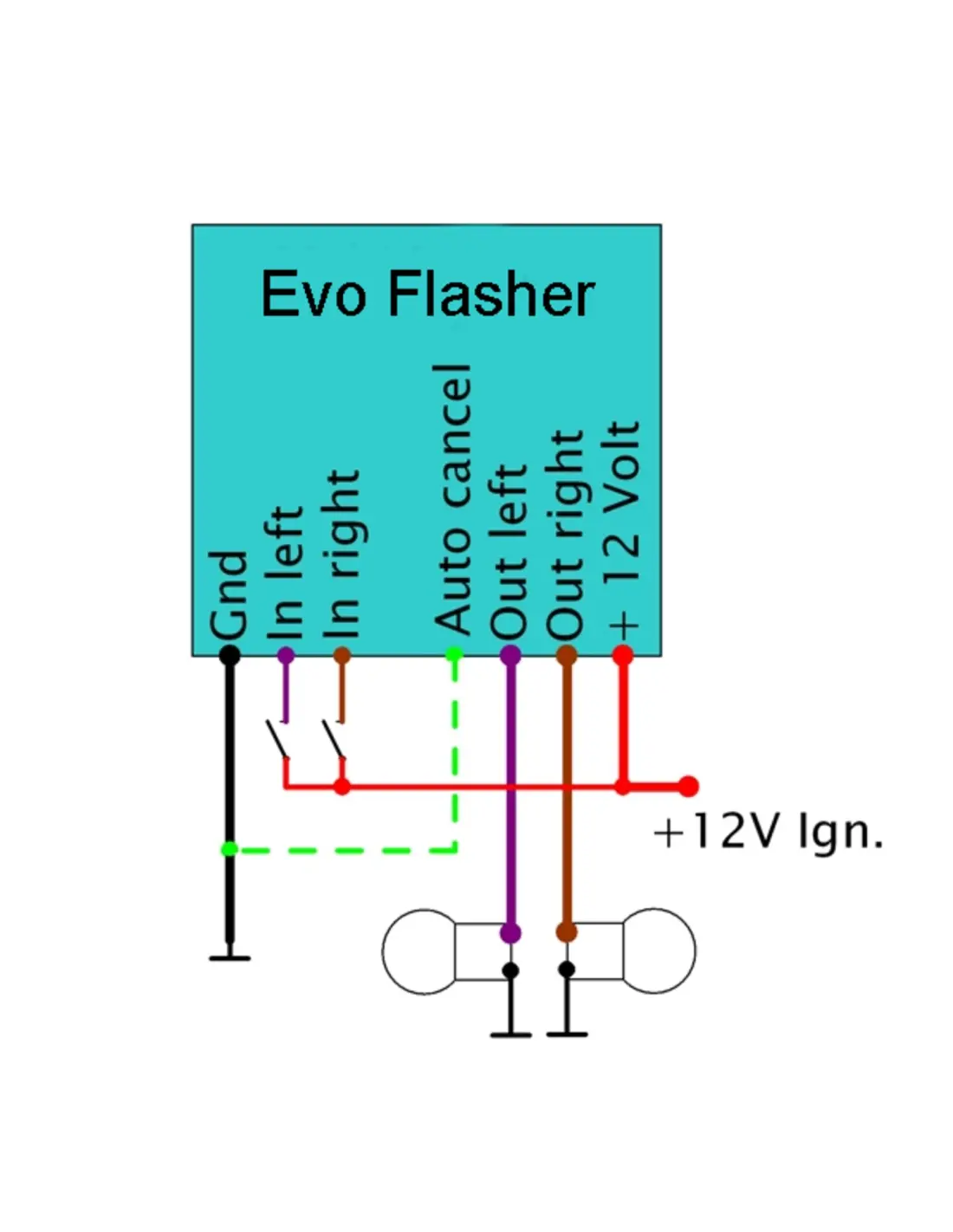

• Automatic cancellation can be disabled by connecting the green wire to ground.
• Compatible with LED turn signals or halogen bulbs.
• Input voltage range: 7 to 18 V.
• Maximum output power: 40 W per output.
• Dimensions: 38 x 16 x 11 mm.
• ABS body encapsulated with two-component epoxy resin.
• Maximum ambient temperature: 80 °C.
• Connections: 0.14 mm² inputs and 0.75 mm² outputs.

Use and purpose

• Ideal for replacing an original turn signal module while retaining signalling functions.
• Especially suitable for installations with LED or halogen turn signals.
• Its compact size makes neat installation easier in maintenance or electrical upgrade projects.

Compatibility / recommended use

• Harley-Davidson Softail 1996-2000.
• Harley-Davidson Dyna 1996-2000.
• Harley-Davidson Touring 1996-2000.
• Harley-Davidson XL Sportster 1987-2003.
• Requires an 8-pin connector.

Choose from Iguana Custom a compact and functional electronic replacement to restore reliable signalling on your classic Harley, with features designed for everyday use and the open road.
