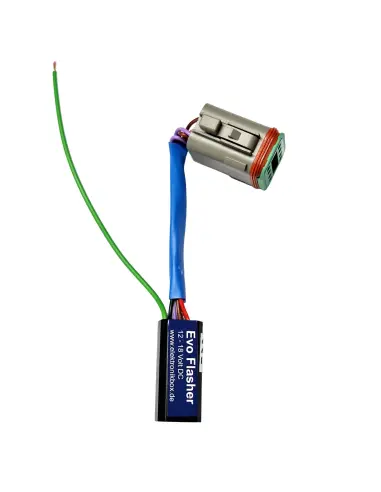

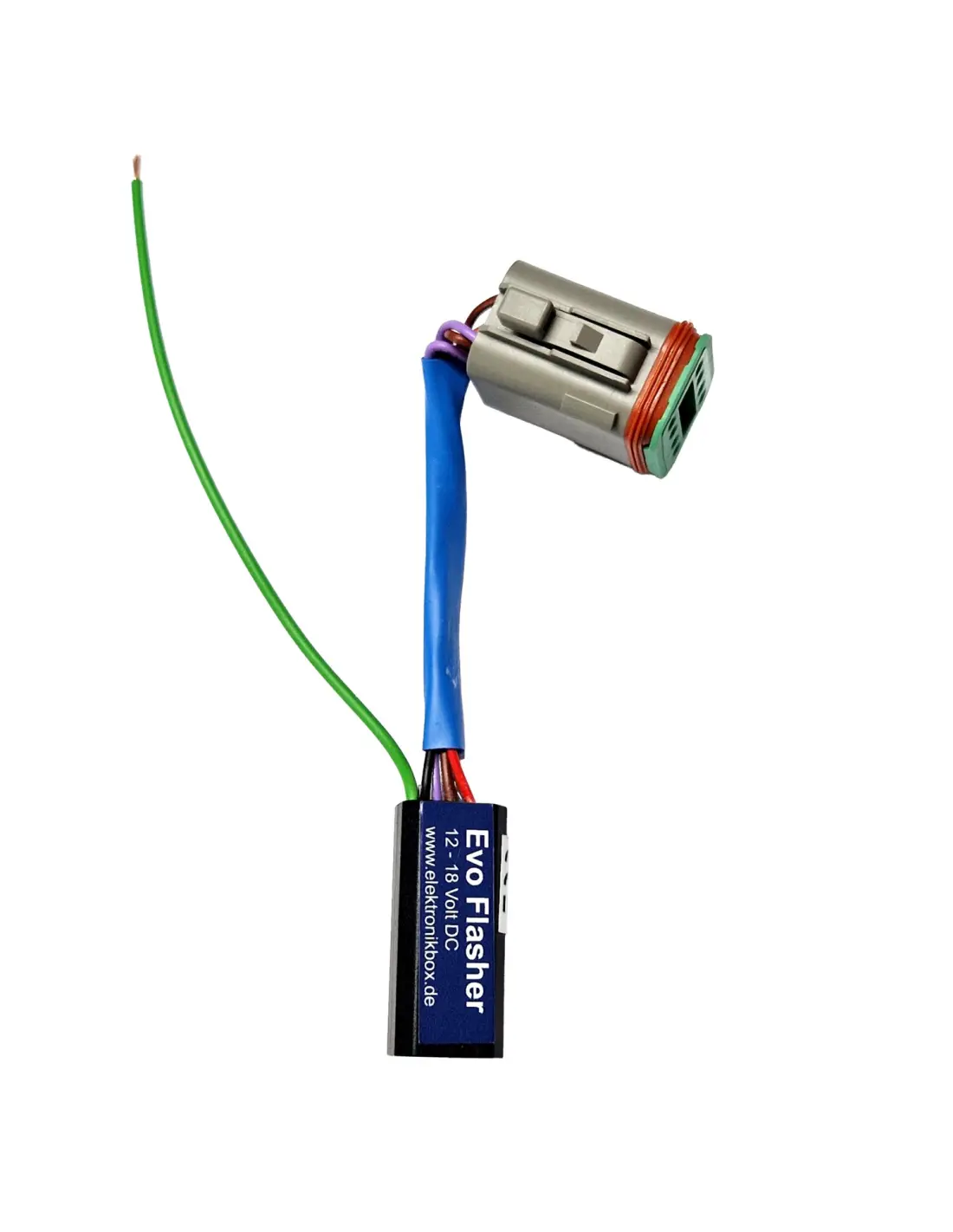

ELEKTRONIKBOX EVO FLASHER 1 TURN SIGNAL MODULE TOURING 1994-1996 XL 1995-1996

Upgrade your Harley-Davidson turn signal control with the Elektronikbox Evo Flasher 1 module. Designed as a direct replacement for the original module, it offers a much more compact format and robust construction, incorporating practical features for a more comfortable and safer ride. It is suitable for both LED turn signals and halogen bulbs.

Main features

• Replaces original OEM reference: 68570-94B
• Elektronikbox Evo Flasher 1 turn signal module.
• Overtaking function: press for less than 0.5 seconds for 4 flashes.
• Normal turn signaling: press for more than 0.5 seconds for 40 flashes with automatic cancellation.
• Manual turn signal cancellation by pressing again.
• Automatic cancellation can be disabled by connecting the green wire to ground.
• Integrated hazard light function: press the left and right buttons simultaneously to activate it; press either one to stop it.
• Compatible with LED turn signals and halogen bulbs.
• Input voltage range: 7 to 18 V.
• Maximum output power: 40 W per output.
• Dimensions: 38 x 16 x 11 mm.
• ABS housing encapsulated with two-component epoxy resin.
• Connections: 0.14 mm² inputs and 0.75 mm² outputs.
• Maximum ambient temperature: 80 °C.

Purpose and application

• Ideal for replacing an original turn signal module or integrating a compact solution into an electrical repair.
• Provides temporary signaling for overtaking, automatic shut-off and hazard lights in a single module.
• Its compatibility with LED and halogen lighting makes it suitable for customized lighting configurations.

Compatibility / recommended use

• Harley-Davidson Touring 1994-1996.
• Harley-Davidson XL 1995-1996.
• Check your motorcycle's electrical connections and original reference before installation.
