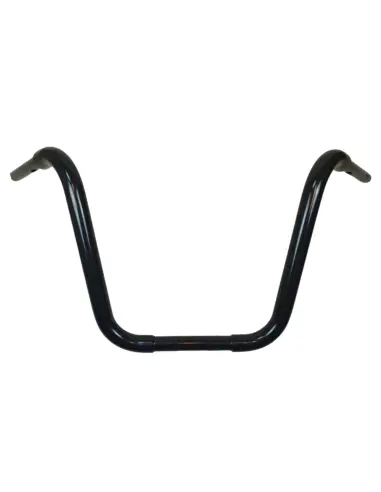

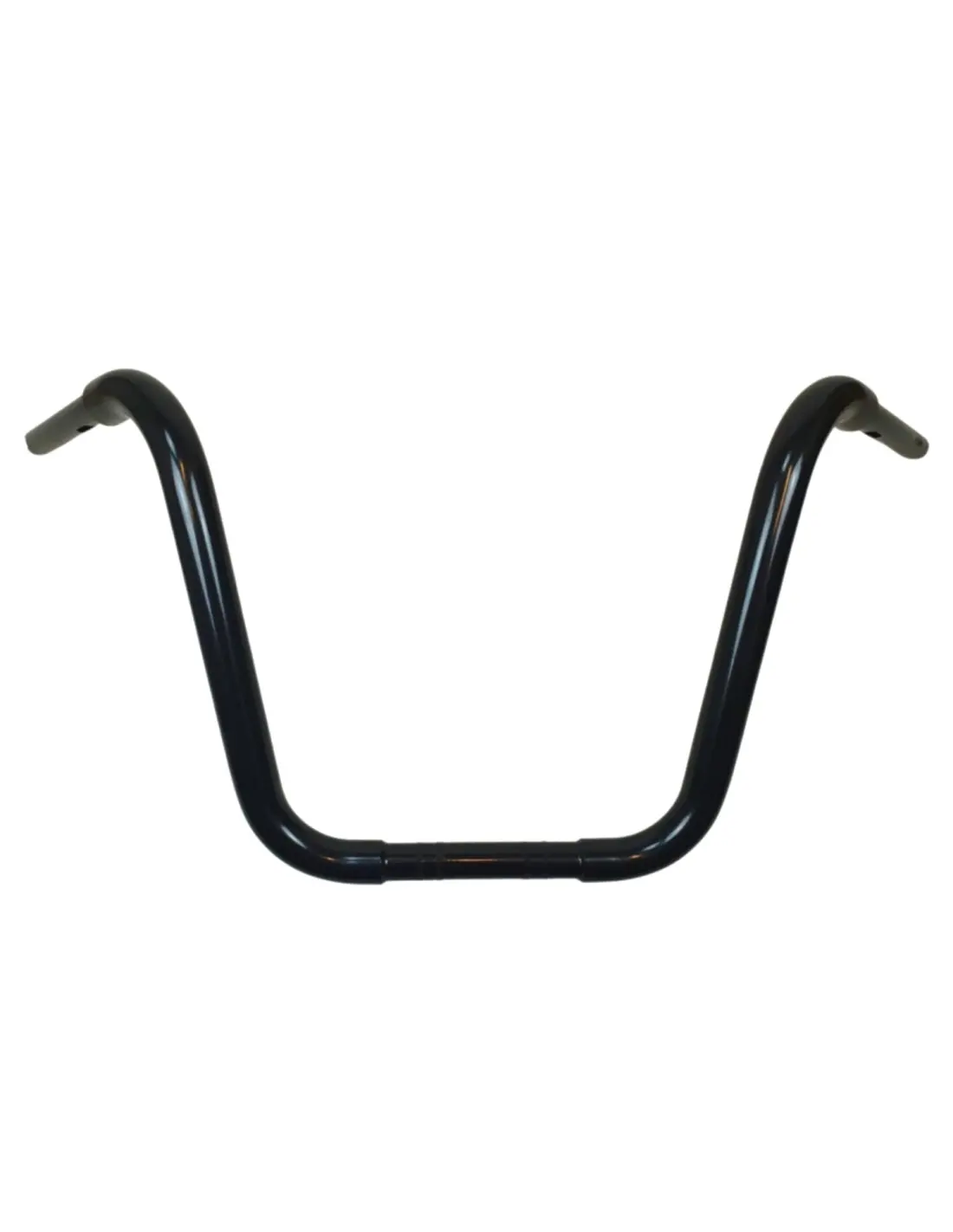

WESTLAND CUSTOMS ULTRA APE HANDLEBAR BLACK 16" H-D TBW 2008-2024 EXC. FLTR 2015-2024

The 16-inch Ultra Ape handlebar from Westland Customs provides a high, imposing riding position with genuine custom style. Its reinforced-diameter construction and satin black finish with gloss make it an ideal choice for transforming the look and ergonomics of your Harley-Davidson equipped with electronic throttle.

Main features

• Brand: Westland Customs.
• Height: 41 cm / 16 inches.
• Handlebar outer diameter: 38 mm / 1-1/2 inches.
• Riser clamping area: 32 mm / 1-1/4 inches.
• Grip and control area: 25.4 mm / 1 inch.
• Finish: satin black gloss powder coating.
• Material: certified EN 10305-3 CR1 E195 S5 cold-drawn steel tubes, in 38 x 3 mm, 32 x 3 mm and 25.4 x 2 mm sizes.
• Manufacturing: precision TIG welding.

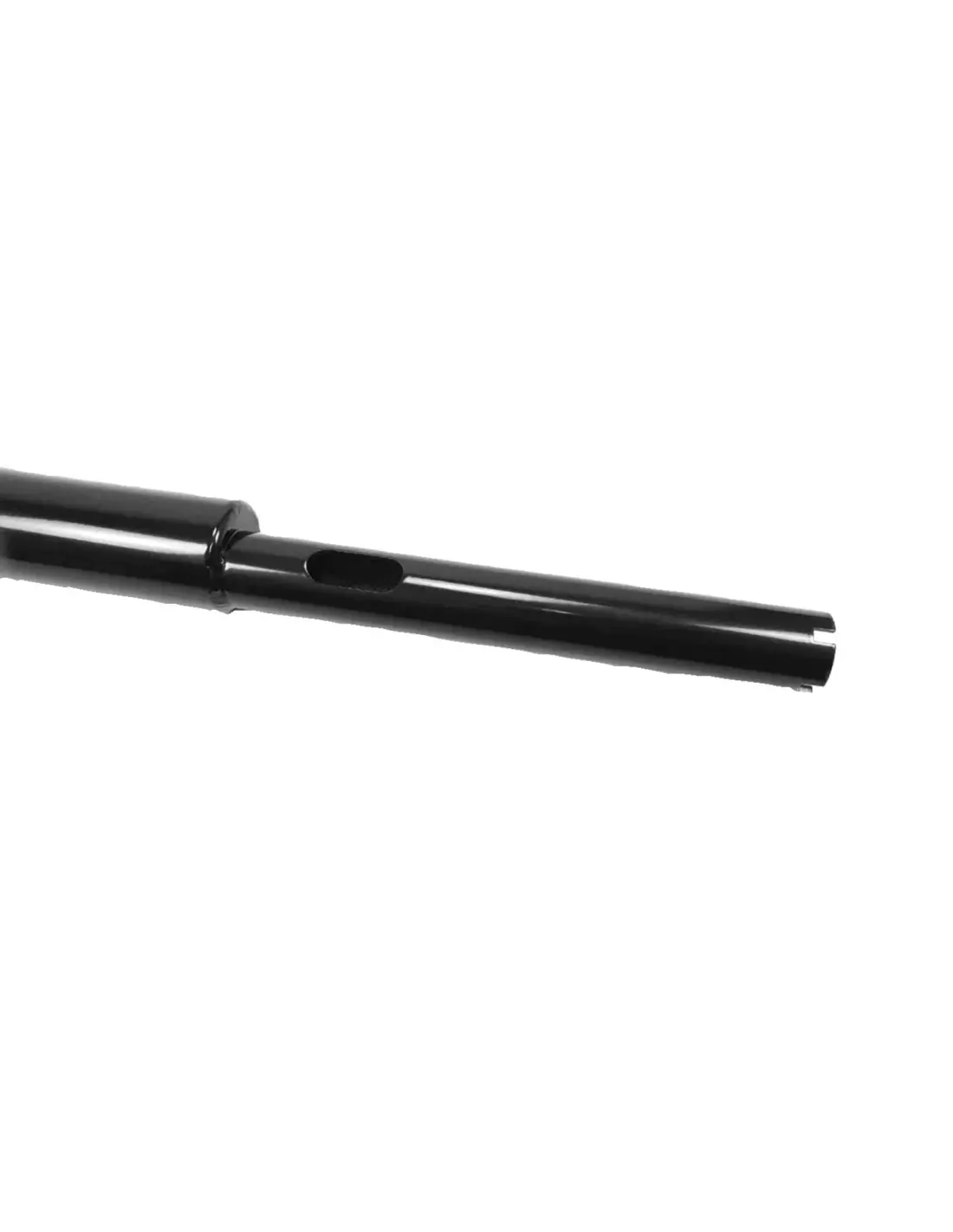

• Electrical preparation: slotted and pre-drilled for internal wiring installation.
• Prepared for: H-D electronic throttle e-throttle / TBW.

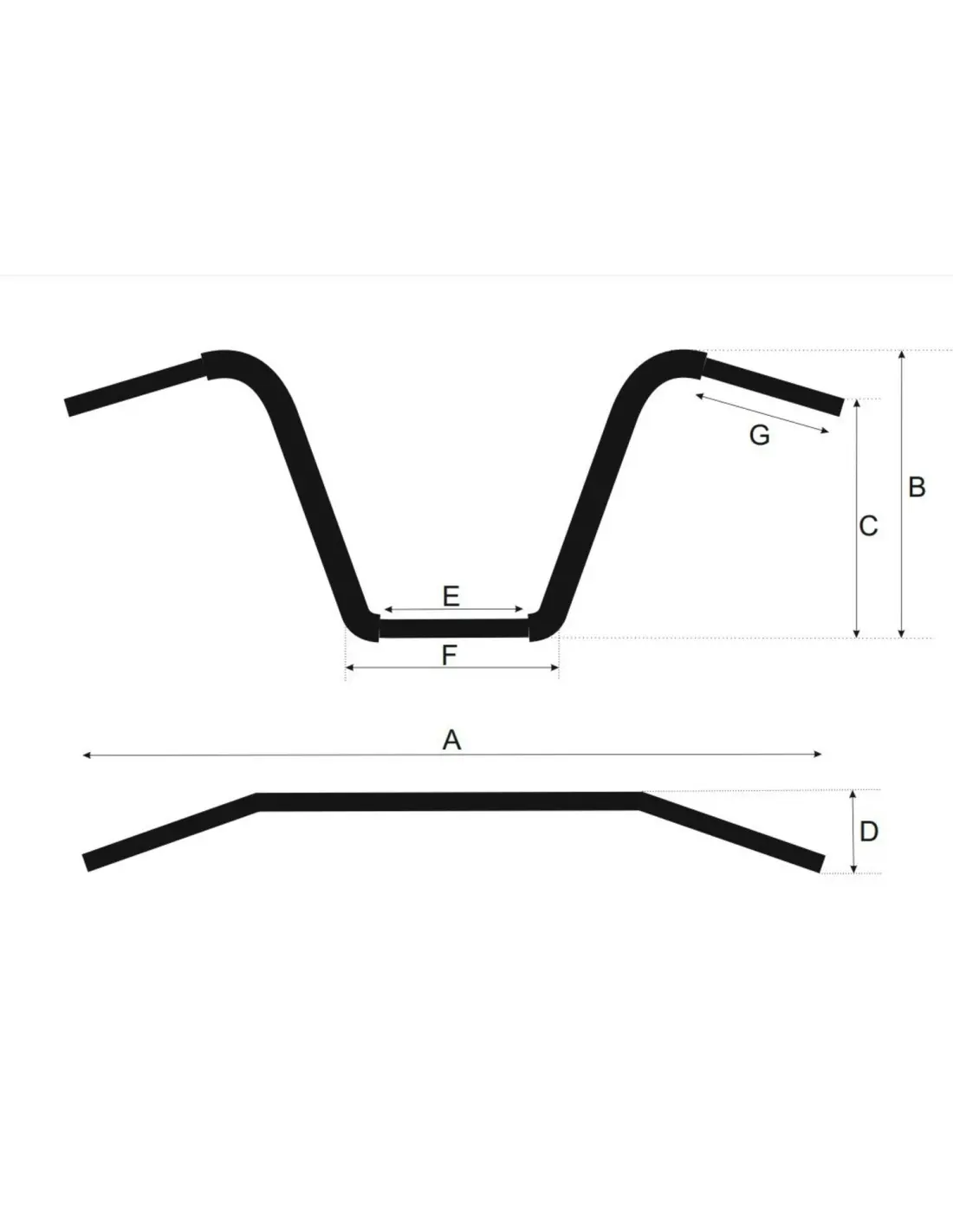

• Measurements in mm: A 900, B 410, C 370, D 250, E 155, F 350 and G 200.

Use and purpose

• Designed to achieve a high riding position and an unmistakable apehanger look.
• Its 38 mm diameter gives the motorcycle front end an extra-thick, robust appearance.
• Internal cable routing helps maintain a cleaner, more customised installation.
• Installation may require extending cables, electrical wiring and brake lines.

Compatibility / recommended use

• Compatible with Harley-Davidson models featuring Gen1 electronic throttle from 2008 to 2024 and risers with a 1-1/4-inch internal diameter.
• Excludes: FLTR models from 2015 to 2024.
• Checking the riser and control configuration, as well as the required lengths, before installation is recommended.

Enhance your custom’s character with a European-made handlebar designed to stand out both parked and on the road. Find the components you need at Iguana Custom to complete your project with personality.
