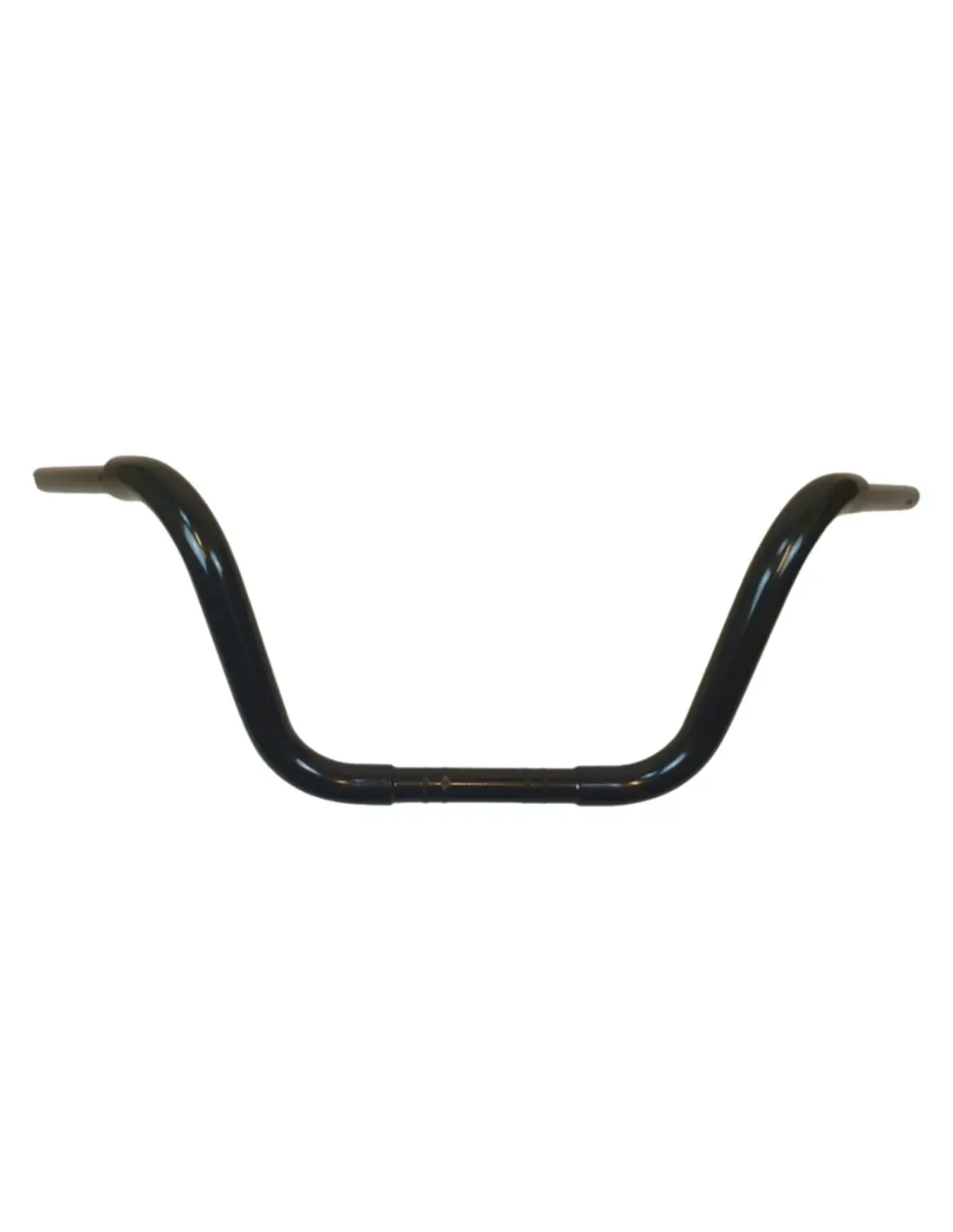

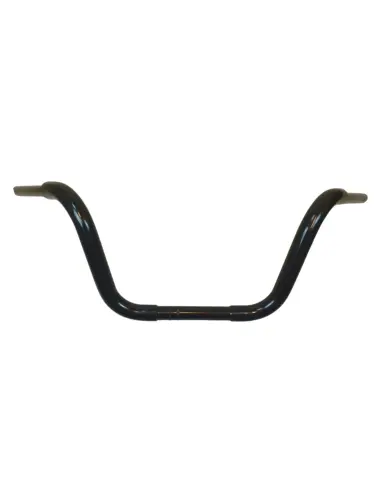

WESTLAND BLACK ULTRA APE HANDLEBAR 38 MM 12”

The Westland Customs 12-inch Ultra Ape handlebar provides a raised riding position, a bold custom look and the unmistakable character of ape hangers. Its large-diameter construction and black powder-coated finish deliver a solid presence to transform the front end of your compatible Harley-Davidson.

Main features

• Brand: Westland Customs.
• Height: 30 cm (12 inches).
• Handlebar outer diameter: 38 mm (1-1/2 inches).
• Riser mounting area: 32 mm (1-1/4 inches) diameter.
• Grip and control area: 25.4 mm (1 inch) diameter.
• Finish: satin black with gloss, applied by powder coating.
• Material: certified EN 10305-3 CR1 E195 S5 cold-drawn steel tubing, in 38x3 mm, 32x3 mm and 25.4x2 mm sizes.
• Manufacturing: precision TIG welding and production in the EU.

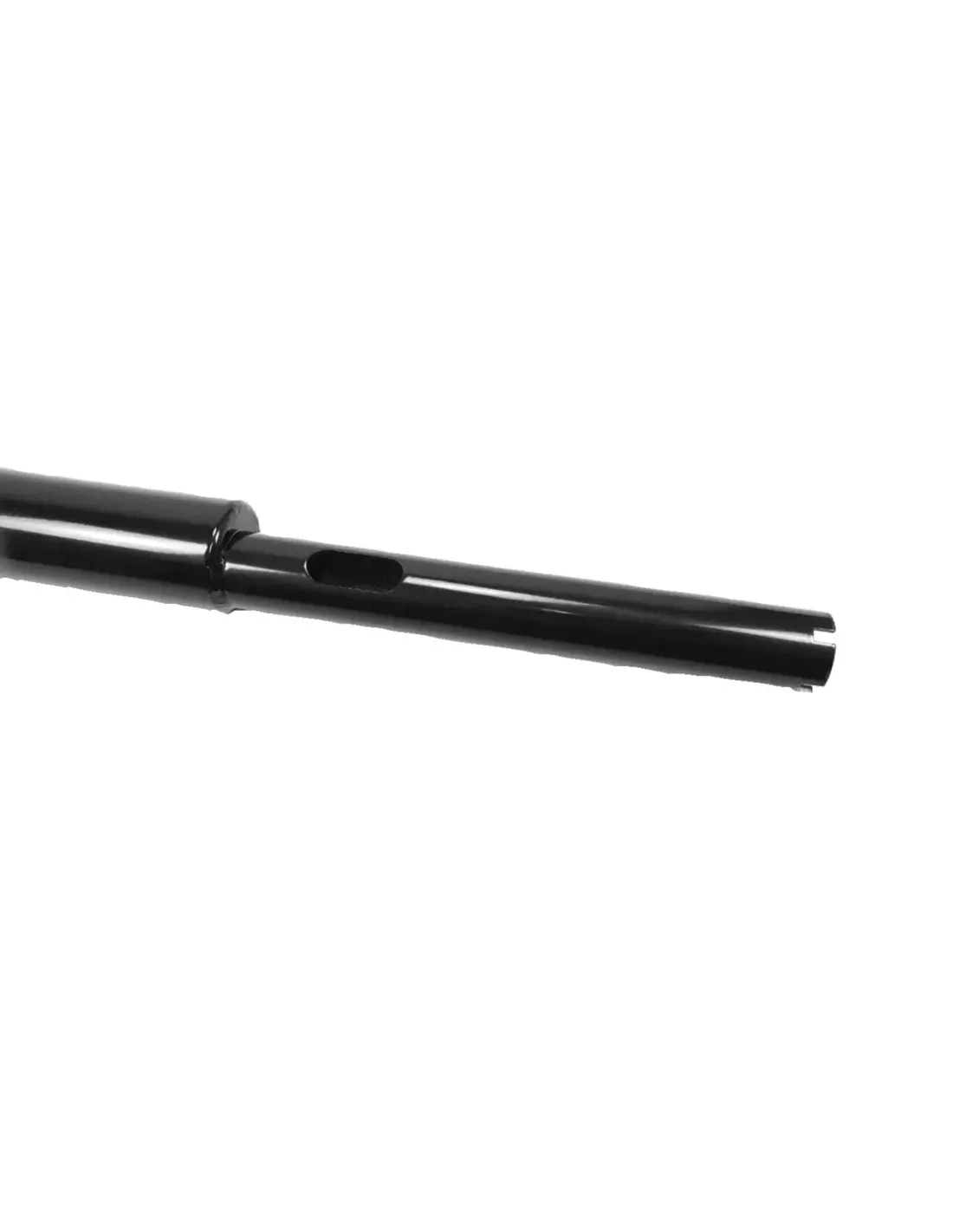

• Preparation: slotted and pre-drilled for internal wiring installation.

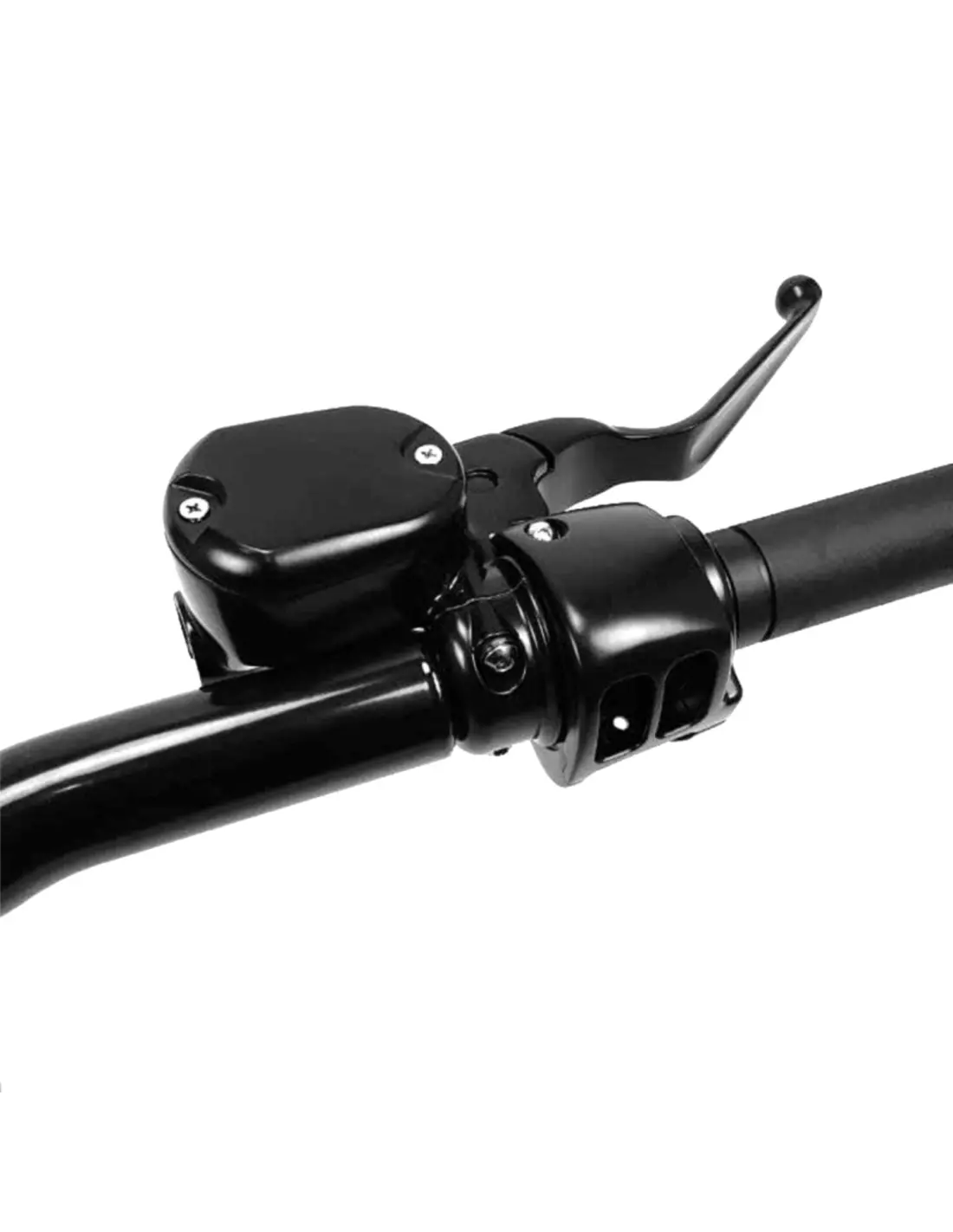

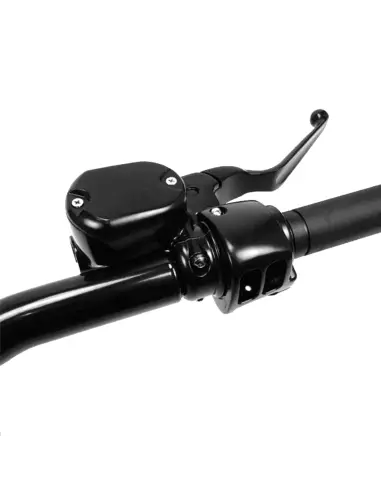

• Design: notched for H-D electronic throttle, also known as TBW or Throttle By Wire.

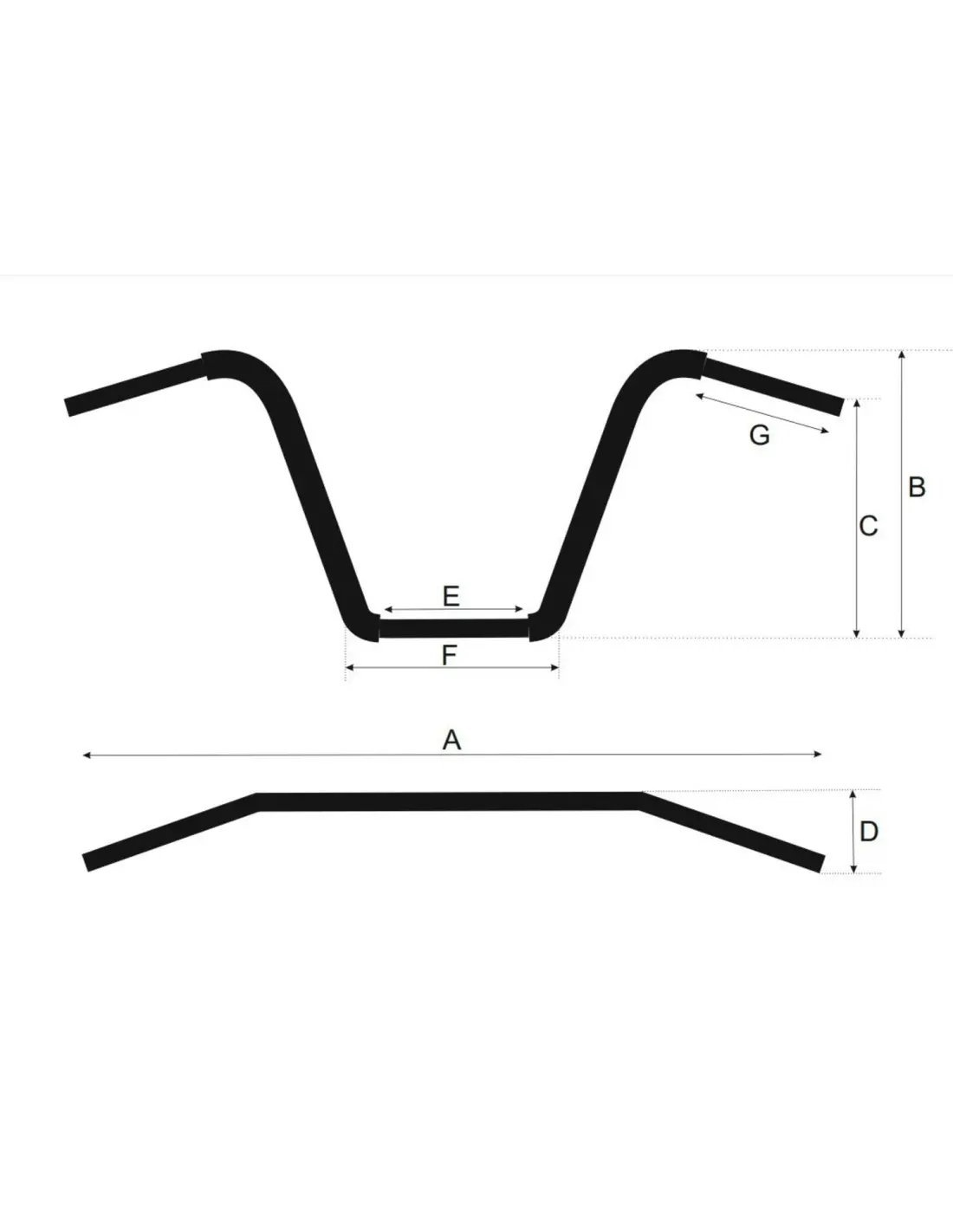

• Measurements in mm: A 900, B 300, C 260, D 250, E 155, F 350 and G 200.

Use and purpose

• Ideal for custom projects seeking a high riding position and a more pronounced chopper or bobber look.
• Internal wiring routing helps achieve a cleaner visual finish around the handlebar.
• Depending on the installation, extending cables, electrical wiring and brake lines may be necessary.

Compatibility / recommended use

• Compatible with Harley-Davidson motorcycles featuring Gen1 electronic throttle from 2008 to 2024 and risers with a 32 mm (1-1/4 inch) inner diameter.
• Excludes: Harley-Davidson FLTR models from 2015 to 2024.
• Compatibility with other models, years or configurations is not specified.

Give your motorcycle a taller, more aggressive and personalised silhouette with Westland Customs quality. Find the accessories you need to complete your custom build at Iguana Custom.
