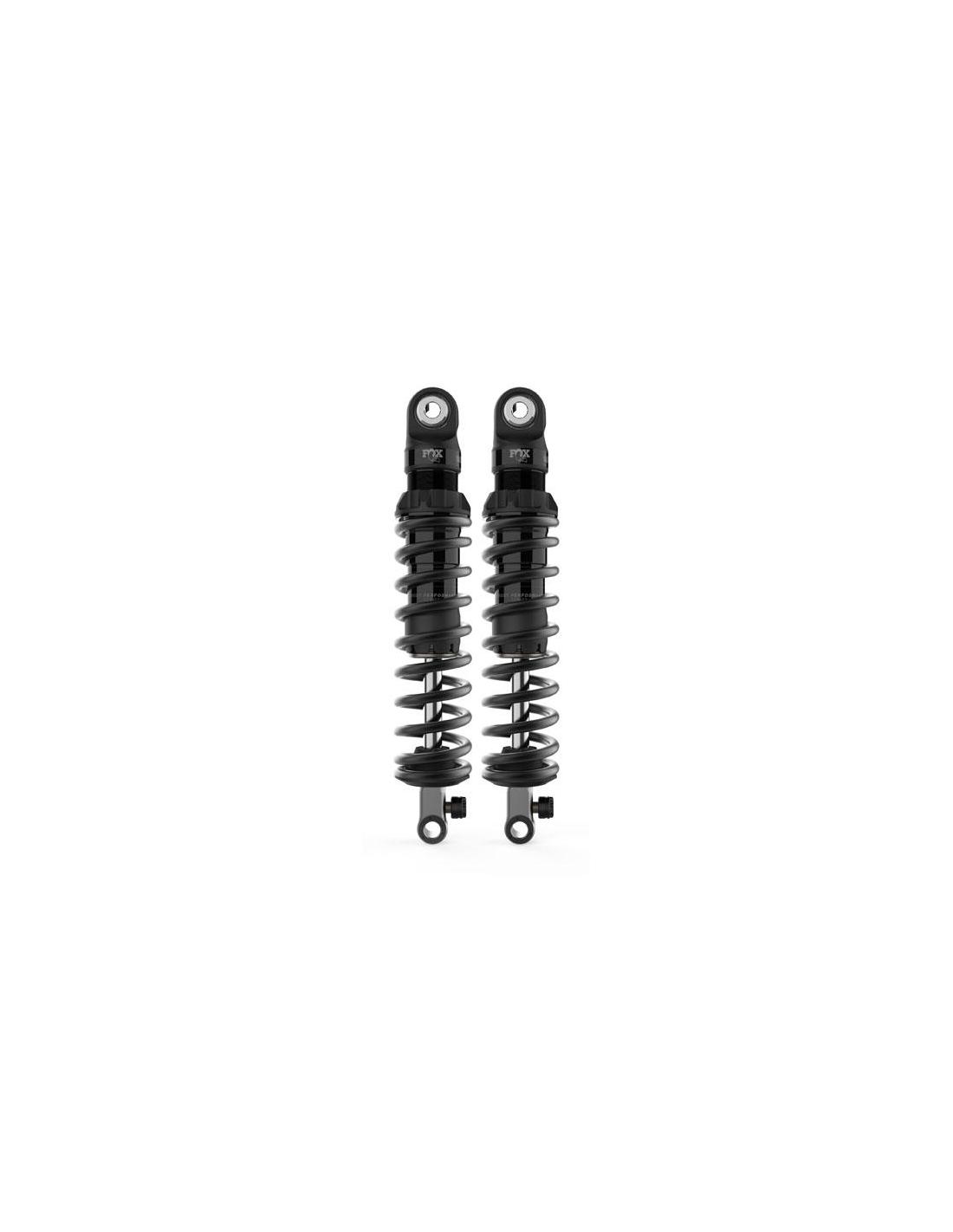

FOX IFP-R 14" SHOCK ABSORBERS BLACK FXR 1982–1994 (NU)
FOX IFP-R 14? for FXR 1982–1994 (NU). Elevate your ride height for better angle and control, featuring 24-position adjustable rebound, IFP mono-tube, Ø1.5? body, and Ø5/8? shaft. Standard spring and preload with guide marks.
Disponibilidad en nuestras tiendas
Consultando disponibilidad...
Height and Fine-Tuning for Your FXR. The FOX IFP-R 14? raise the rear for more clearance and support in fast corners. With 24-click rebound adjustment, you can tailor the extension to the road, tires, and load, preventing bounce and pogo.
The IFP mono-tube design separates gas and oil for stable damping; the 6061-T6 Ø1.5? hard anodized Type III body enhances thermal dissipation; the Ø5/8? hard chrome-plated shaft provides sensitivity and durability. Includes preload wrench and guide marks for precise sag setting.
Technical Specifications
| Application | Harley-Davidson FXR 1982–1994 (NU) |
|---|---|
| Length | 14? (raised height) |
| Architecture | Mono-tube gas (IFP) |
| Adjustments | 24-position rebound · Preload |
| Body | 6061-T6 aluminum Ø1.5?, Type III hard anodized |
| Shaft | Ø5/8? hard chrome-plated |
| Spring | Standard Duty Linear Rate |
| Rebuild | 100% rebuildable and re-valvable |
Benefits
- More angle and stability in strong supports.
- Wide rebound adjustment for fine-tuning performance.
- Consistent hydraulic performance under demanding use.
Recommended Setup
- Base: Rebound 10/24 · sag 25–30%.
- +2 clicks for control with load; ?2 for comfort over bumps.
Installation
- Check clearances with fender/exhaust and brake line length if applicable.
