SEAL AND DUST COVER KIT ALL BALLS RACING FOR 39 MM FORK

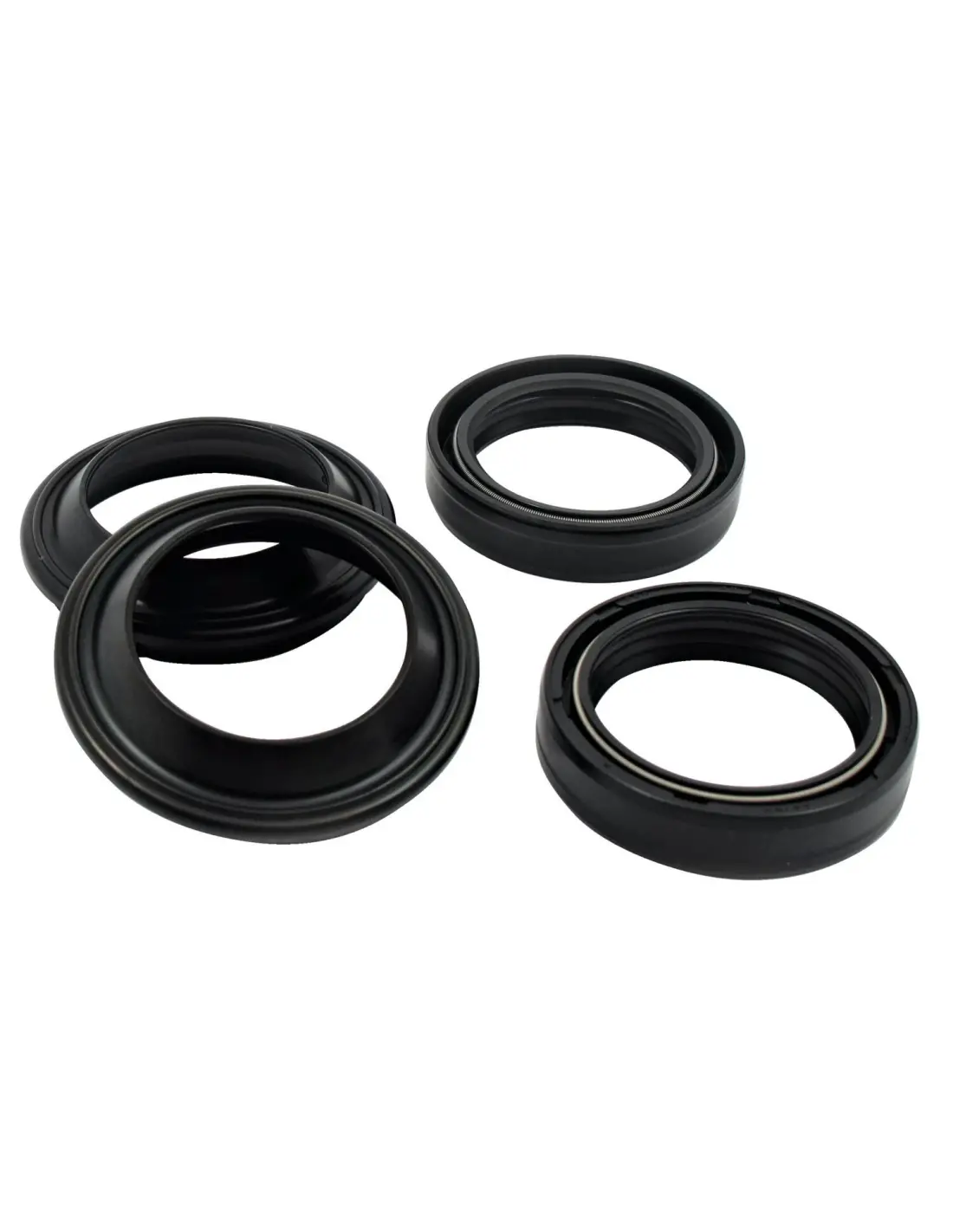

All Balls Racing kit of fork seals and dust covers for 39 mm fork

Restore the sealing and proper functioning of the front suspension with this All Balls Racing kit of fork seals and dust covers for 39 mm forks. The set includes the necessary components to renew both tubes, providing a practical solution for repairing oil leaks or performing periodic fork maintenance.

The seals feature directional ribs that facilitate their orientation during installation. The kit comes with two oil seals and two dust covers, allowing you to replace all the external sealing elements of the fork in a single operation.

Main features

• Complete kit for both fork tubes.
• Compatible with 39 mm forks.
• Includes two oil seals.
• Includes two dust covers.
• Seals with directional ribs to facilitate assembly.
• Suitable for maintenance, repair, or rebuilding of the front suspension.
• Manufactured by All Balls Racing.

Technical data

Harley-Davidson compatibility

Compatible with the following Harley-Davidson motorcycles equipped with 39 mm forks:

• Harley-Davidson XL Sportster: 1988-2022, except XL1200X from 2016 to 2022, XL1200XS from 2016 to 2020, and XL1200CX from 2016 to 2020.
• Harley-Davidson FXR, all models: 1988-1994.
• Harley-Davidson FXLR: 1987.
• Harley-Davidson FXRS-SP: 1987.
• Harley-Davidson Dyna: 1991-2005, except FXDWG Wide Glide.

Harley-Davidson exclusions

• Not compatible with XL1200X from 2016 to 2022.
• Not compatible with XL1200XS from 2016 to 2020.
• Not compatible with XL1200CX from 2016 to 2020.
• Not compatible with Dyna FXDWG Wide Glide.

Honda compatibility

• Honda 650 CB: 1983-1985.
• Honda 650 CX: 1983.
• Honda 700 VFC: 1985-1987.
• Honda 700 VFF: 1984-1985.
• Honda 700 VT: 1984-1987.
• Honda 750 CBX, European version: 1994-2001.
• Honda 750 VFC: 1988.
• Honda 750 VFF: 1983-1984.
• Honda 750 VT: 1983.
• Honda 800 VT Shadow: 1988.
• Honda 900 CBF: 1979-1982.
• Honda 1000 CBC: 1983.
• Honda 1100 CBF Super Sport: 1983.
• Honda 1100 CBX: 1981-1982.
• Honda 1100 GL: 1980-1983.
• Honda 1100 GLA: 1982-1983.
• Honda 1100 GLI: 1980-1983.

Suzuki compatibility

• Suzuki VS 600 Intruder, European version: 1995-1997.
• Suzuki VSGLP 750 Intruder: 1988-1991.
• Suzuki VSGL 800 Intruder: 1992-2009.

Check before ordering

The motorcycle must retain a compatible 39 mm fork. Matching model and year does not guarantee installation when the front suspension has been replaced or modified.

Before ordering, check the exact model code, year of manufacture, tube diameter, and the configuration of the installed fork.

Installation and maintenance

Replacing the seals requires disassembling the tubes, draining the oil, and using appropriate tools to remove and install the components without damaging the sealing surfaces. During the process, the tubes, bushings, housings, and sliding surfaces should be inspected.

Follow the orientation indicated by the ribs on the seals and use the type, quantity, and oil level specified in the motorcycle's service manual.

Installation by a qualified professional is recommended. Incorrect assembly can cause oil leaks and affect the operation of the suspension or front brake.
