PRIMARY COVER GASKET JAMES FOAMET SILICONE FOR HD FXR AND TOURING 1994-2006

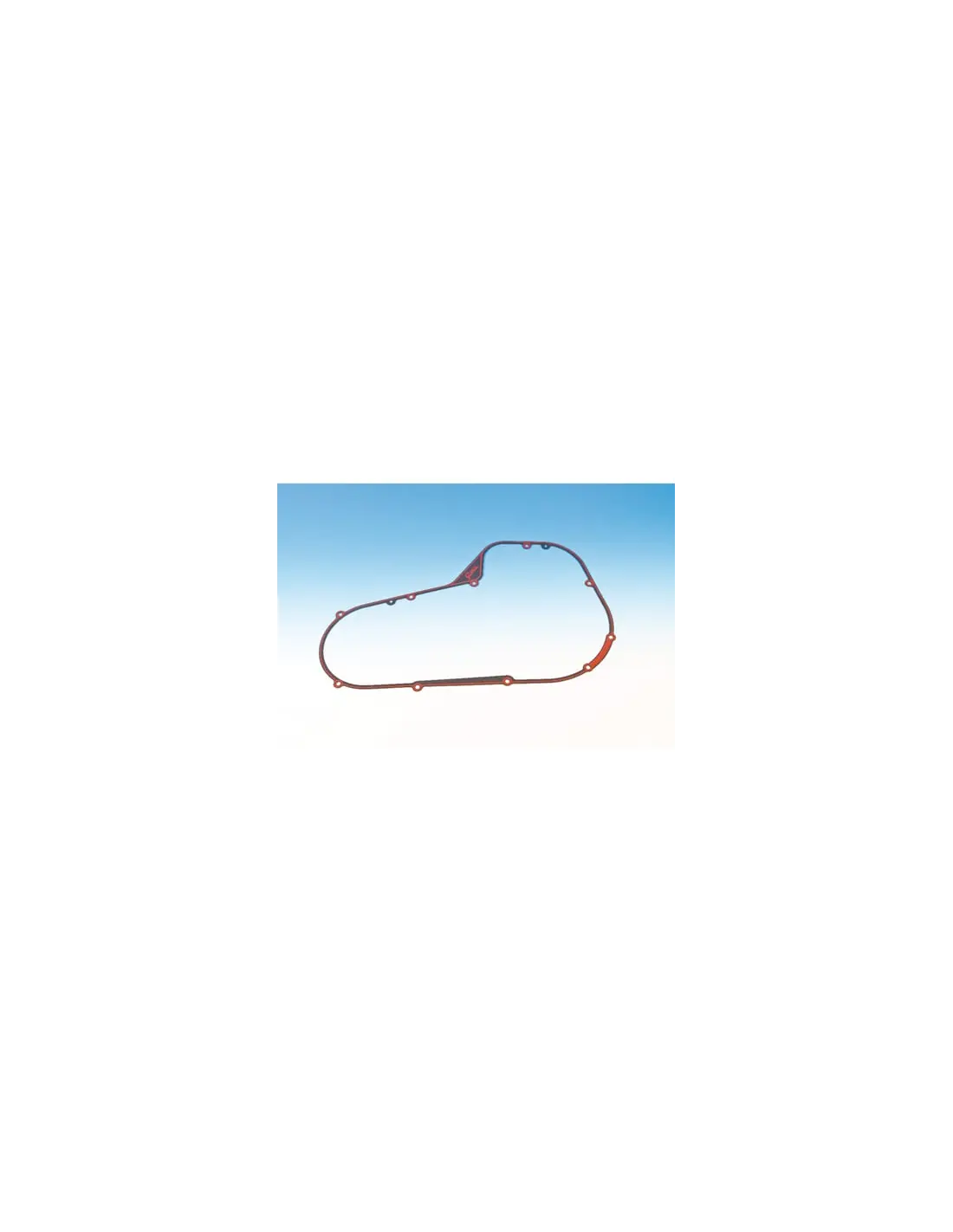

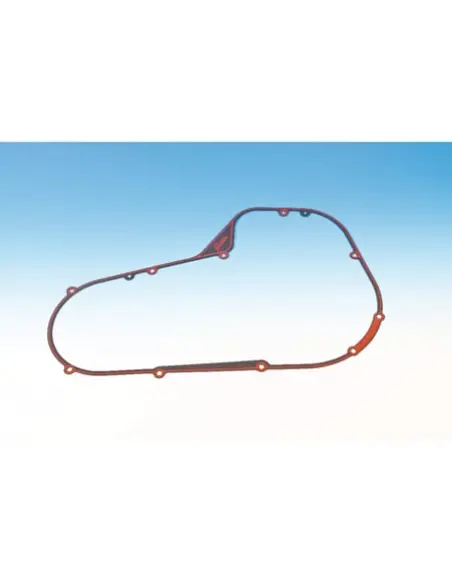

James Foamet gasket with silicone for Harley-Davidson primary cover

Get reliable sealing on your Harley-Davidson primary cover with this James Foamet gasket with silicone bead. Designed as a replacement for the original gasket, it combines an aluminum metal core with layers of nitrile synthetic rubber foam to provide a stable sealing surface and properly adapt to the contact surfaces.

The integrated silicone bead reinforces the sealing areas and makes this gasket a particularly suitable solution for maintenance or repair operations on the primary transmission in compatible models.

Main features

• Gasket for primary cover.
• Manufacturer: James.
• Foamet material (Foam Coated Metal).
• Central aluminum core.
• Thin layer of nitrile synthetic rubber foam adhered to both sides.
• Integrated silicone bead.
• Replacement equivalent to OEM reference 34901-94C.
• Compatible with Harley-Davidson FXR 1994.
• Compatible with Harley-Davidson FLT/Touring 1994-2006.

Technical data

James Foamet technology

The Foamet material used by James incorporates an aluminum core coated on both sides with a thin layer of nitrile synthetic rubber foam. This combination offers a stable base and helps adapt to small irregularities in the mating surfaces.

The silicone bead added to the gasket helps reinforce the sealing in the areas specified by the manufacturer.

OEM reference

Replaces Harley-Davidson OEM reference 34901-94C.

It is recommended to check the original reference installed on the motorcycle before placing the order, especially on modified bikes or those with replaced primary transmission components.

Harley-Davidson compatibility

• FXR: 1994.
• FLT / Touring: 1994-2006.

Installation recommendations

Before assembly, carefully clean the contact surfaces of the primary cover and remove any remains of the previous gasket without damaging the sealing surfaces.

Install the gasket properly aligned and tighten the bolts following the sequence and torque specified for the motorcycle. After assembly, check that there are no primary oil leaks.
