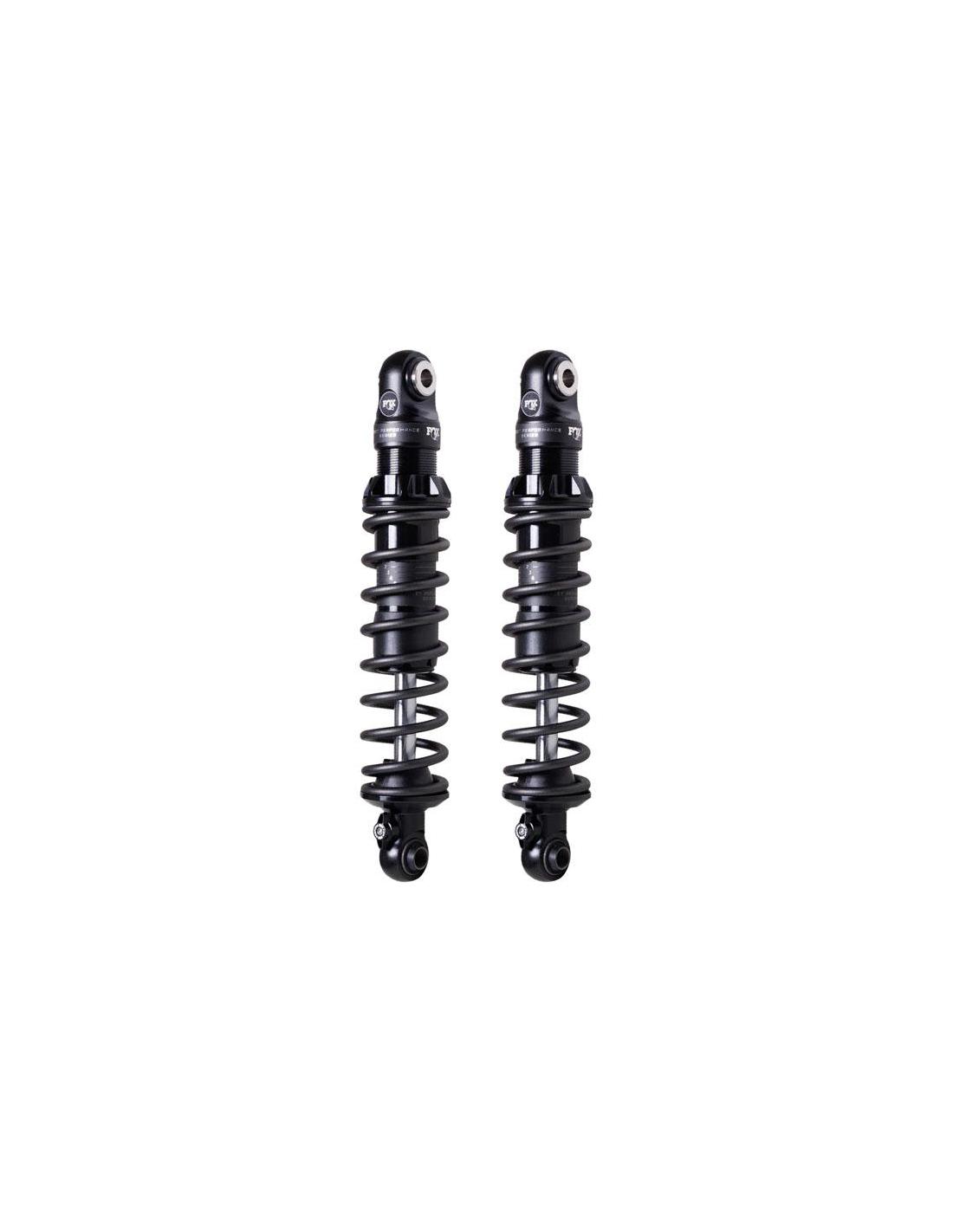

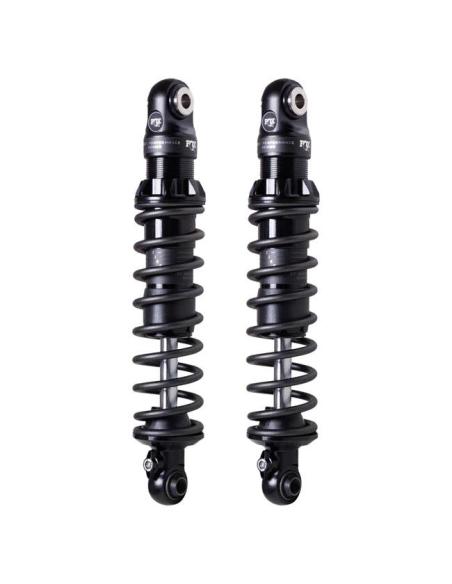

FOX IFP-QSR 14? HEAVY DUTY SHOCKS BLACK FLT/TOURING 1993–2024

Control with a loaded bike. The FOX IFP-QSR 14? Heavy Duty are designed for Touring riders who frequently travel with a passenger and luggage, offering HD linear rate springs to support the weight without sacrificing comfort. The mono-tube architecture with internal floating piston (IFP) separates nitrogen from oil to prevent aeration, maintaining consistent damping even on long routes or bumpy roads.

QSR Selector — 3 rebound positions

• 1. Soft: comfort on bumpy roads.
• 2. Medium: control/comfort balance for any road.
• 3. Firm: 'glued to the road' feel on smooth, winding sections.

The 6061-T6 aluminum body Ø1.5? with Type III hard anodizing dissipates heat better and reduces weight. The hard chrome Ø5/8? shaft features a low-friction super-finish that improves initial sensitivity. The preload comes with guide marks for quick sag adjustment.

Technical Specifications

Key Benefits

• Stability with a loaded bike and passenger.
• Consistent damping thanks to the IFP.
• Instant rebound adjustment (QSR) to tailor the response.

STD vs. HD

Heavy Duty (this model): for regular loads >109 kg (rider + passenger + luggage). For loads ?109 kg, choose the Standard Duty version.

Installation

• Adjust sag using the guide marks.
• Check torque settings and clearances with saddlebags/fenders.
