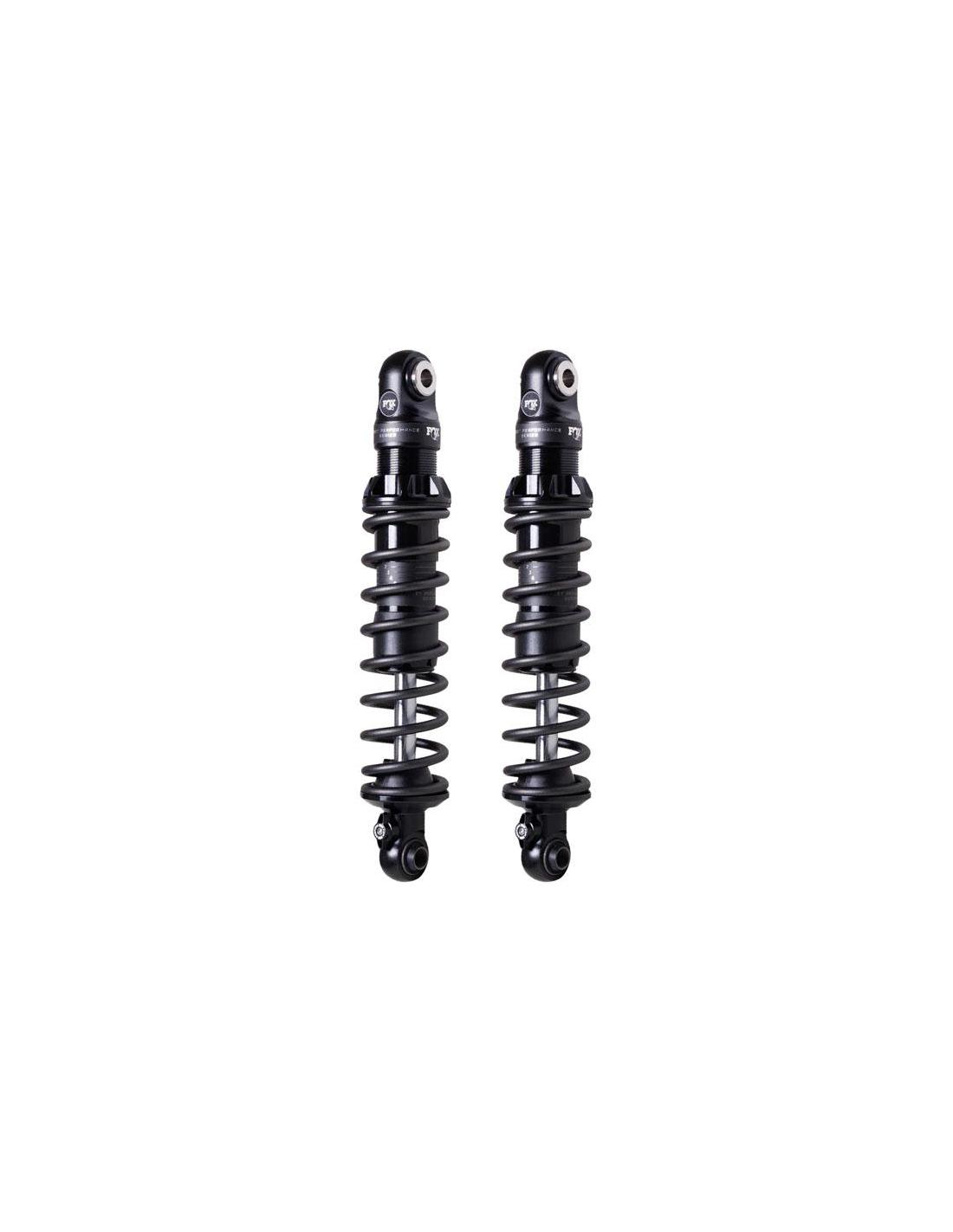

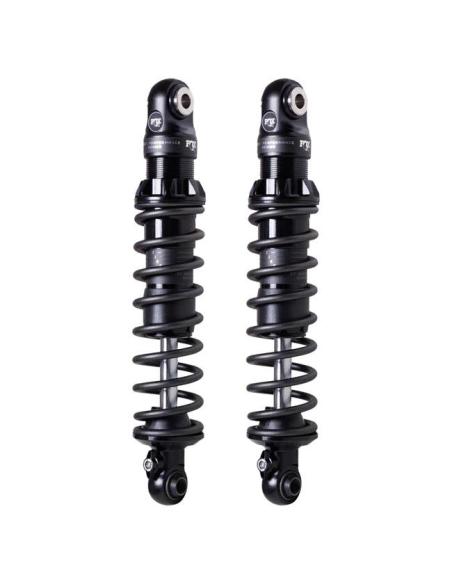

FOX IFP-QSR 14? STD DUTY BLACK SHOCK ABSORBERS FLT/TOURING 1993–2024

Comfort, Control, and Instant Adjustment. The FOX IFP-QSR 14? Standard Duty feature a 3-position Quick Switch Rebound (QSR) to instantly adjust the rebound: 1 Soft (bumps and rough roads), 2 Medium (general use control + comfort), and 3 Firm ('glued to the road' feel on smooth sections). The mono-tube architecture with internal floating piston (IFP) separates nitrogen from oil and prevents aeration, ensuring consistent damping even during extended use.

The hard anodized 6061-T6 aluminum body (Ø1.5?) dissipates heat better and reduces weight. The Ø5/8? rod, hard chromed and super-finished, minimizes friction and enhances overall durability. The linear rate spring (STD ?109 kg) provides consistent support throughout the travel, with adjustable preload and guide markings for quick and precise setup.

QSR Selector — 3 Rebound Modes

• 1. Soft: Comfort on bumpy surfaces.
• 2. Medium: Balance of control and comfort for any road.
• 3. Firm: Maximum support on smooth asphalt curves.

Technical Specifications

Key Benefits

• Stability and Comfort thanks to gas/oil separation.
• Quick Adjustment without complex tools (3 clicks).
• Consistent Support from linear spring and high-flow damping.

Spring Selection

Standard Duty (this model): typical load ?109 kg (rider + luggage). For regular use with passenger + luggage >109 kg, choose the Heavy Duty version.

Installation Notes

• Adjust sag using the guide markings before first use.
• Check torque settings and clearances with saddlebags/fenders.
